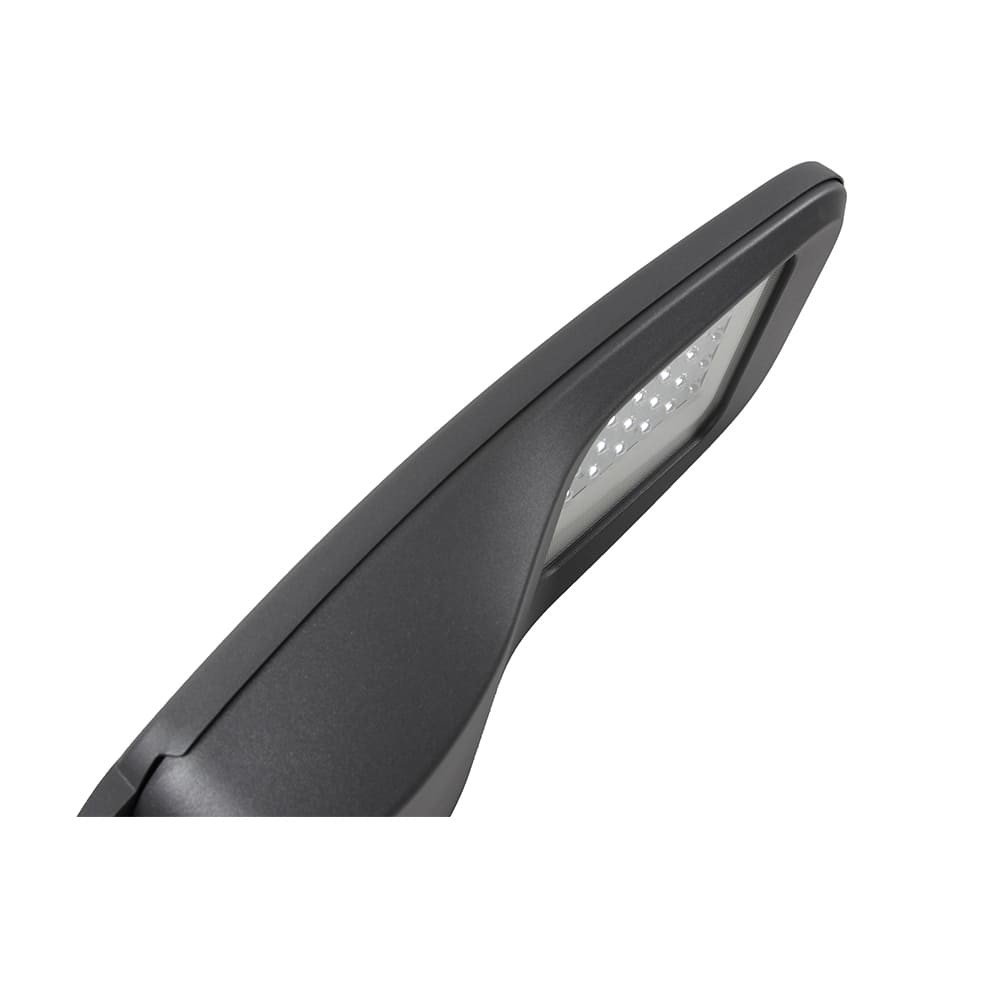

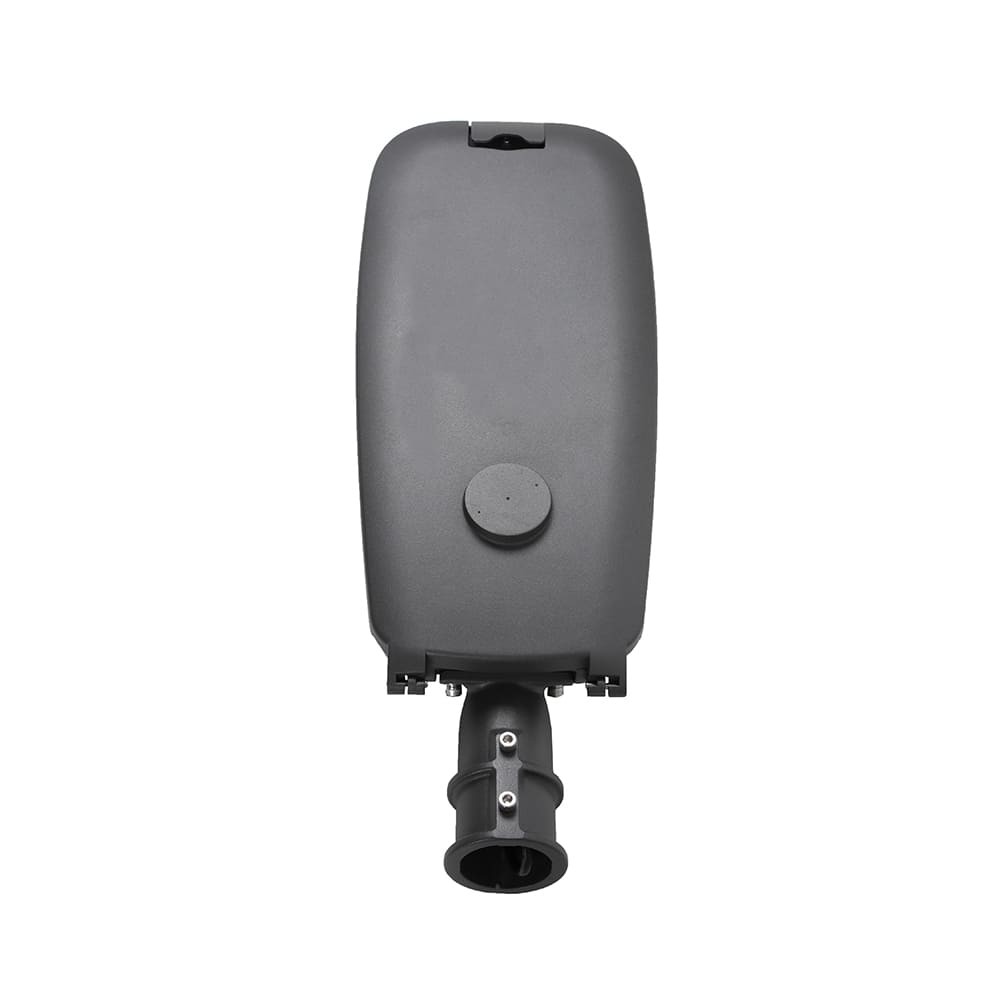

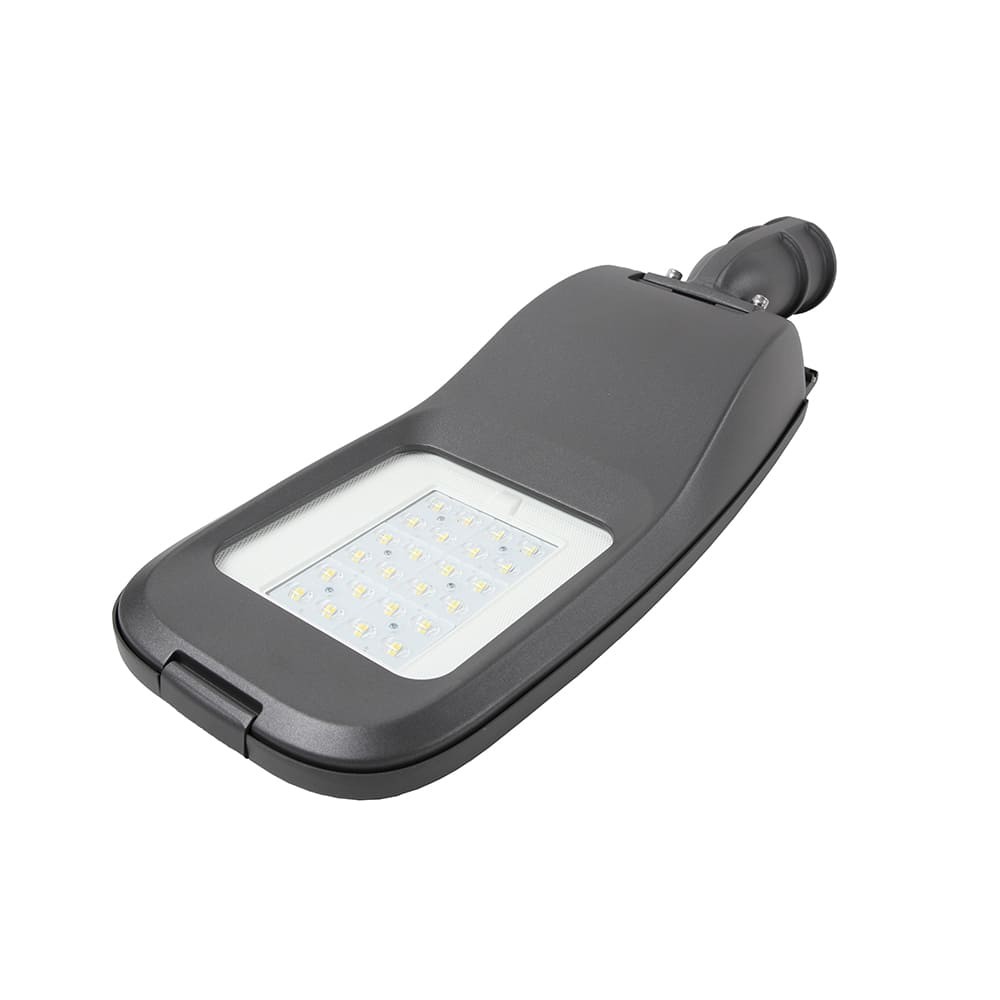

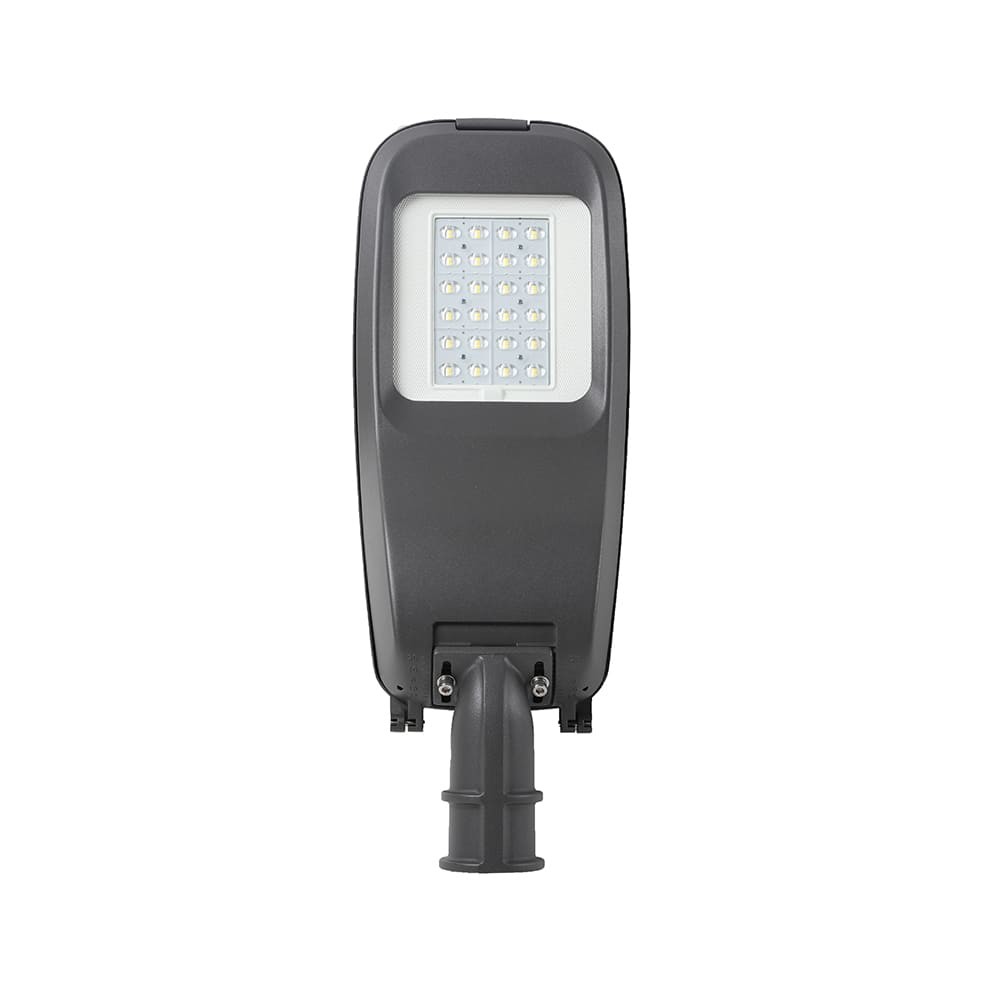

Led street light (PL-LD-062)

LED chip:Lumileds 3030SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:140LM/W±5%

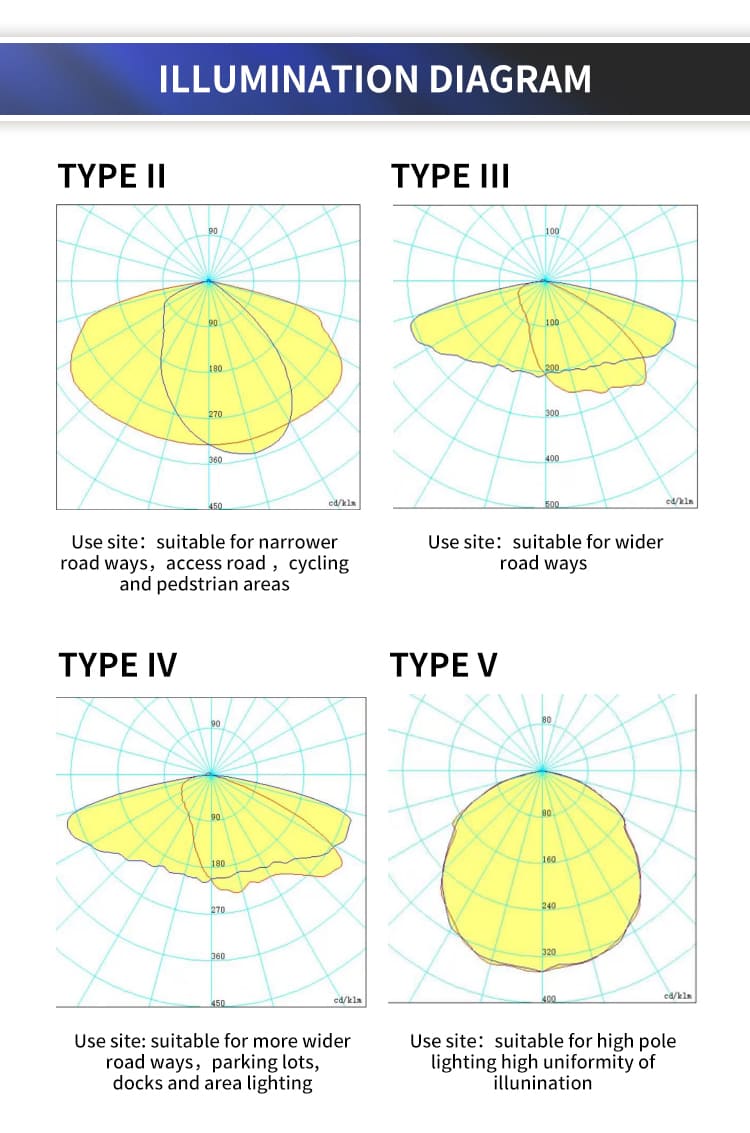

Beam angle :TYPEII,III,IV,V
LED driver :The constant current driver
Surge protection:6KV10KV/20KV as customers' rerquirement
Waterproof and IK:IP66&IK09

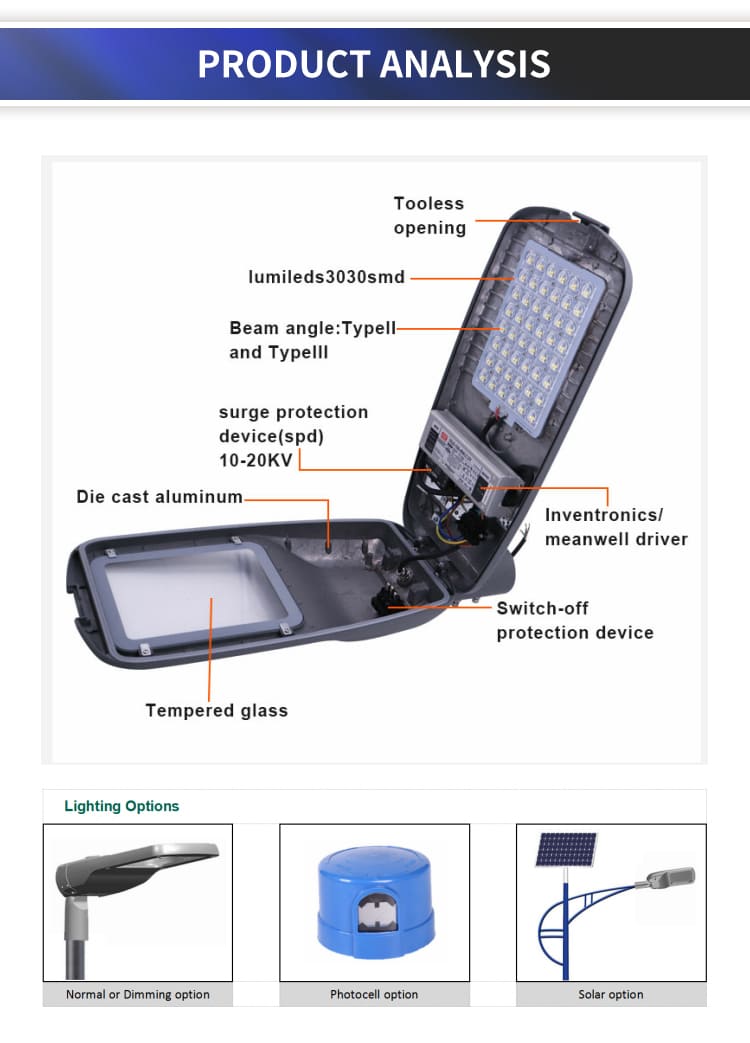

Housing material:Die-cast aluminum +tempered glass
Storage temperature:-40℃~85℃ 10%~90% H.R
Work temperature:-40℃~50℃  20%~90% H.R
lamppost diameter :60mm
Lifespan (L70B10) :100000 hours

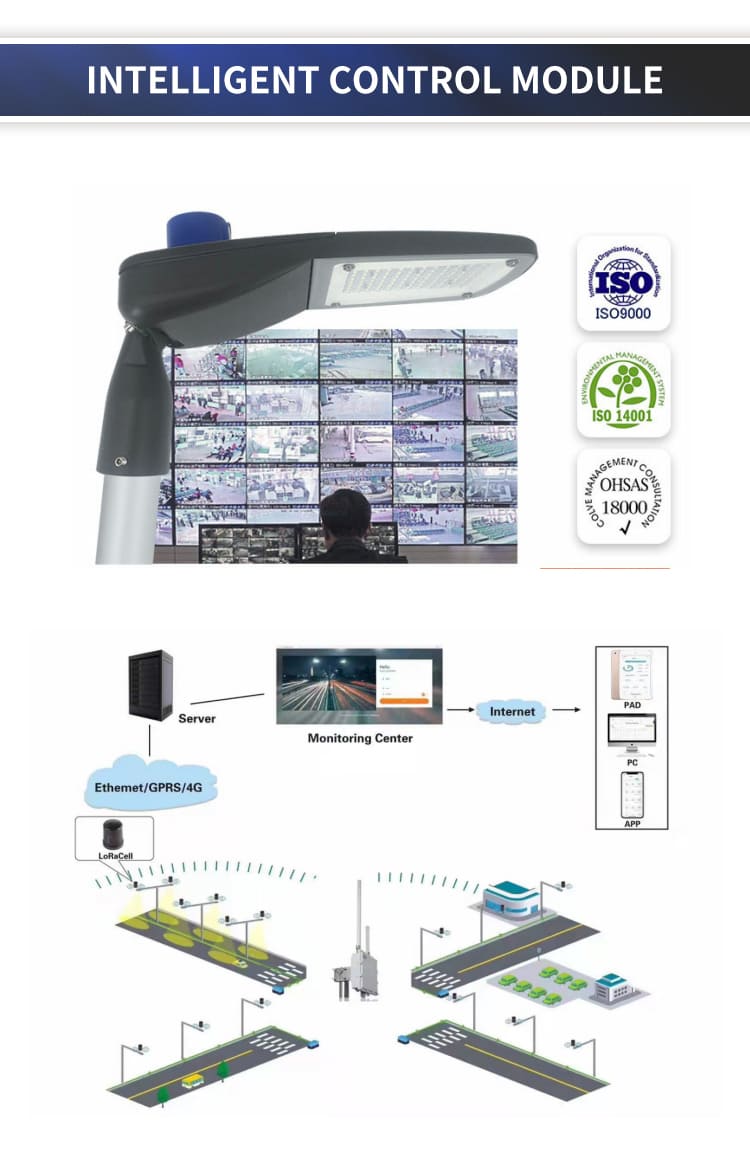

Control mode:Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI
 Certificates:TUV -CE(EMC.LVD) ROHS SAA CB ENEC IK09 IP66  LM-80 LM-79 TM-21
warranty:5-10 years

EMAIL

High brightness Lighting Hot Sale Cheap Price LED Street Light

Model

PL-LD-062

Input Voltage

100-277V/305VAC

Power

30W 40W 50W 60W 70W 80W

90W 100W 120W 150W

180W 200W

240W

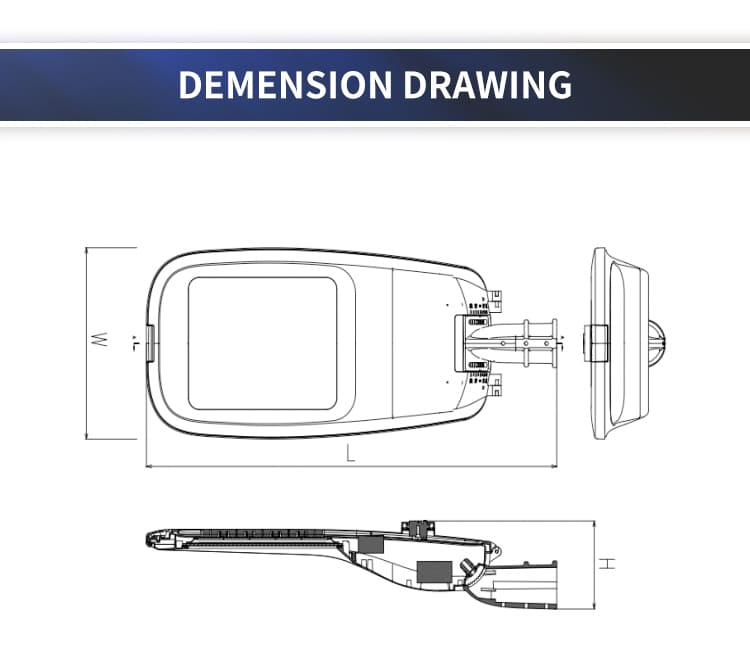

Size(mm)

627*249*147

723*299*152

785*347*156

785*347*156

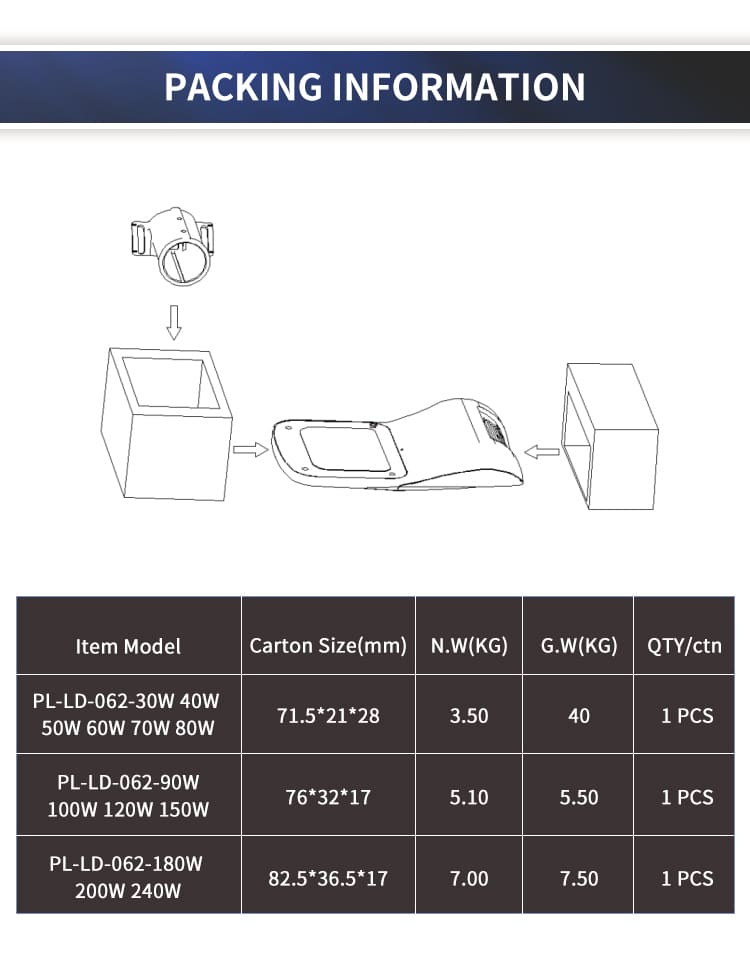

Net weight(KG)

3.50

3.50

5.10

7.00

LED chip

Lumileds 3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

140LM/W±5%

Beam angle

TYPEII,III,IV,V

LED driver

The constant current driver

Surge protection

6KV10KV/20KV as customers' rerquirement

Waterproof and IK

IP66&IK09

Housing material

Die-cast aluminum +tempered glass

Storage temperature

-40℃~85℃ 10%~90% H.R

Work temperature

-40℃~50℃  20%~90% H.R

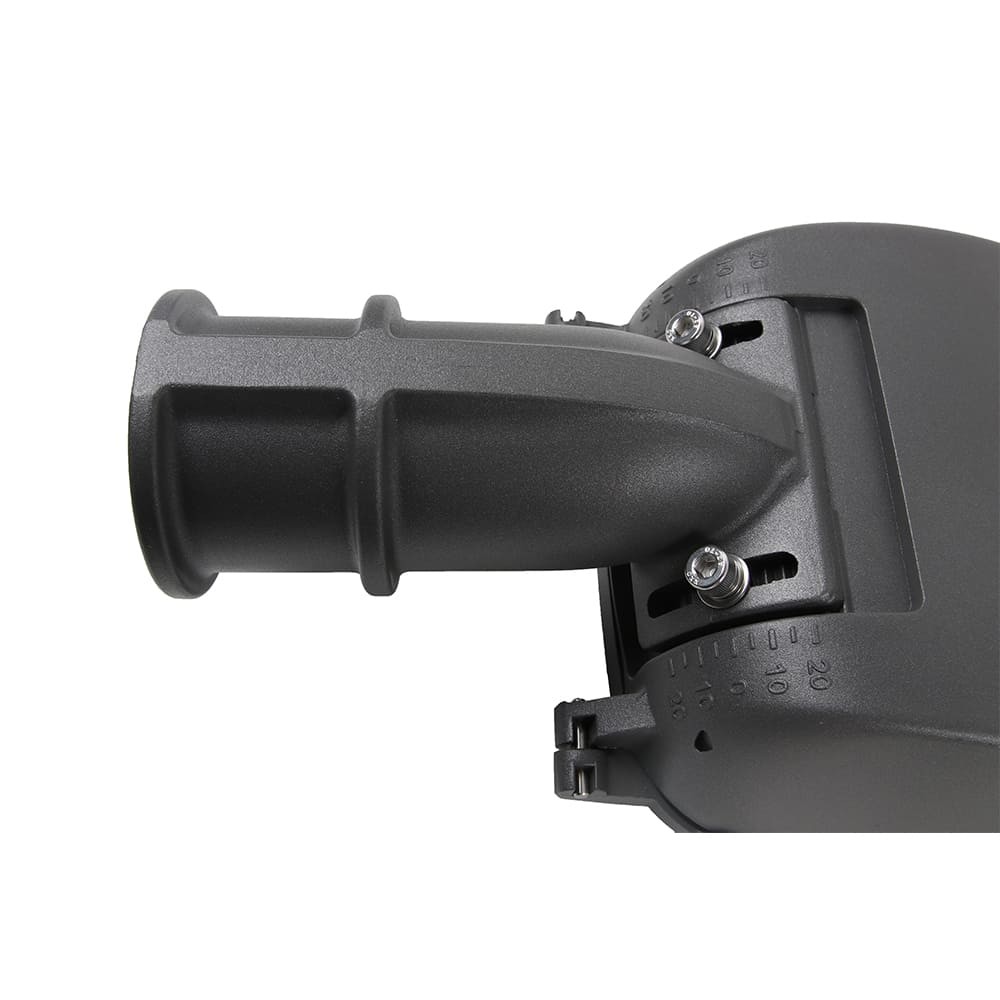

lamppost diameter

60mm

Lifespan

(L70B10) 100000 hours

Control mode

Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI

 Certificates

TUV -CE(EMC.LVD) ROHS SAA CB ENEC IK09 IP66  LM-80 LM-79 TM-21

warranty

5-10 years

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
