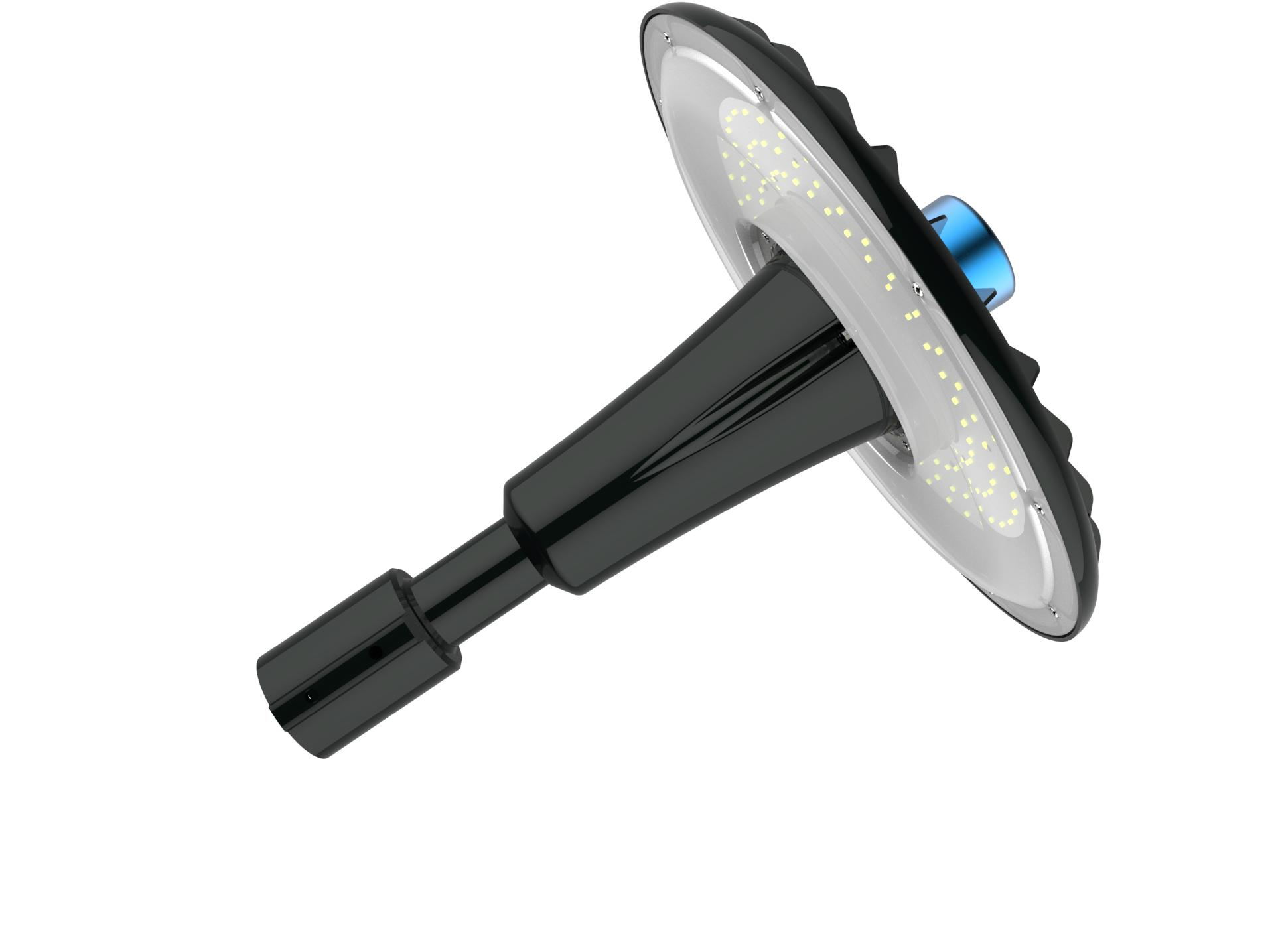

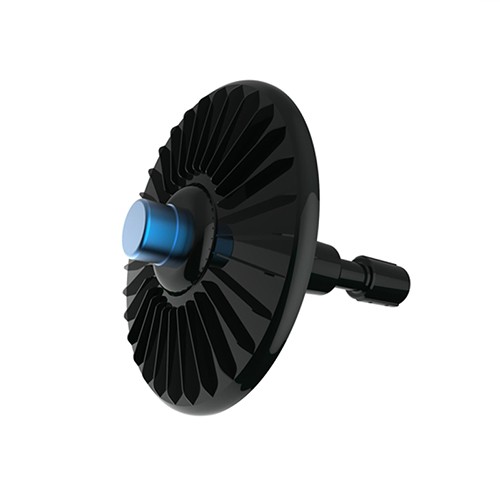

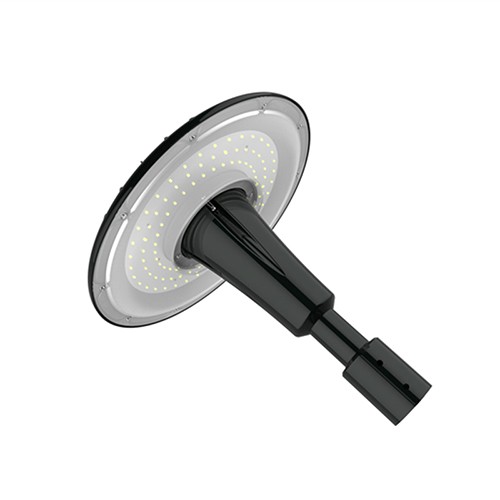

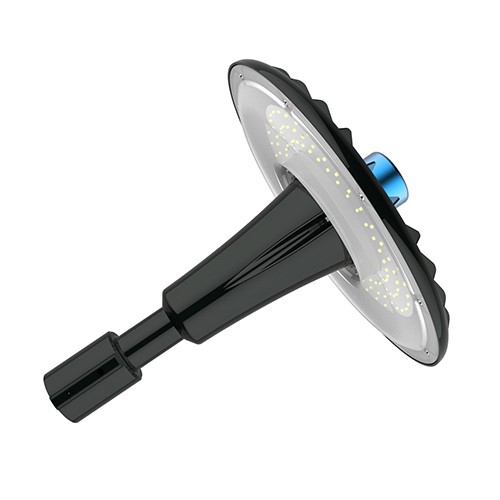

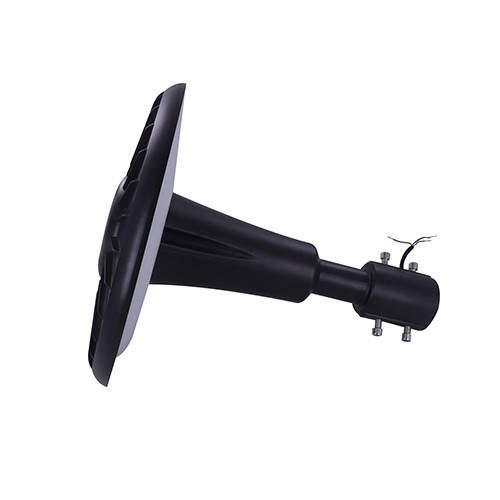

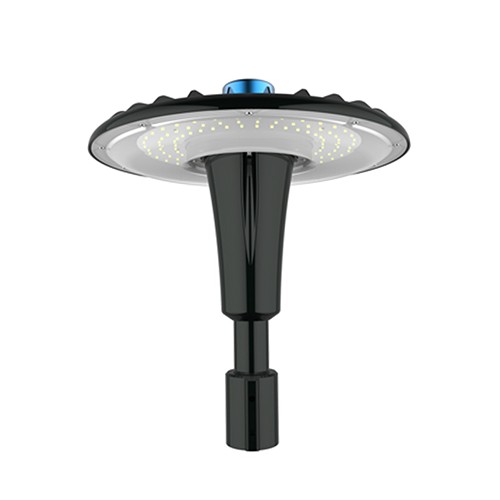

Led garden light (PL-GL-007)

Input Votage:AC90V-305V
Material: die-cast aluminium + toughed glass
IP grade：IP66 Led chip:Lumileds 3030smd
Working temperature:-40-50°C
Beam angle: 120°
luminous efficiency：130LM/W±5% PF：> 0.95
CRI: Ra>70/80
CCT：2700-6500K
Life：50000H

Post Top Lamp Stand Alone IP65 Waterproof Outdoor LED Post Top Light


PL-GL007 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply,

yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.
LED
Lumileds 3030&5050
PL-GL007
30W-150W

Light Data-Sheet
Model No	PL-GL007
Size	D400*508mm	D446*508mm
Holder	60mm
Watts	30W-100W	120W-150W
Luminous	120lm/W	120lm/W
LED Qty	128pcs SMD3030	160pcs SMD3030
Material	Aluminum, LED Chip, PC Cover, Toughened Glass, Screw
Kelvin	3000K, 4000K, 5000K, 6000K or Specified Color
LED option	SMD3030, SMD5050 (Note: normal are SMD3030 chip)
CRI	90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens Angle	120degree
Driver option	Inventronics, Meanwell or Specified brand (Note: normal are Meanwell driver)
Input Voltage	200-240Vac (Meanwell ELG), 90-305Vac (Meanwell HLG); 50/60Hz; PF>0.95
Lifetime	>50, 000hours
IP Level	IP66
Lighting Way	AC Normal Lighting, AC Dimming Lighting, Photocell
Certificate	ENEC, CB, SAA, CE, RoHS, IP66, IK09 etc.
Package	30-100W	120W-150W
	565432165mm/1PC	609458155mm/1PC
N.W	5.30KG	5.90KG
G.W	6.40KG	7.20KG

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
