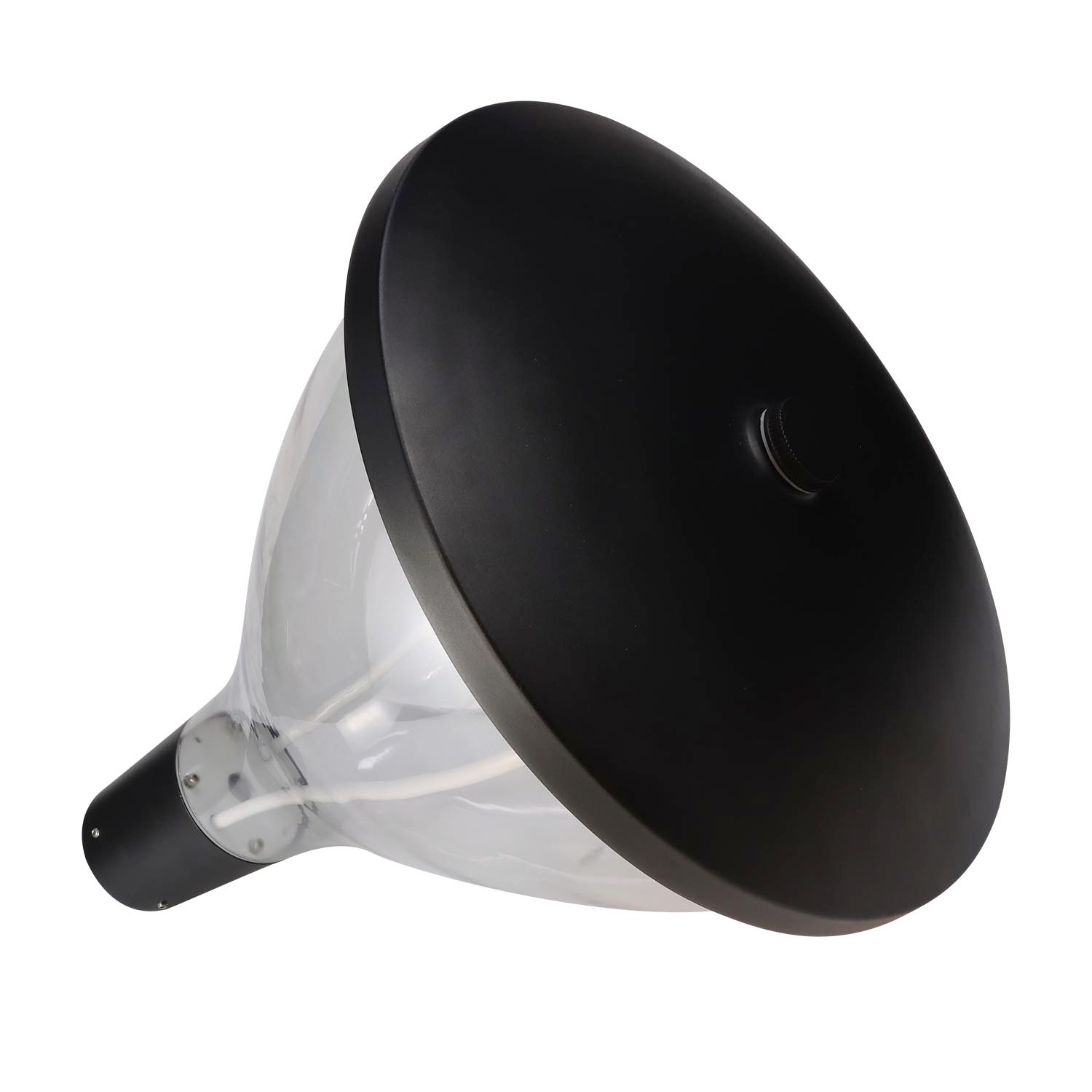

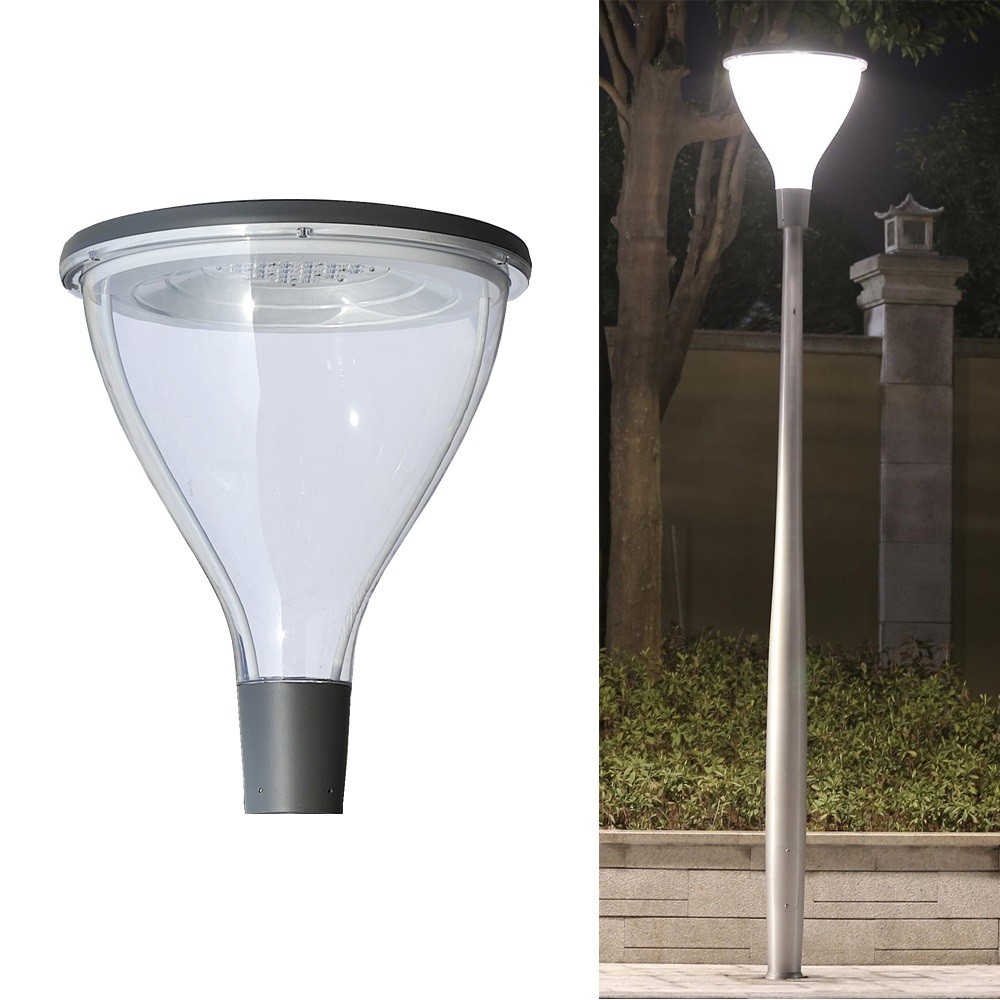

Led garden light (PL-GL-008)

Input Votage:AC90V-305V
Material: die-cast aluminium + toughed glass
IP grade：IP66 Led chip:CREE
Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency：100LM/W±5% PF：> 0.95
CRI: Ra>70/80
CCT：2700-6500K
Life：50000H

Peonylighting Modern IP65 Aluminum Outdoor Grey LED Post Top Light Waterproof LED Gar

PL-GL-008 海报 (1).jpg

PL-GL008 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply,

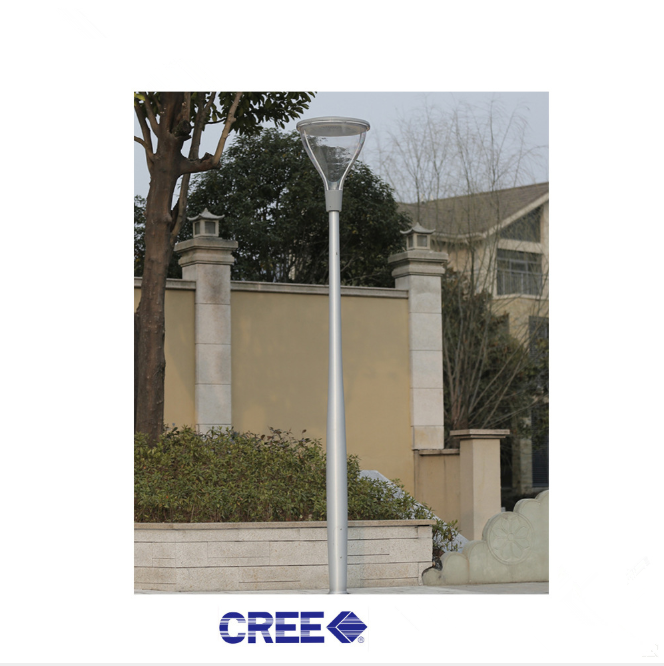

yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.
LED
CREE
PL-GL008

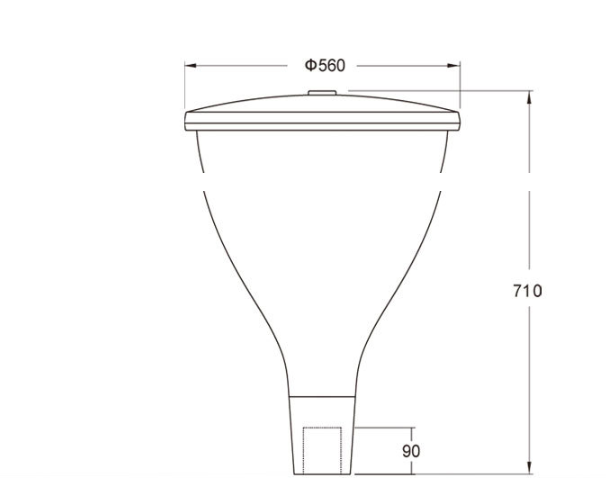

D560*H710mm
35W-60W

Light Data-Sheet
Model No	PL-GL008
Size	D480*525mm
Holder	60mm or 76mm
Watts	35W	45W	55W	60W
Luminous	100lm/W	100lm/W	100lm/W	100lm/W

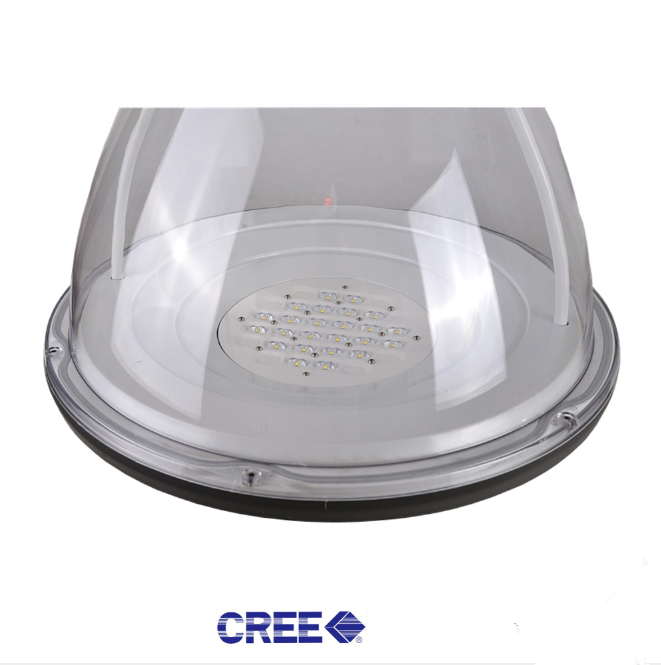

LED Qty	16pcs CREE XTE	20pcs CREE XTE	24pcs CREE XTE	28pcs CREE XTE

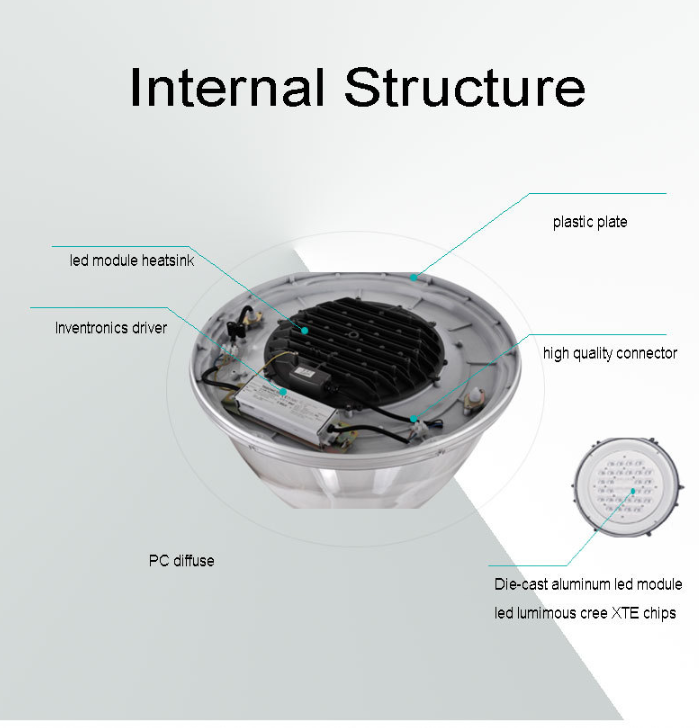

Material	Aluminum, LED Chip, Lens, PC Cover, Screw
Kelvin	3000K, 4000K, 5000K, 6000K or Specified Color
LED option	CREE
CRI	90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens Angle	TI,TI,TIII degree

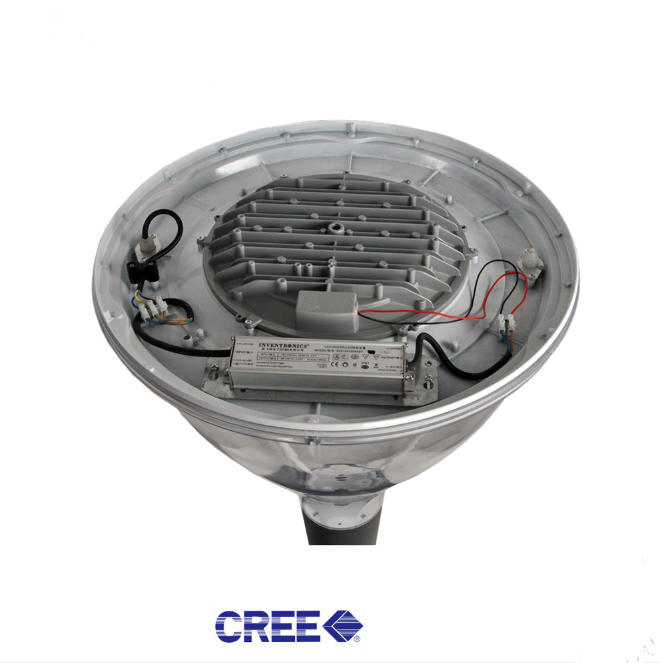

Driver option	Inventronics, Meanwell or Specified brand (Note: normal are Meanwell driver)
Input Voltage	200-240Vac (Meanwell ELG), 90-305Vac (Inventronics); 50/60Hz; PF>0.95
Lifetime	>50, 000 hours
IP Level	IP66
Lighting Way	AC Normal Lighting, AC Dimming Lighting
Certificate	ENEC, CB, SAA, CE, RoHS, IP66, IK09 etc.
Package	35W 45W 55W 60W
	605605750mm/1PC
N.W	9.2KG
G.W	11.5KG

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
