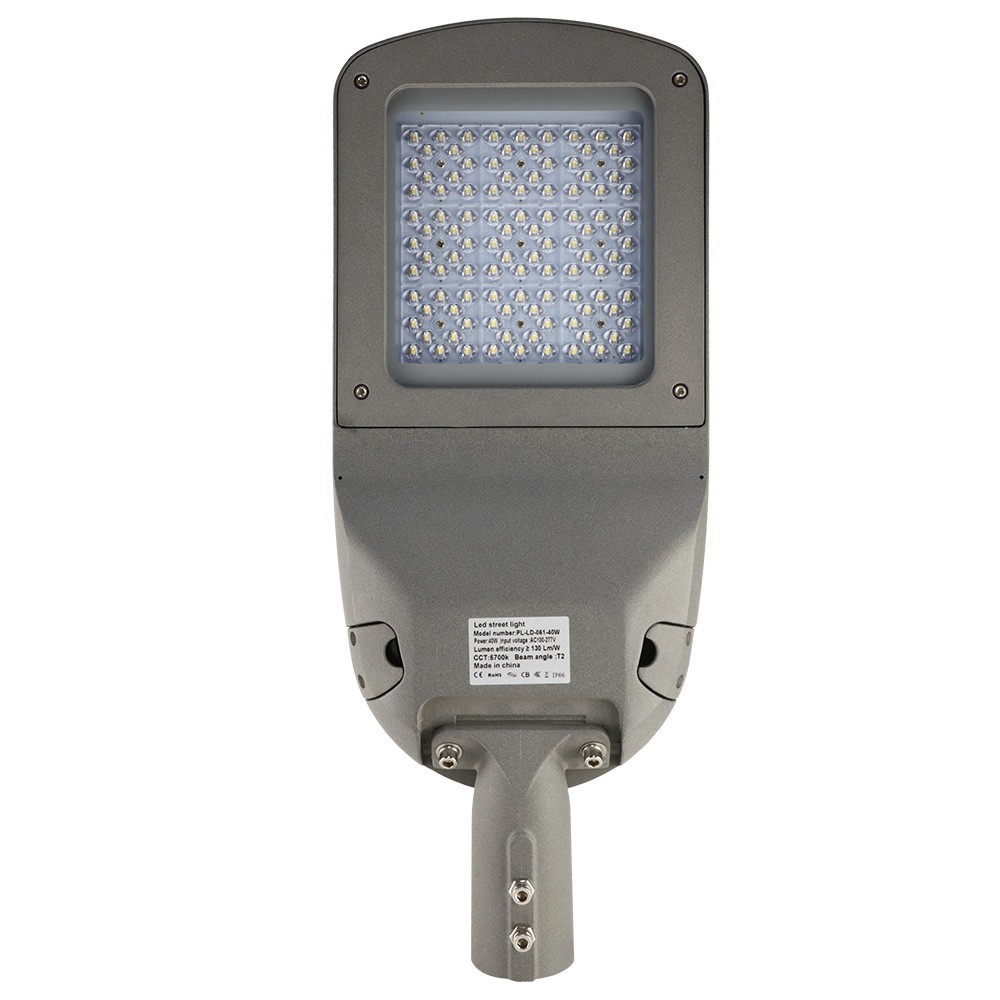

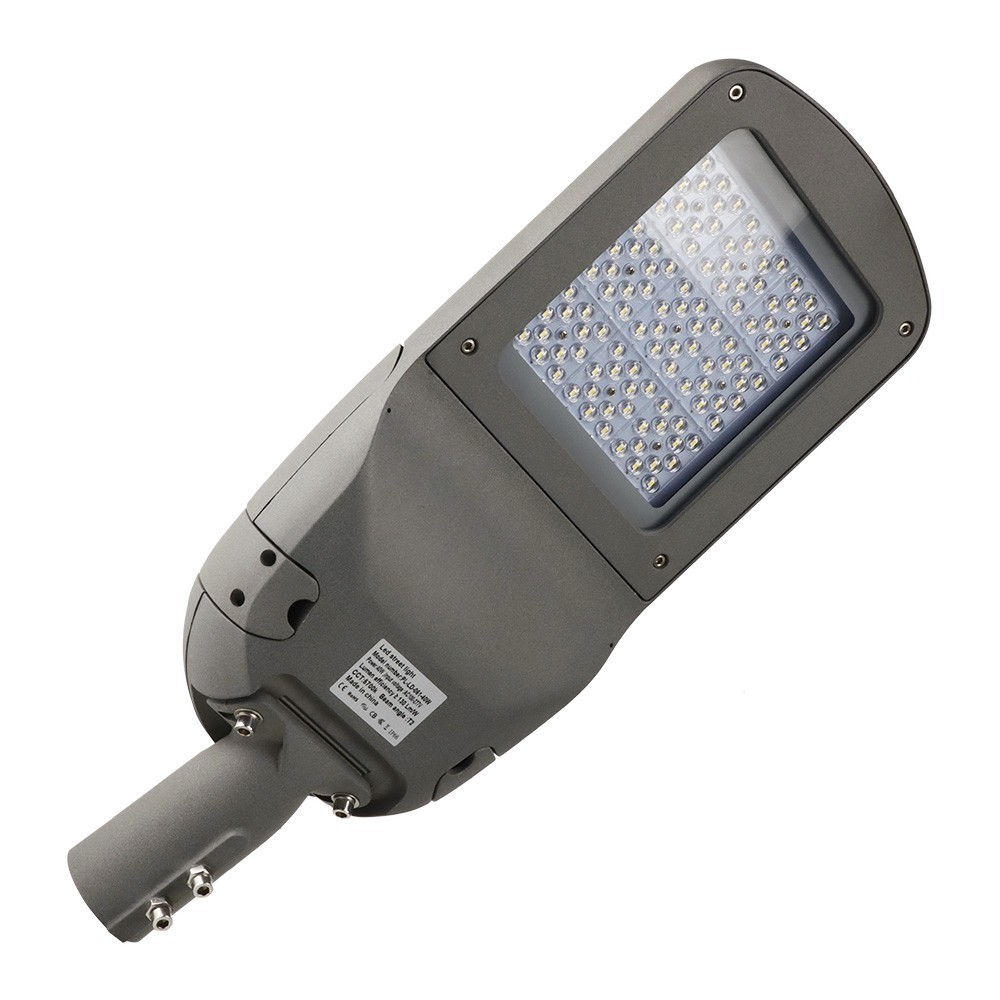

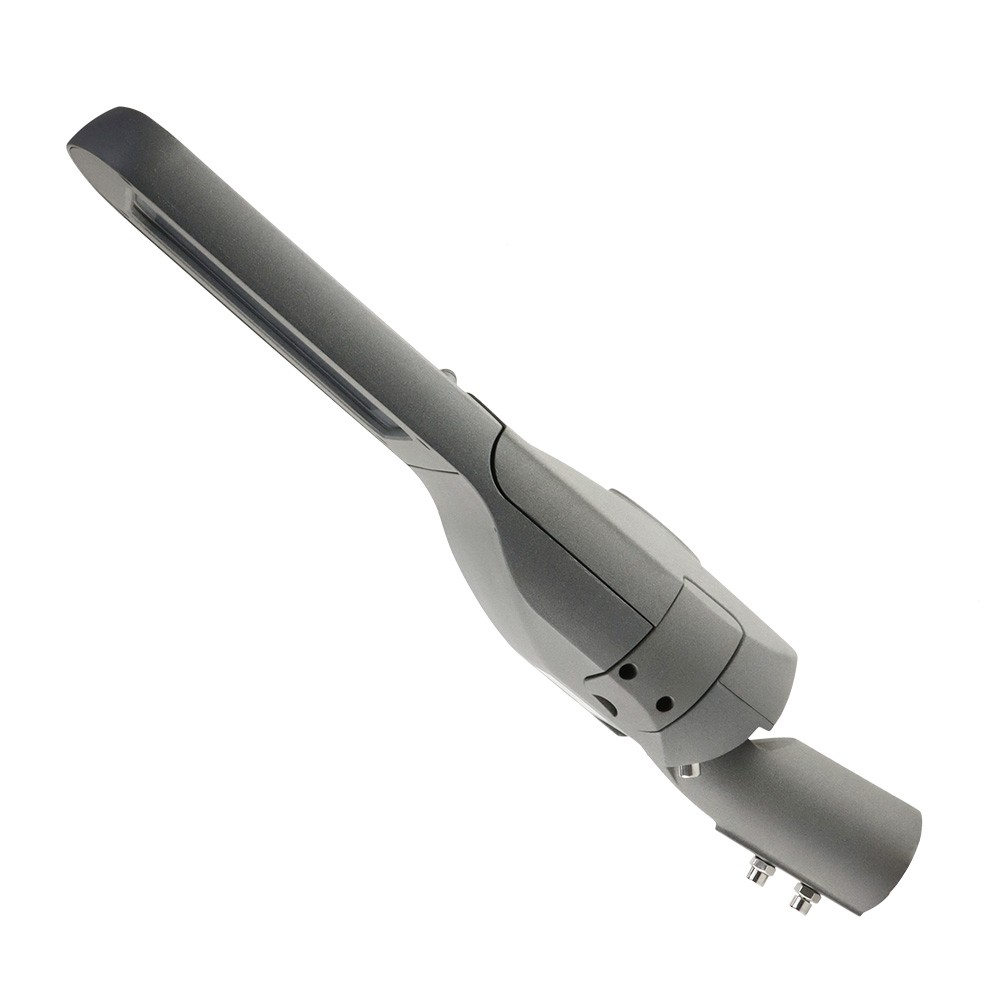

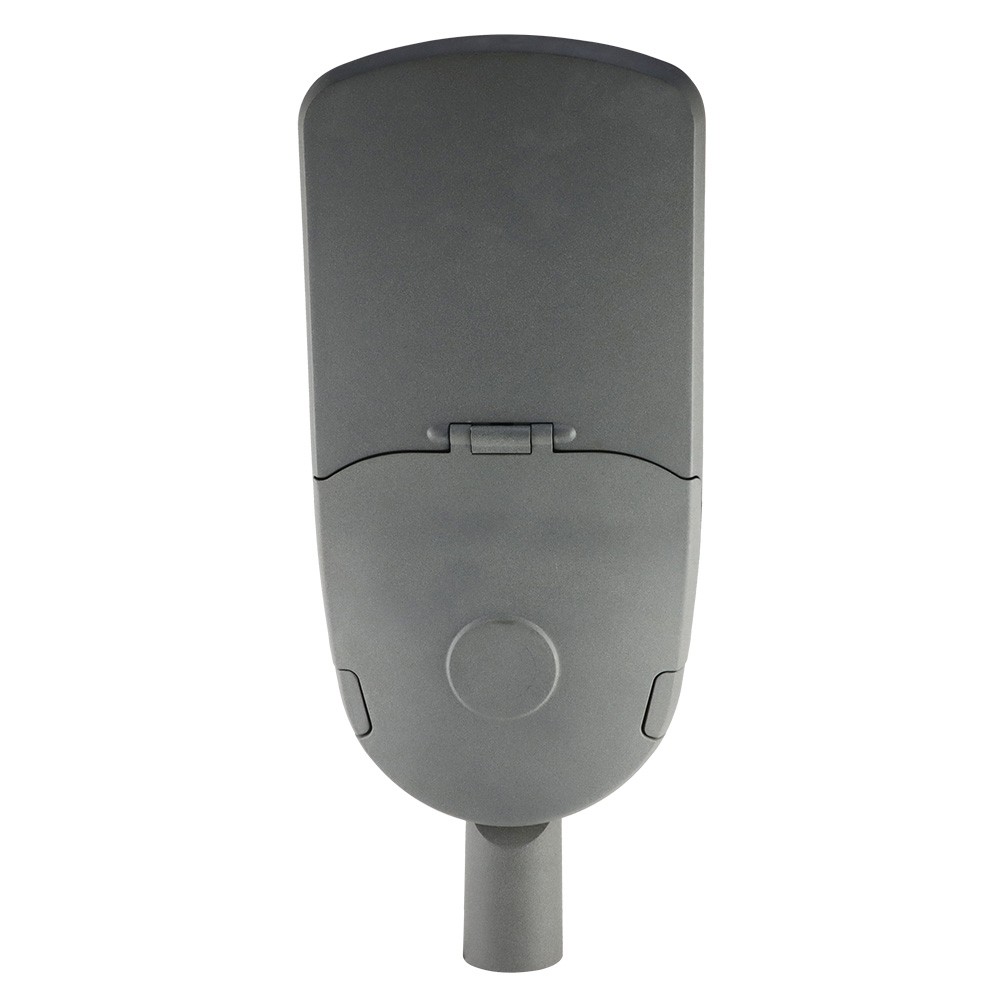

Led Street Light (PL-LD-061)

LED chip:Lumileds  3030SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:150LM/W±5%
Beam angle :TYPEII /TYPEIII
LED driver brand:HONTEK ,Inventronics , Meanwell driver  series

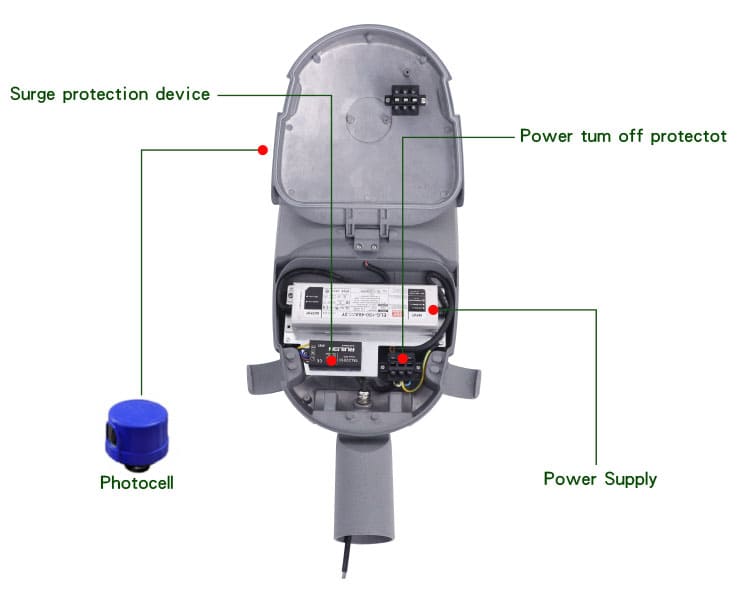

Surge protection:4-6KV/10KV/20KV as customers' rerquirement
lamppost diameter :48mm/52mm/60mm/78mm
Waterproof and IK:IP66&IK09
Housing material:Die-cast  aluminum +tempered glass
Storage temperature -40℃~85℃ 10%~90% H.R
Work temperature:-40℃~50℃  20%~90% H.R
Lifespan:(L80B10) 100000 hours
warranty:5 -8years

EMAIL

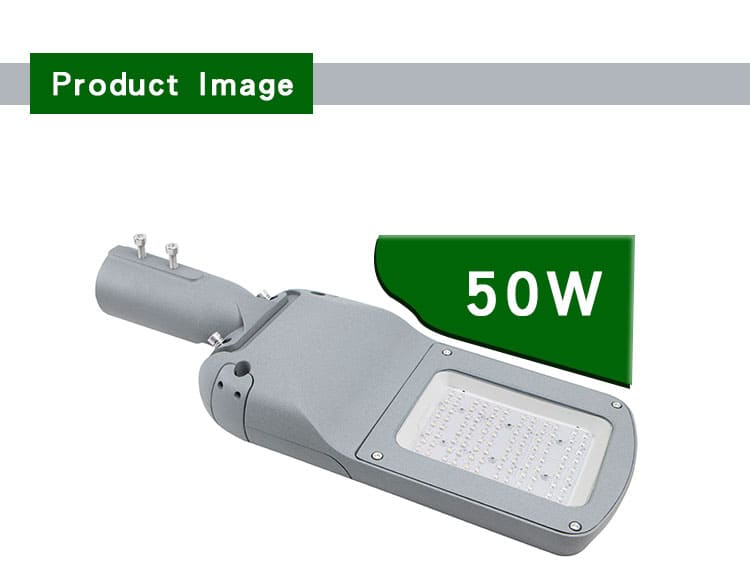

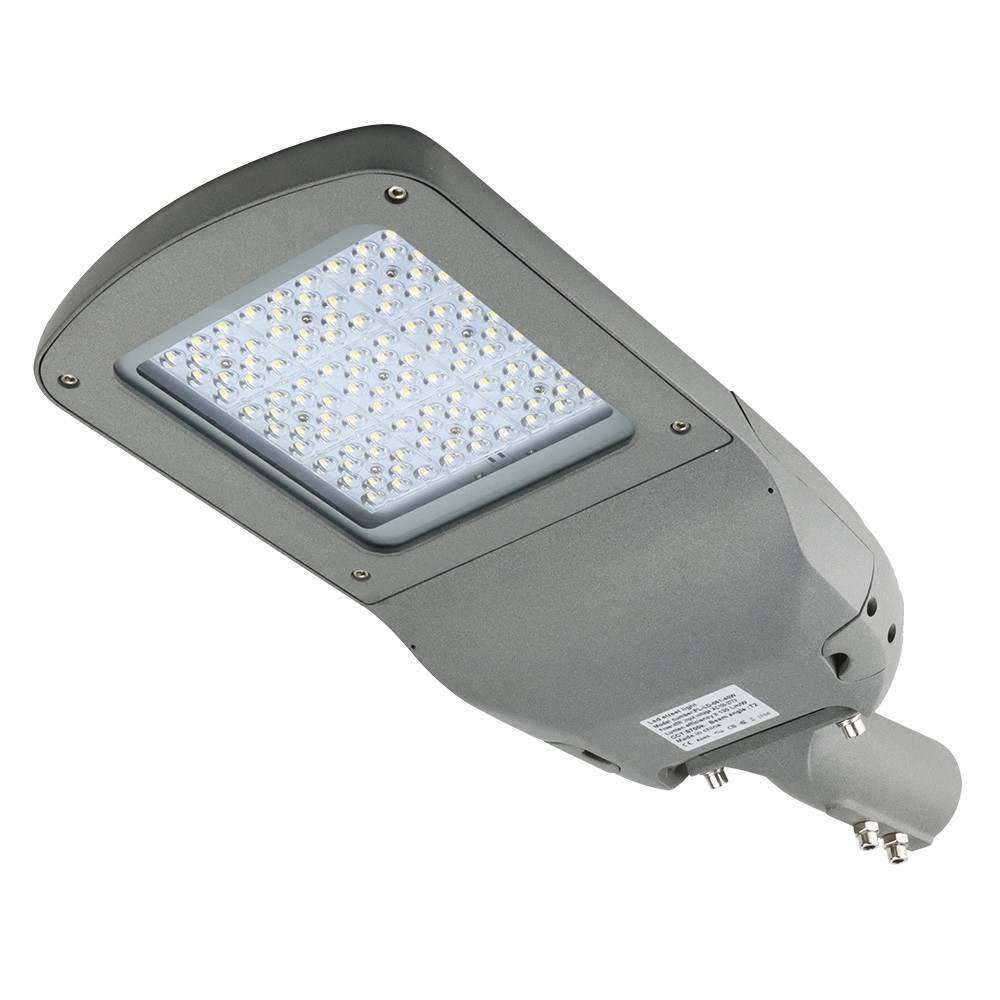

ENEC CB SAA listed  IP66 waterproof aluminum 50 watt led street light

LED Street light  Specifications

Model

PL-LD-061

PL-LD-061

PL-LD-061

PL-LD-061

Input Voltage

100-305 V AC

Power

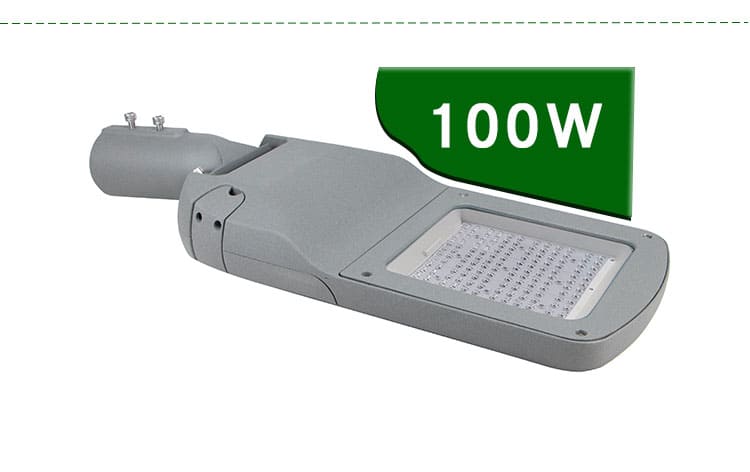

30W 40W 50W 60W

70W 80W 90W 100W

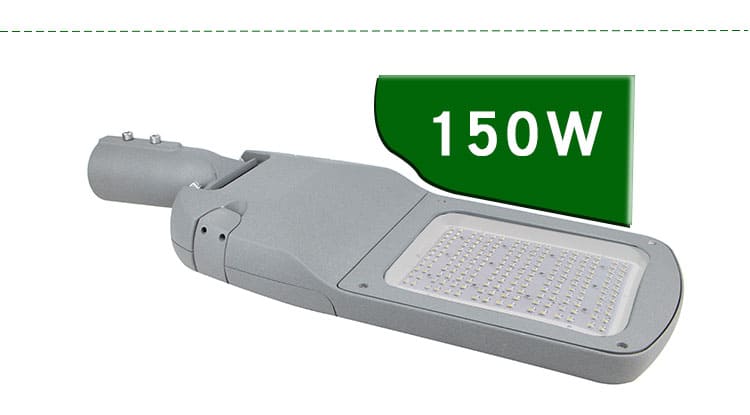

120W 150W

180W 200W

Size(mm)

535*200*120mm

620*235*125mm

690*260*130mm

810*320*135mm

Net weight

4.00kg

4.800kg

6..05KG



8.35KG



1PCS/CTN,ctn size(cm)

55*22*13.5cm

66*27.5*15.5cm

72.5*30*15.5cm

81*38*13.5cm

LED chip

Lumileds  3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

150LM/W±5%

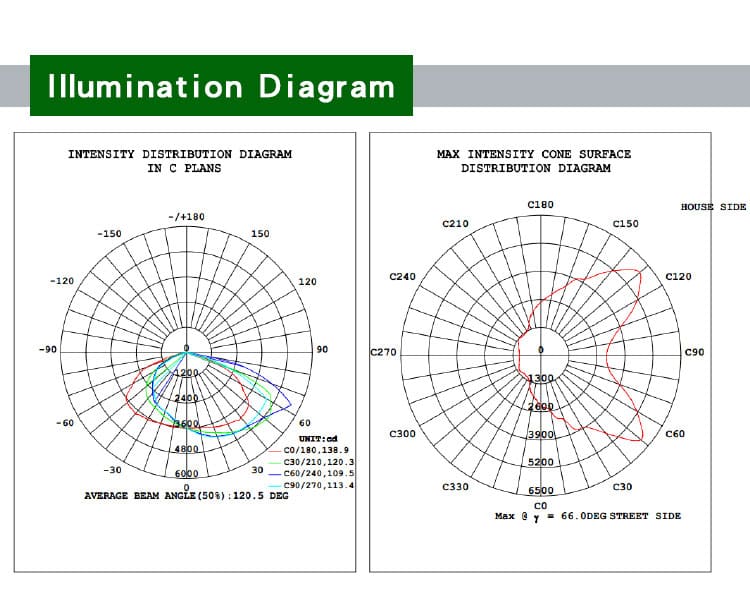

Beam angle

TYPEI ,II,III,IV,V

LED driver brand

HONTEK ,Inventronics , Meanwell driver  series

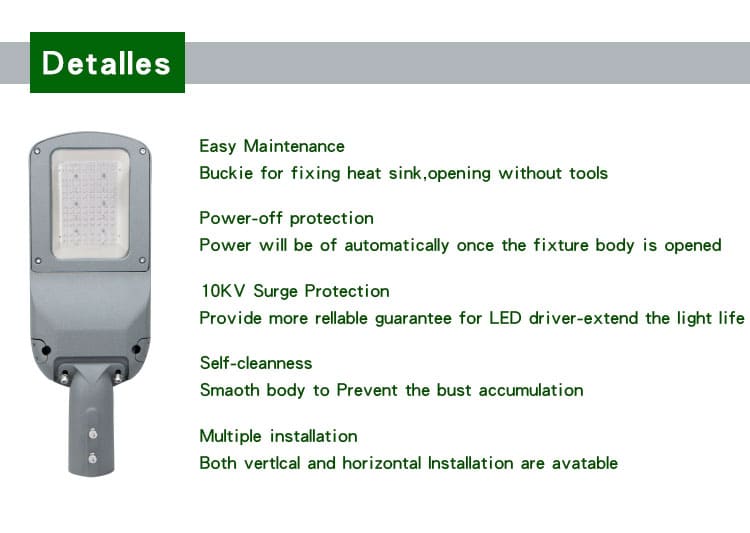

Surge protection

6KV/10KV/20KV as customers' rerquirement

Waterproof and IK

IP66&IK09

Housing material

Die-cast  aluminum +tempered glass

Storage temperature

-40℃~85℃ 10%~90% H.R

Work temperature

-40℃~50℃  20%~90% H.R

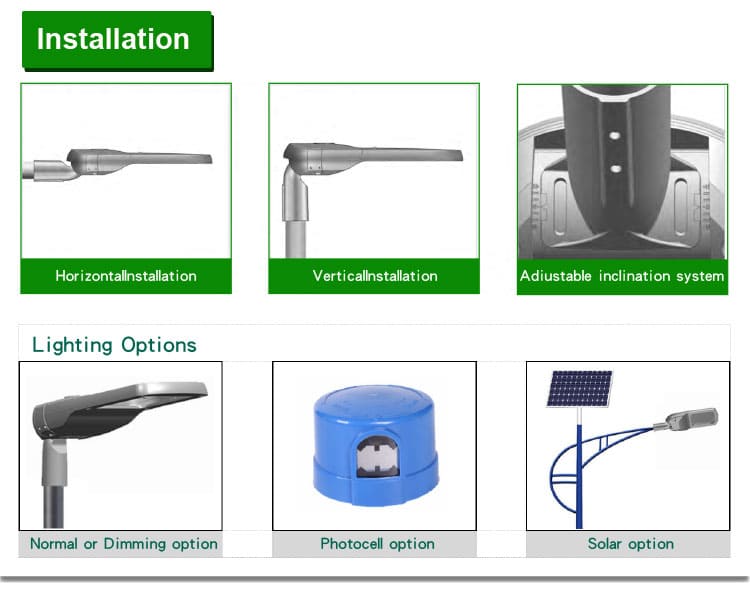

lamppost diameter

48mm/52mm/60mm/78mm

Lifespan

(L80B10) 100000 hours

warranty

5 -8years

FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions,

please feel free to contact us, you will get reply at the first time
