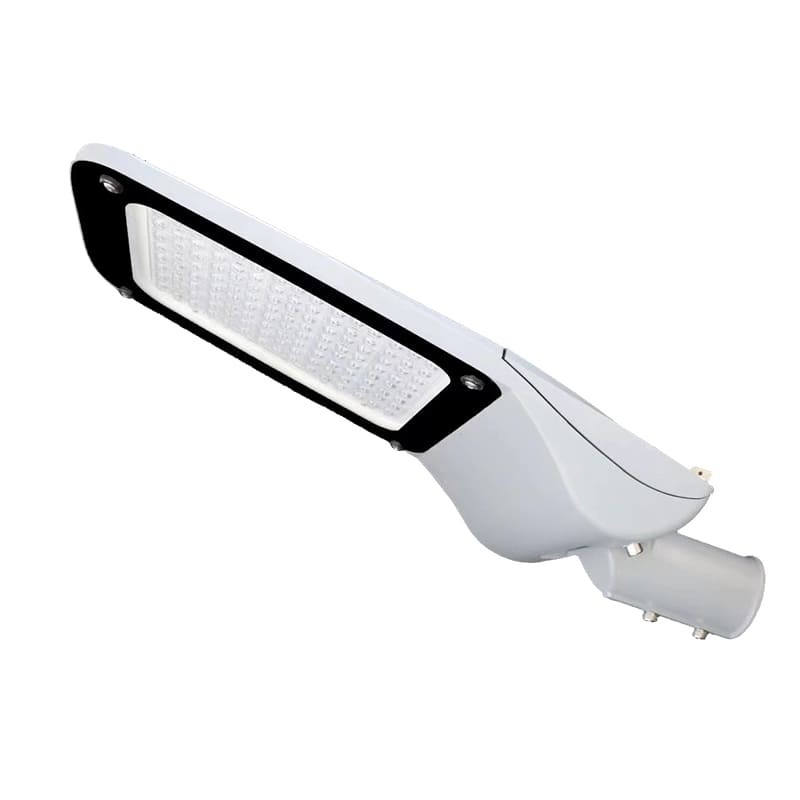

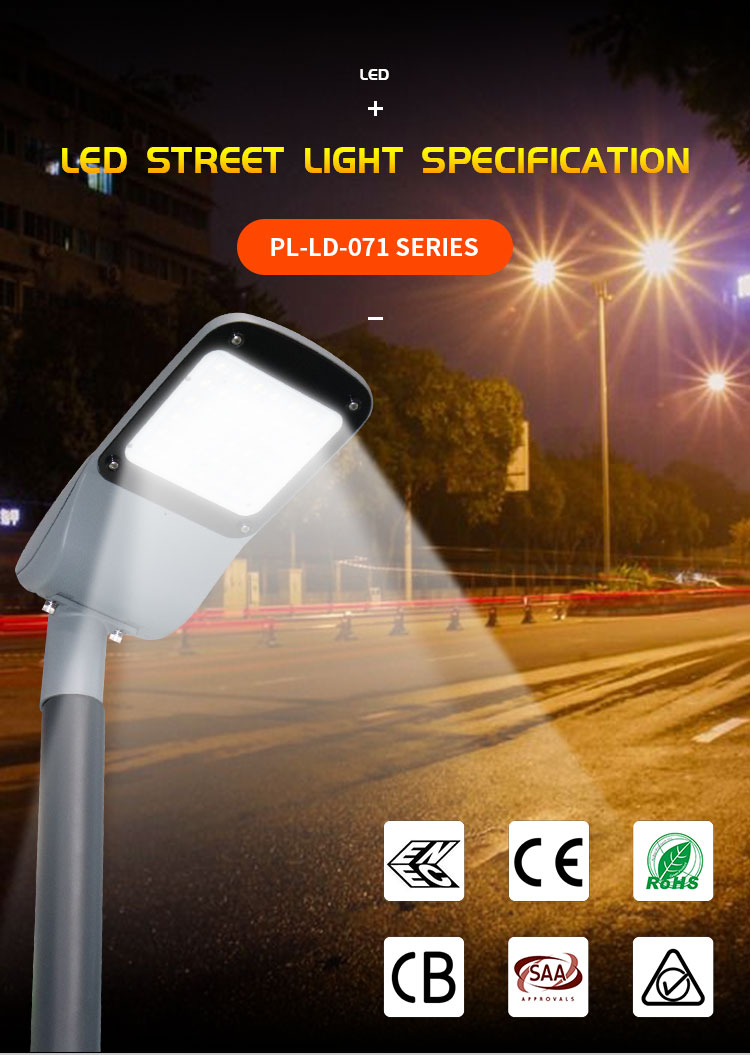

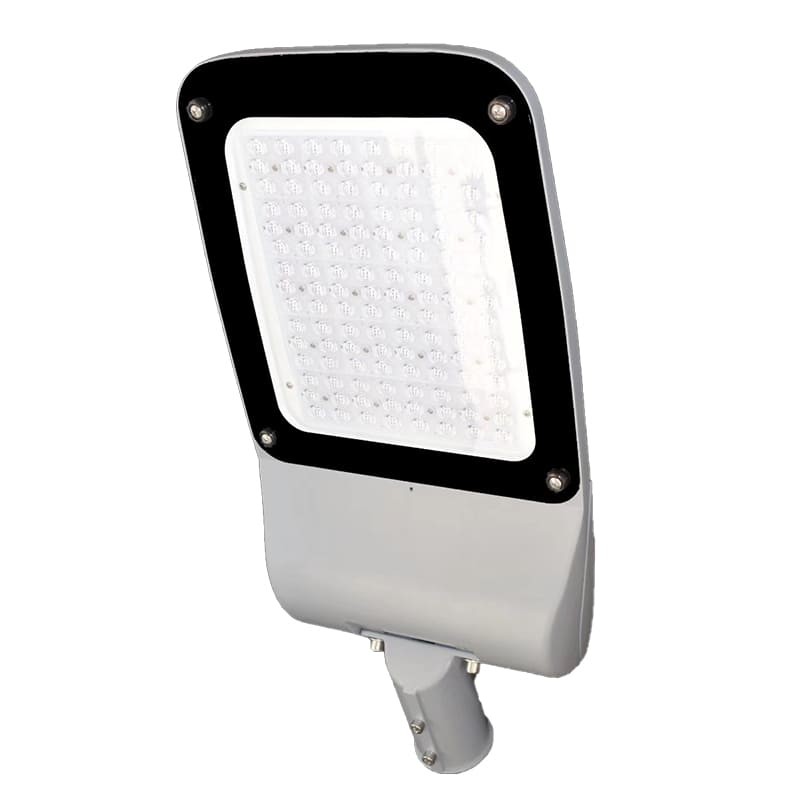

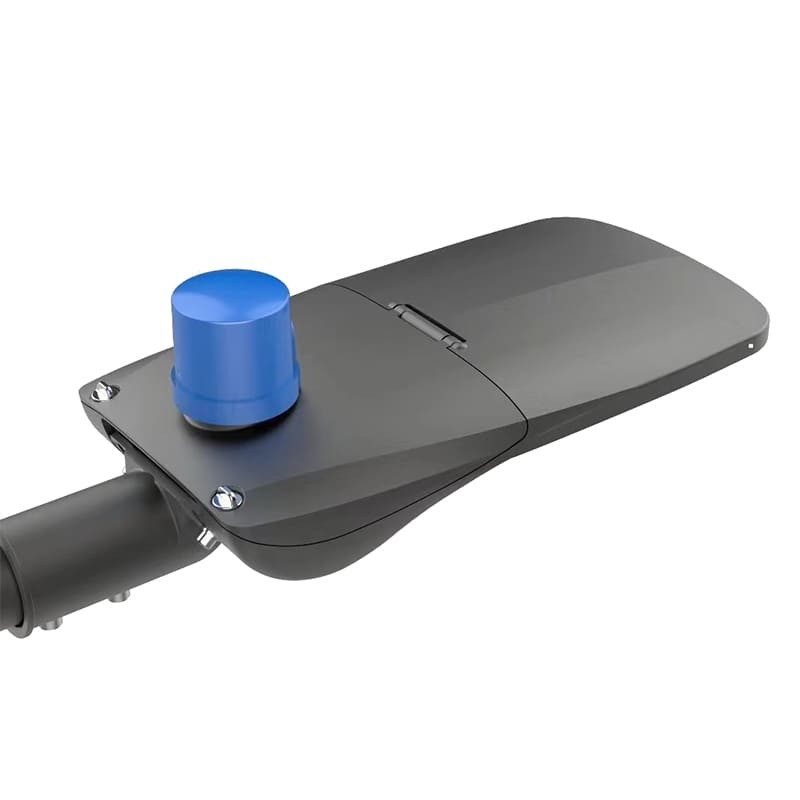

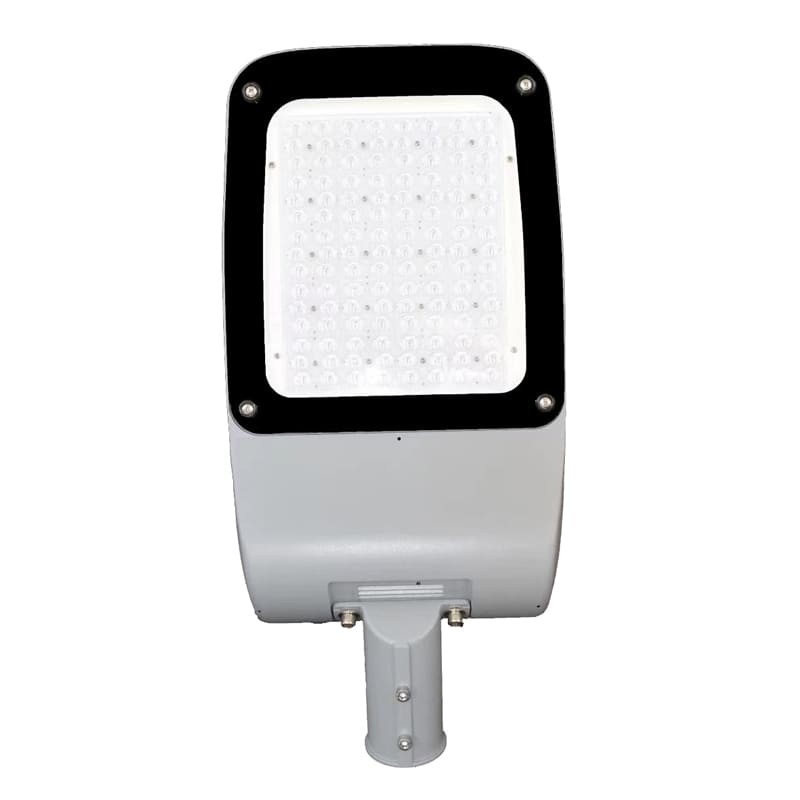

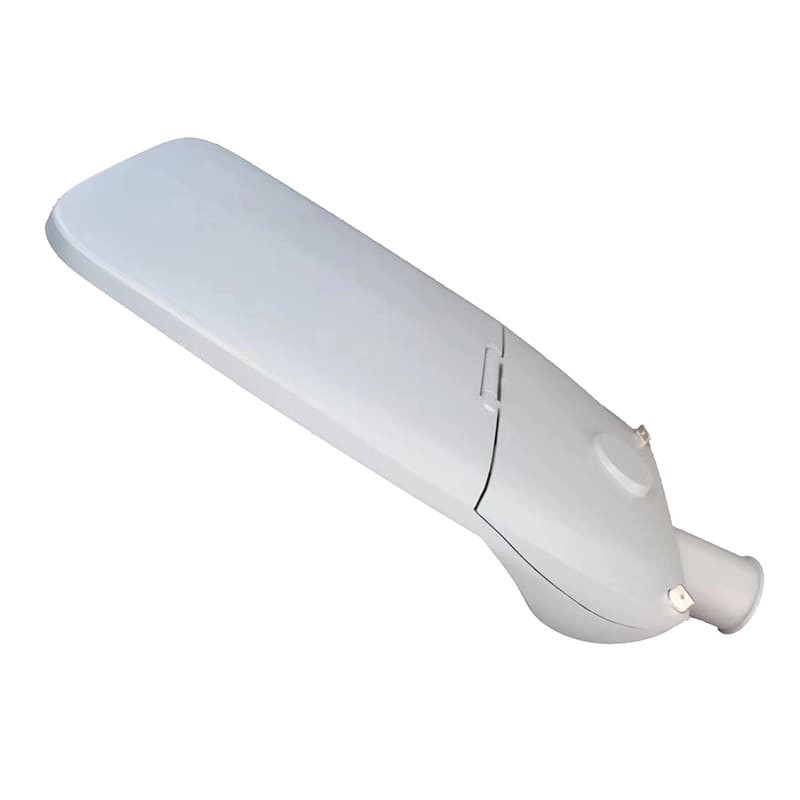

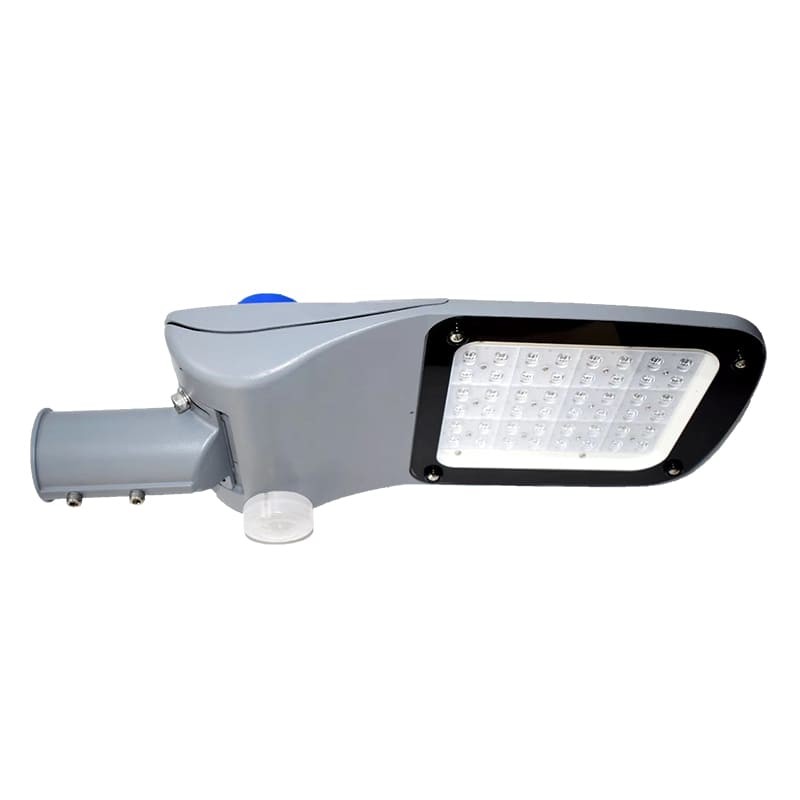

Led Street Light (PL-LD-071)

Input Voltage:AC85-265V
Frequency Range:50~60Hz
Total Harmonic Distortion:<20% (Typical : 10%)
Color Temperature: 2200K,2700K,3000K,4000K,5000K,5700K,6500K
Color Rendering Index:CRI>70/80
IP Rating&IK :IP66 IK09

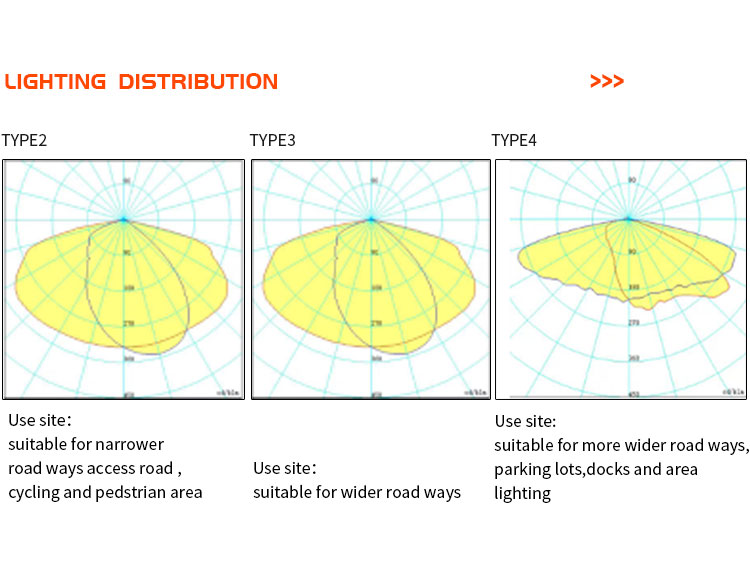

Beam Angle:T2/T3/T4
Housing Color:Gray
Working Life:>50,000 hours
Warranty:5 years
Working Environment:-40ºC~+50ºC, 10%~90% RH

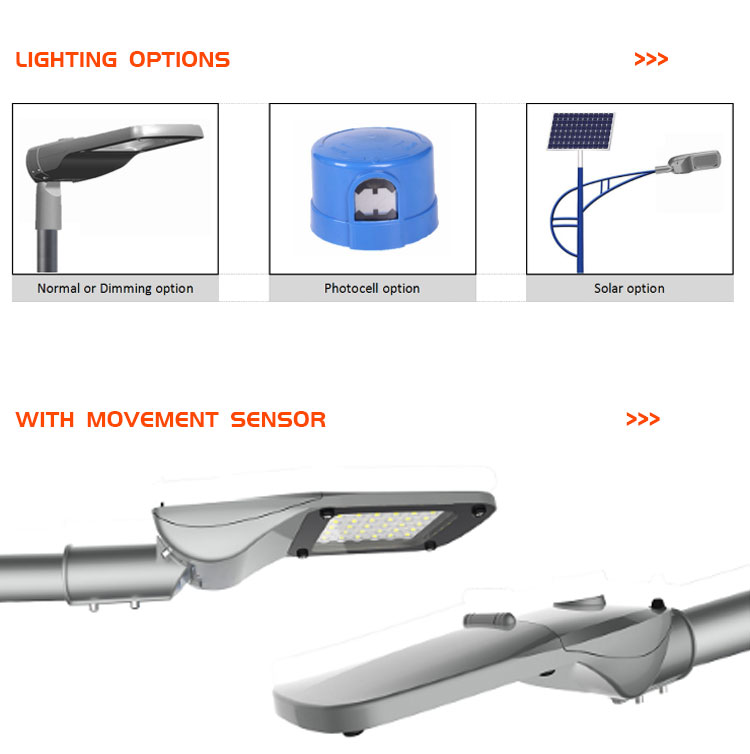

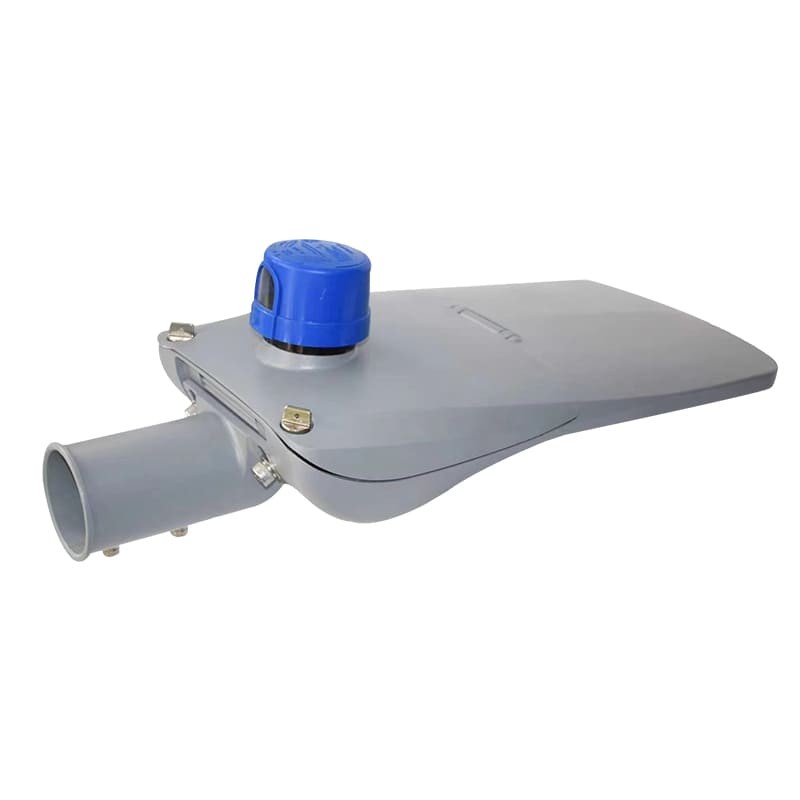

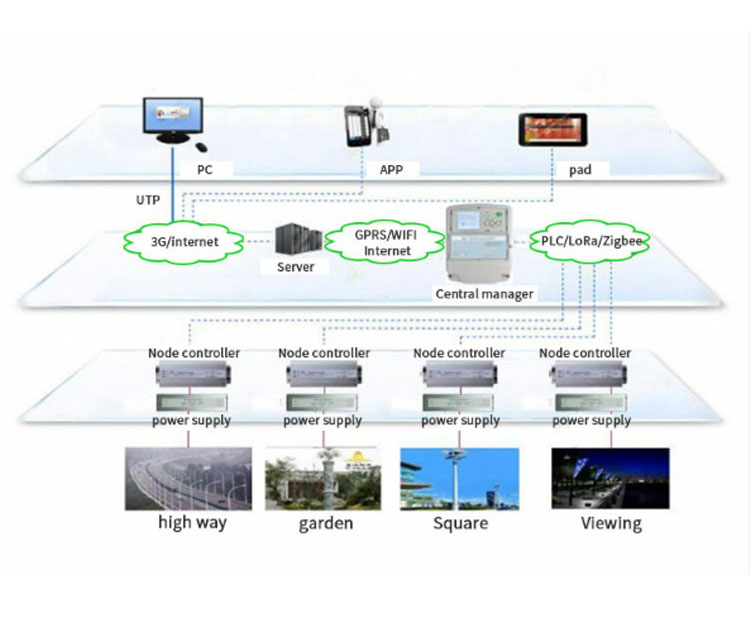

Control:Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI

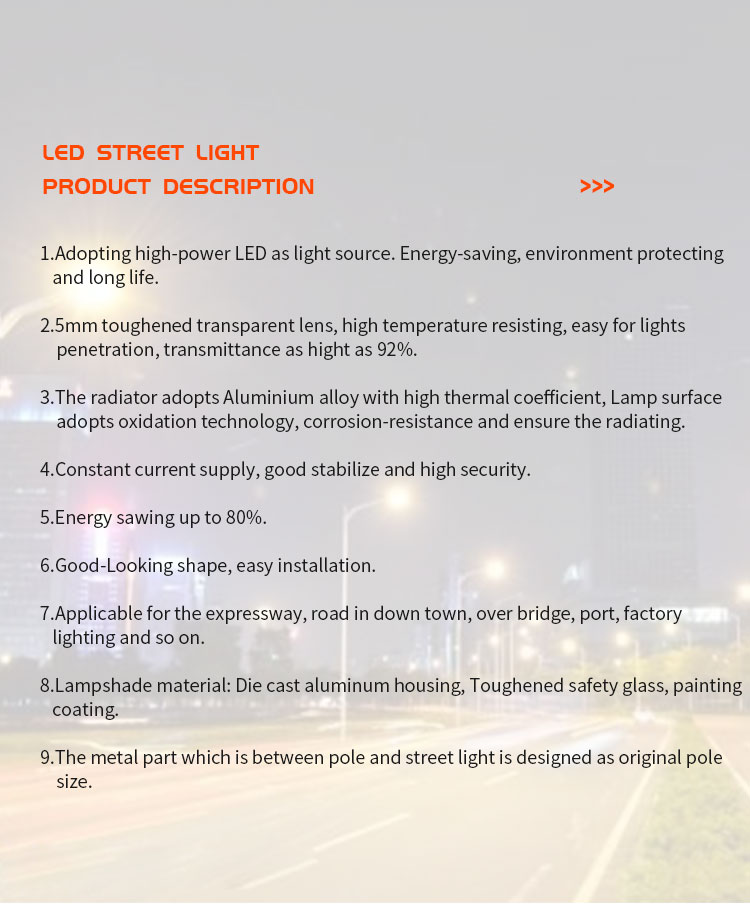

Body & Shade Material:Die-casting Aluminum housing &Tempered glass& lens

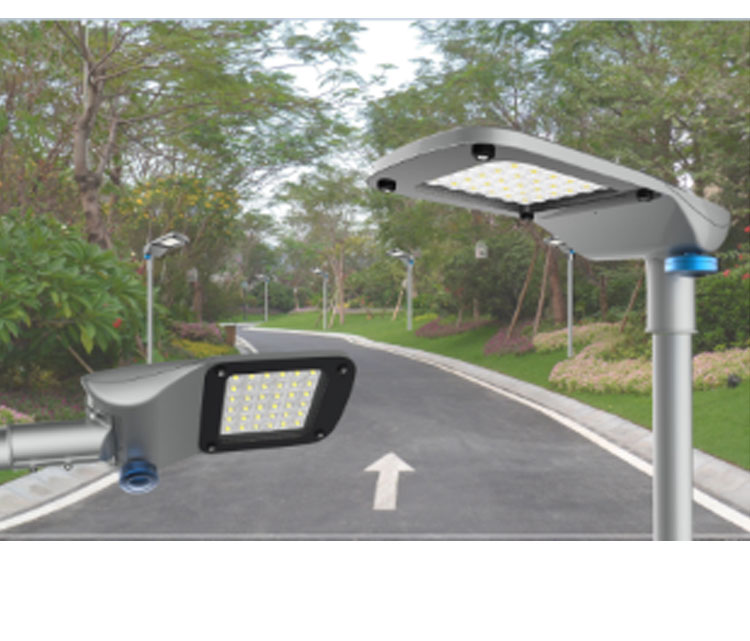

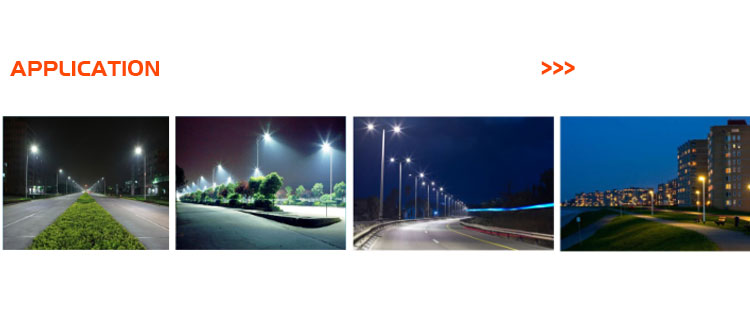

Where Can Use:Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

Factory wholesale product Die-cast aluminum decorationLED street light

Datesheet:

Model	PL-LD-071-60W	PL-LD-071-100W	PL-LD-071-150W	PL-LD-071-200W
Power	30、40、50、60W	70、80、90、100W	120、150W	180、200W

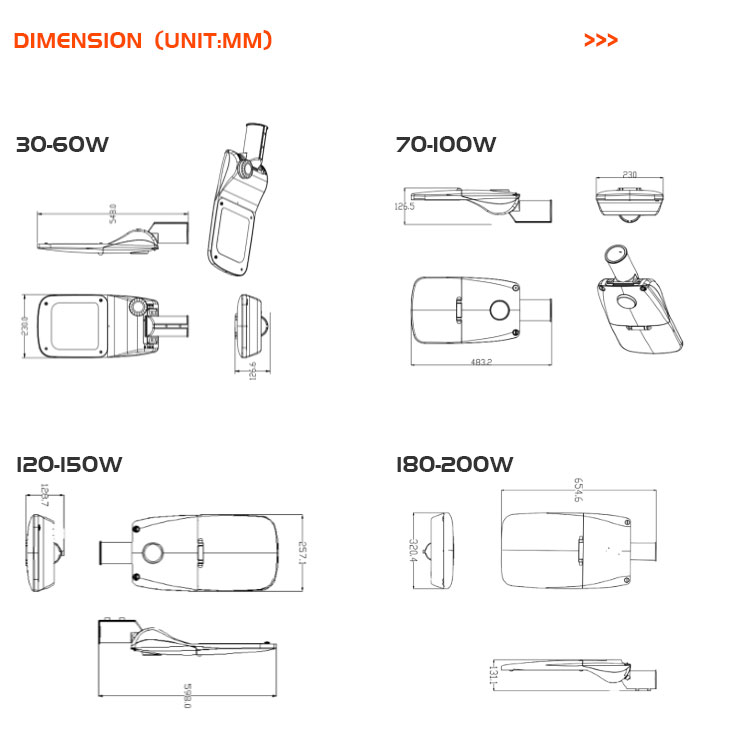

Dimension	483.2X230X80mm	548X230X90mm	598X257.1X93mm	654.6X320.4X125mm
Luminous Flux	150lm/w±5%
LED Source	96PCS SMD 3030	144PCS SMD 3030	192PCS SMD 3030	320PCS SMD 3030
Input Voltage	AC85-265V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2200K,2700K,3000K,4000K,5000K,5700K,6500K
Color Rendering Index	CRI>70/80
IP Rating&IK	IP66 IK09
Beam Angle	T2/T3/T4
Housing Color	Gray
Working Life	>50,000 hours
Warranty	5 years
Working Environment	-40ºC~+50ºC, 10%~90% RH
Control	Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI
Body & Shade Material	Die-casting Aluminum housing &Tempered glass& lens
Where Can Use	Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
