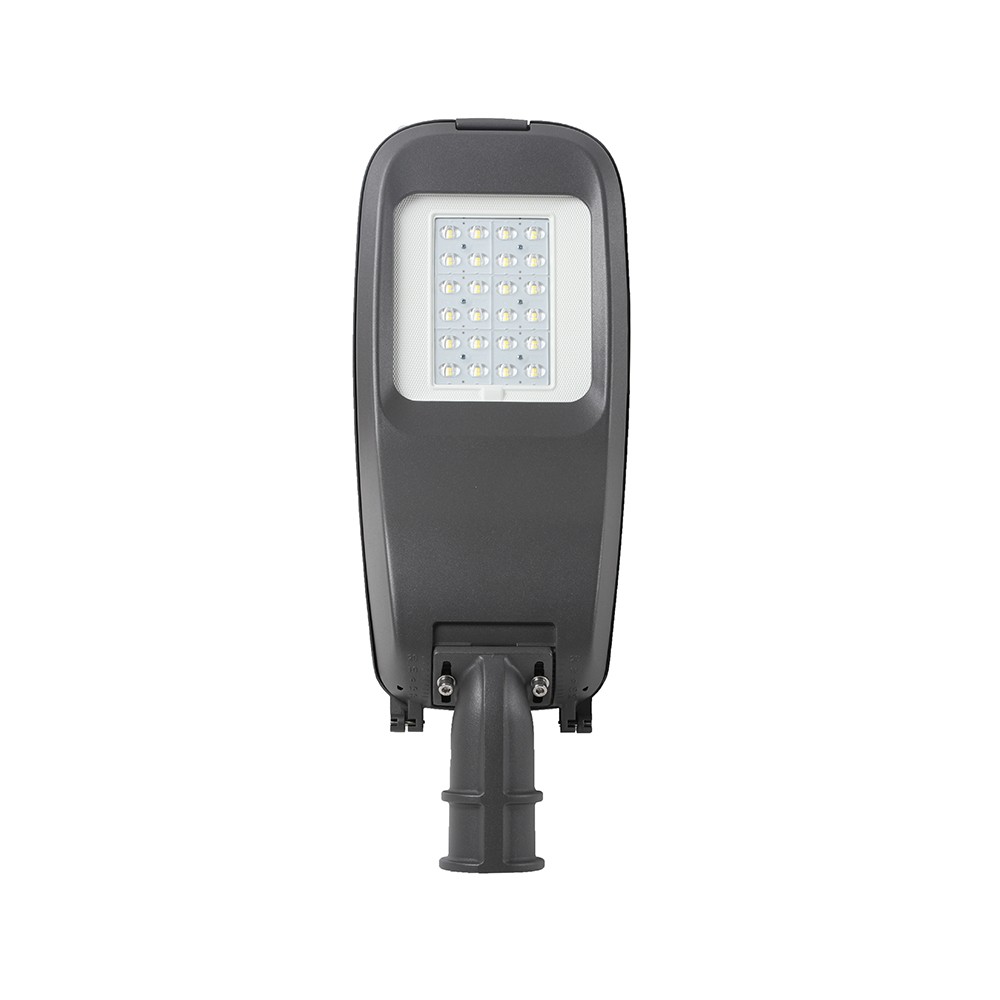

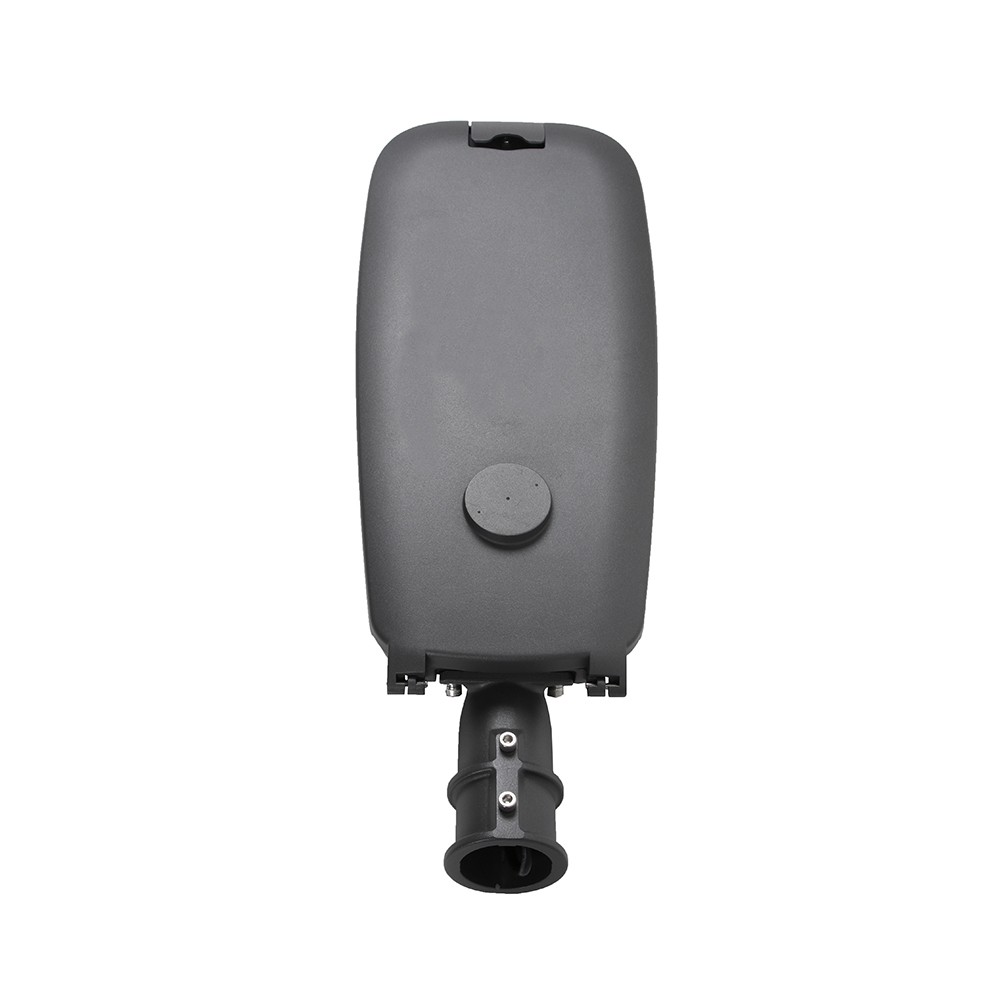

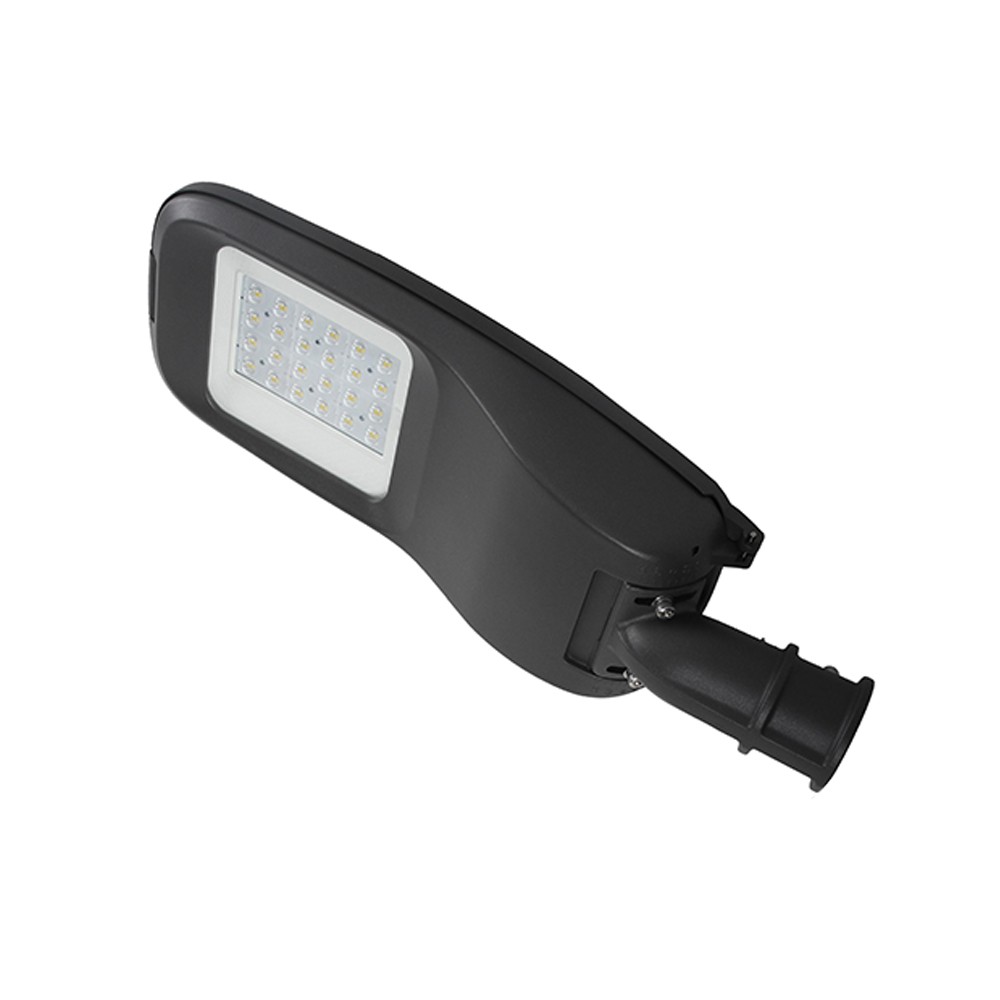

Led Street Light (PL-LD-062)

LED chip：Lumileds 3030SMD
CRI：Ra>70/80
Power Factor：>0.95
Light efficiency：140LM/W±5%
Beam angle ：TYPEII /TYPEIII
LED driver brand：HONTEK ,Inventronics , Meanwell
Surge protection：4-6KV/10KV/20KV as customers' rerquirement
lamppost diameter ：48mm/52mm/60mm
Waterproof and IK：IP66&IK09
Housing material：Die-cast aluminum +tempered glass
Storage temperature -40℃~85℃ 10%~90% H.R
Work temperature：-40℃~50℃ 20%~90% H.R
Lifespan：(L80B10) 100000 hours
warranty：5 -8years

Hot Products Top 10 Parking IP66 IK09 Outdoor Road Lamp Pole LED Street Light

Product description
1).Adopting imported lumileds chips 3030smd as light source. Energy-saving, environment protecting and long life.
2). 5mm toughened transparent glass , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.
3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.
4).Constant current supply, good stabilize and high security.
5).Energy sawing up to 80%.
6).Good-Looking shape, easy installation
7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..
8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.
9).The metal part which is between pole and street light is designed as original pole size.

LED Street light Specifications
Model	PL-LD-062
Input Voltage	100-277V/305VAC
Power	30W 40W 50W 60W 70W 80W	90W 100W 120W 150W	180W 200W	240W
Size(mm)	627249147	723299152	785347156	785347156
Net weight(KG)	3.50	3.50	5.10	7.00
LED chip	Lumileds 3030SMD
CRI	Ra>70/80
Power Factor	>0.95
Light efficiency	140LM/W±5%
Beam angle	TYPEII,III,IV,V
LED driver	The constant current driver
Surge protection	6KV10KV/20KV as customers' rerquirement
Waterproof and IK	IP66&IK09
Housing material	Die-cast aluminum +tempered glass
Storage temperature	-40ºC~85ºC 10%~90% H.R
Work temperature	-40ºC~50ºC 20%~90% H.R
lamppost diameter	60mm
Lifespan	(L80B10) 100000 hours
Control mode	Photocell ,0-10V;dimming range;PLC,LoRa,Nema ,DALI
Certificates	TUV -CE(EMC.LVD) ROHS SAA CB ENEC IK09 IP66 LM-80 LM-79 TM-21
warranty	5-10 years

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions,

please feel free to contact us, you will get reply at the first time
