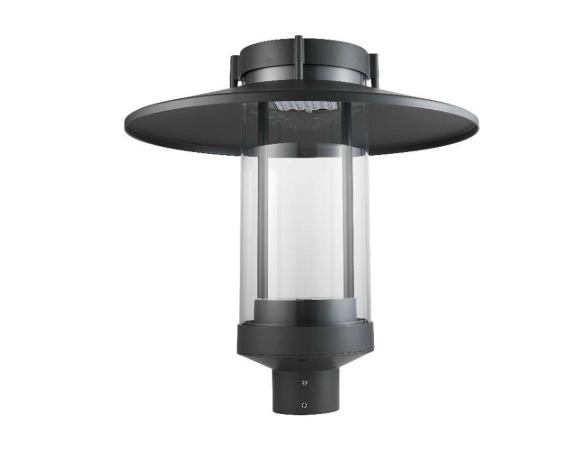

Led garden light (PL-GL-011)

Input Votage:AC90V-305V
Material: die-cast aluminium + lens IP grade：IP66 Led chip:Lumileds 5050smd
Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency：110LM/W±5% PF：> 0.95
CRI: Ra>70/80
CCT：2700-6500K
Life：50000H

Motion Sensor Security Home IP65 Outdoor Spot Flood Light LED Garden Light

PL-GL011 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology,

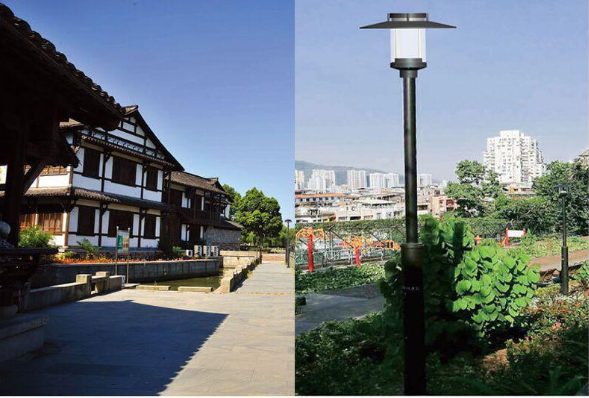

complemented by a simply, yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow

bicycle paths, parking lots, parks, highways, etc.
LED
Lumileds 5050
PL-GL-011
20W-55W

Light Data-Sheet
Model No	PL-GL-011
Size	D550*550mm
Holder	76mm
Watts	20W	30W	40W	55W
Luminous	120-130lm/W
LED Qty	12pcs Lumileds SMD5050	16pcs Lumileds SMD5050	20pcs Lumileds SMD5050	24pcs Lumileds SMD5050
Material	Aluminum, PC Cover
Kelvin	3000K, 4000K, 5000K, 6000K or Specified Color
CRI	90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens Angle	T1/T2/T3
Driver option	Inventronics, Meanwell or Specified brand (Note: normal are Inventronics driver)
Input Voltage	90-305Vac; 50/60Hz; PF>0.95
Lifetime	>50, 000hours
IP Level	IP65
Certificate	ENEC, CB, SAA, CE, RoHS, IP65, IK09 etc.
Package	580265265mm/1PCS main body+590590100mm/3PCS cover
N.W	6.50KG
G.W	7.50KG

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
