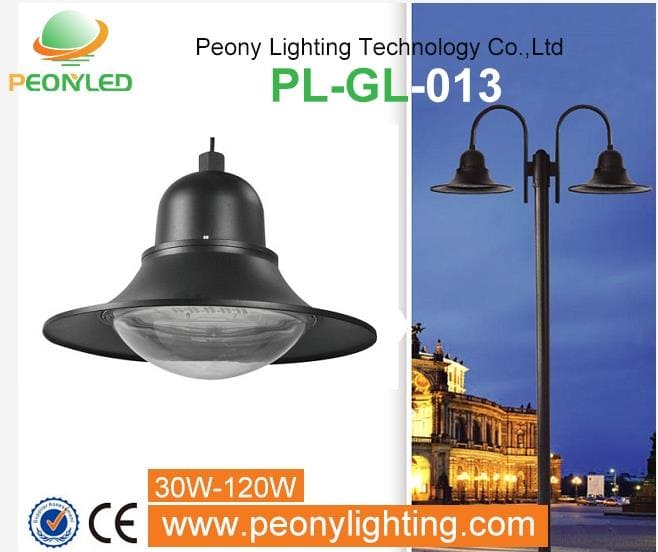

Led garden light (PL-GL-013)

Input Votage:AC90V-305V
Material: die-cast aluminium + lens IP grade:IP66 CREE-XTE:12PCS
Working temperature:-40-50°C
Beam angle: T1 T2 T3
luminous efficiency:110LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

EMAIL

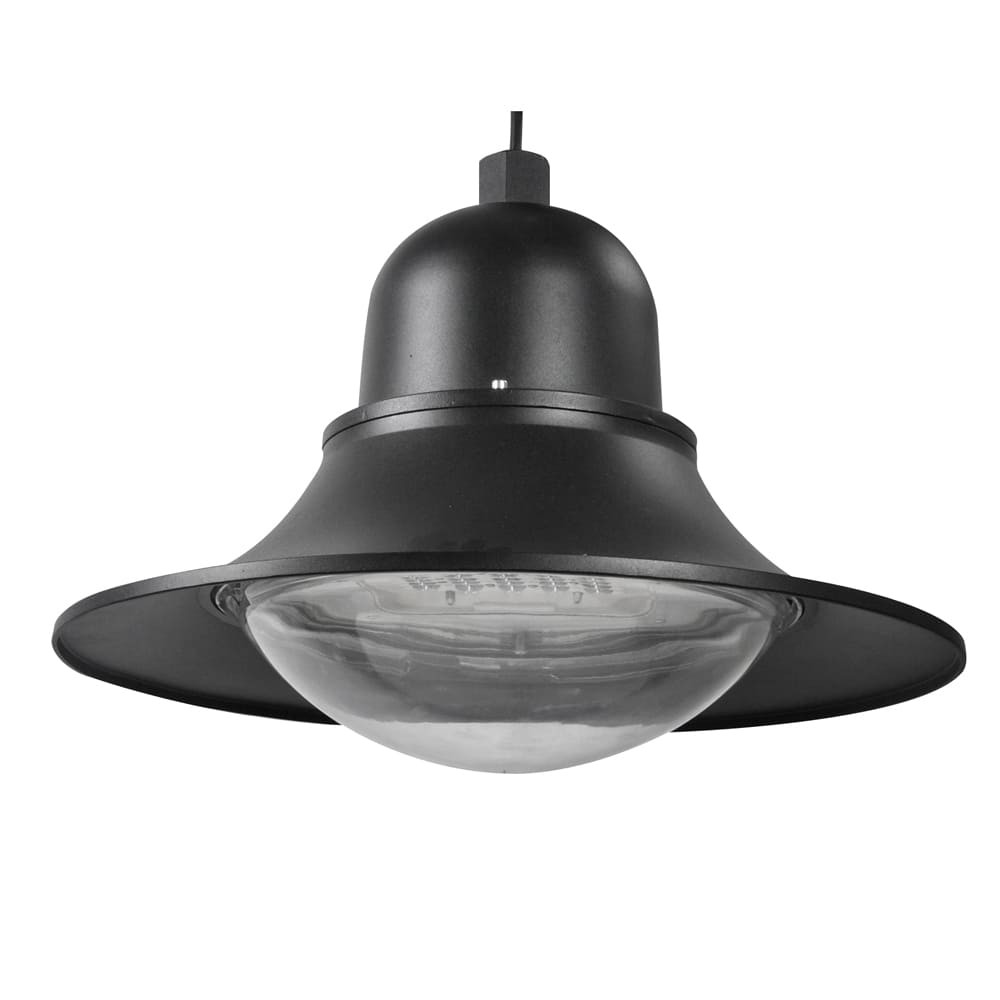

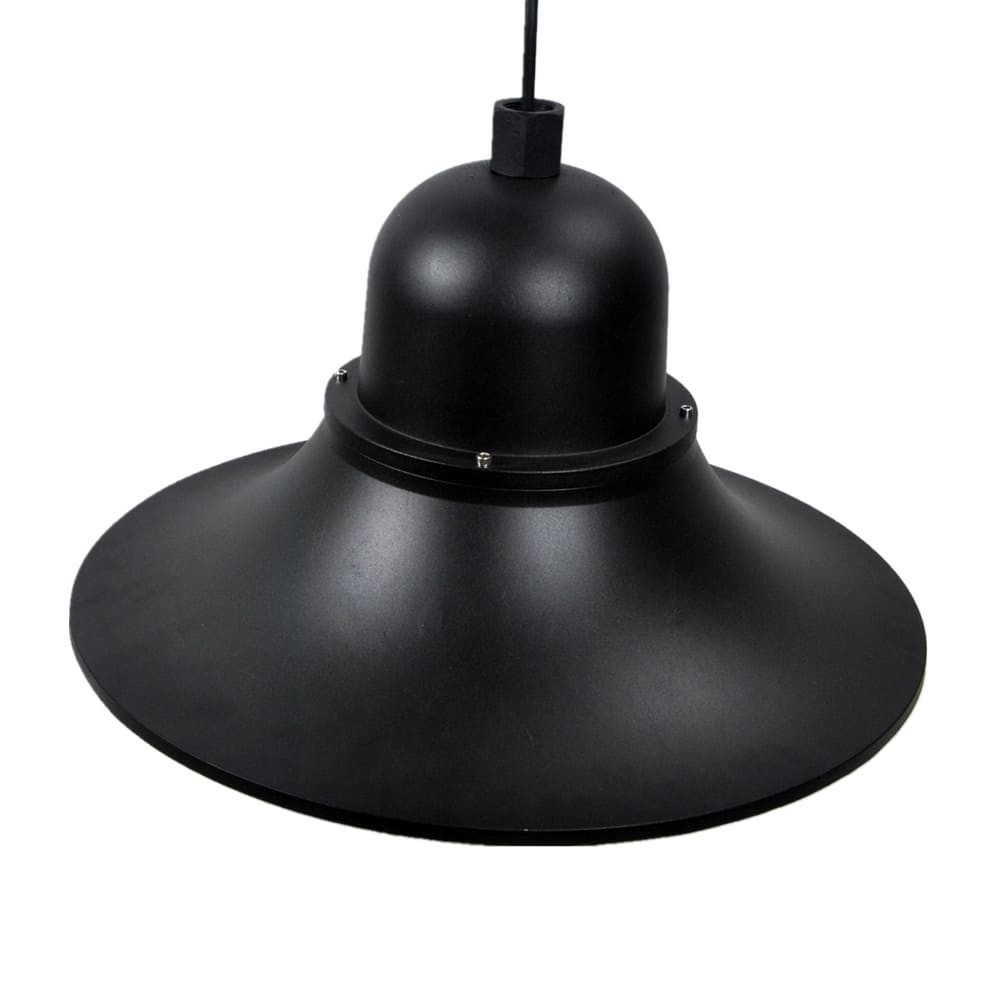

LED Garden Light High Efficiency Yard Lamp LED Yard Light Garden Lamp


PL-GL013 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply, yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.

Light Data-Sheet
Model NoPL-GL-013
SizeD560*380mm
Holder32mm
Watts35W45W55W
Luminous120lm/W

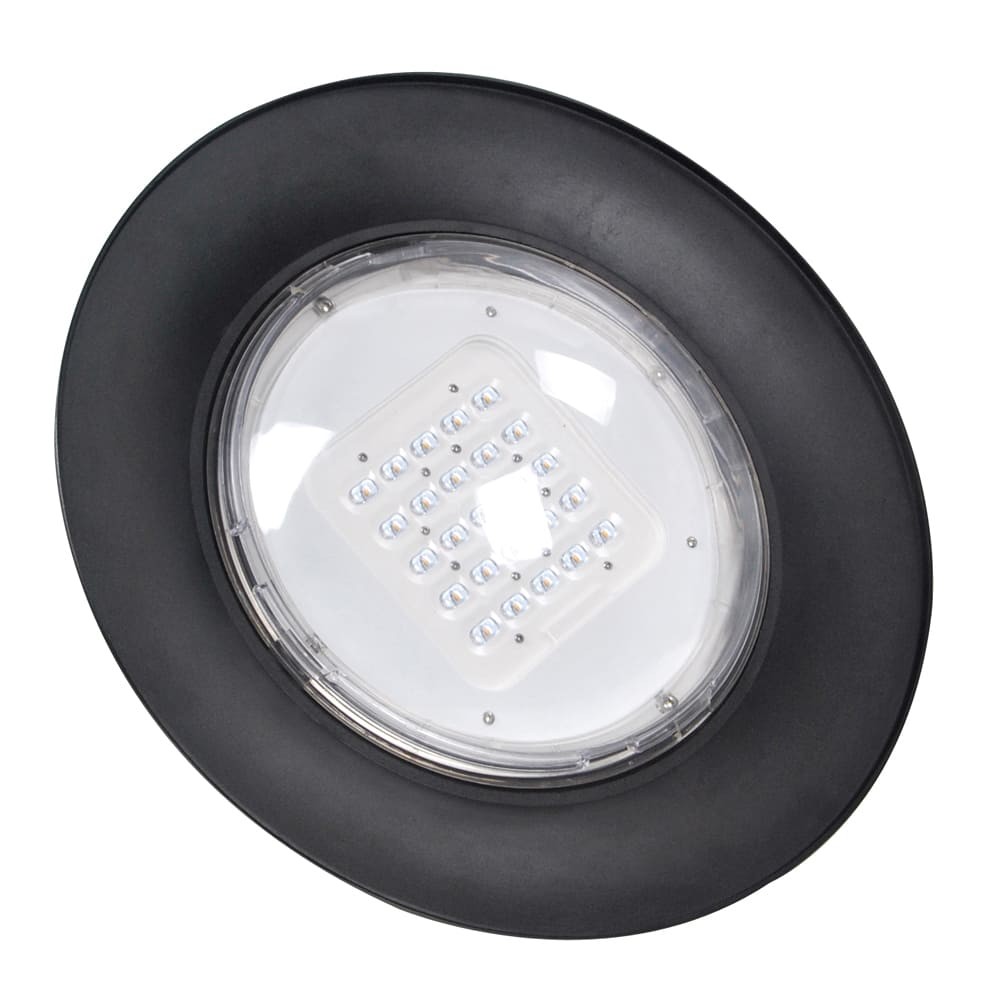

LED Qty15PCS CREE XTE20PCS CREE XTE25PCS CREE XTE
MaterialAluminum, PC Cover
Kelvin3000K, 4000K, 5000K, 6000K or Specified Color
CRI90Ra, 80Ra, 70Ra (Note: normal are 70Ra)
Lens AngleT1/T2/T3

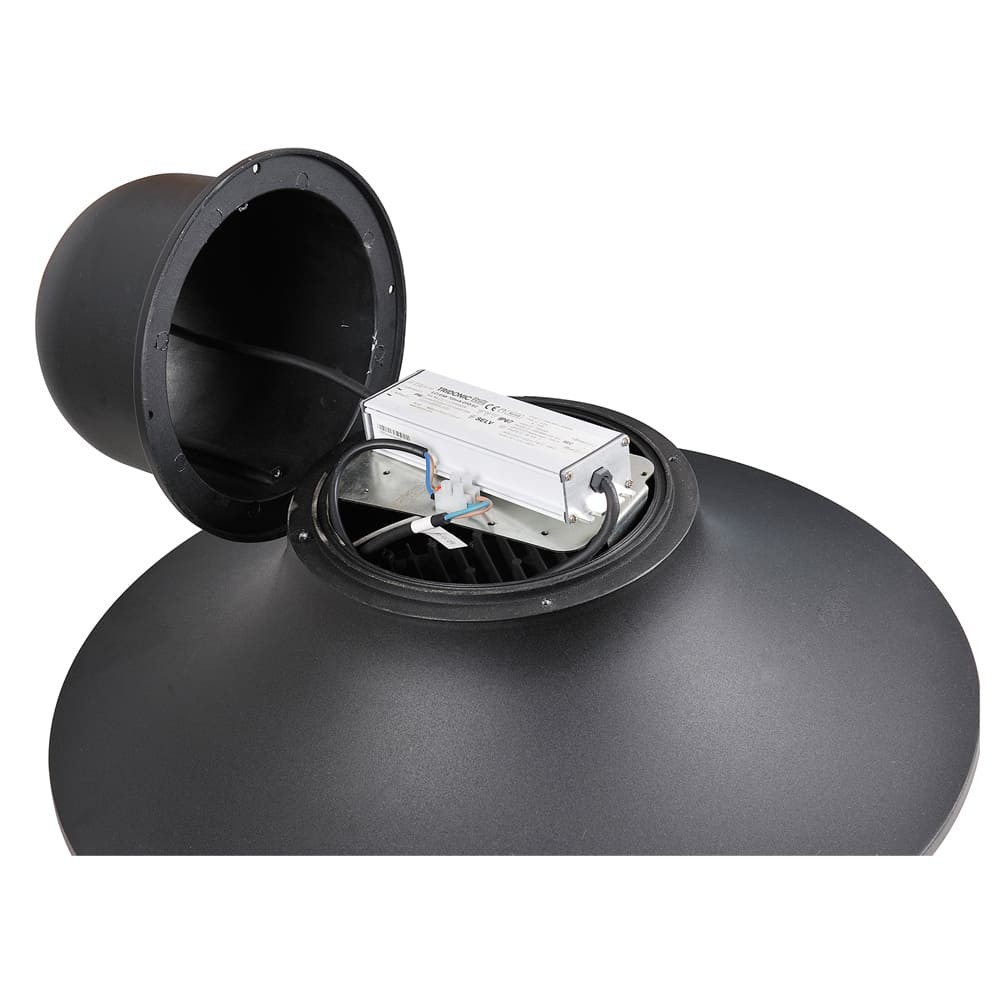

Driver optionInventronics, Meanwell or Specified brand (Note: normal are  Inventronics driver)
Input Voltage90-305Vac; 50/60Hz; PF>0.95
Lifetime>50, 000hours
IP LevelIP65
CertificateENEC, CB, SAA, CE, RoHS, IP65, IK09 etc.
Package570*570*390mm
N.W5.50KG
G.W6.50KG



FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
