Input Votage:AC90V-305V
Material: die-cast aluminium + lens+toughed glass
IP grade:IP66 CREE:16PCS
Working temperature:-40-55°C
Beam angle: T2 T3
luminous efficiency:110LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

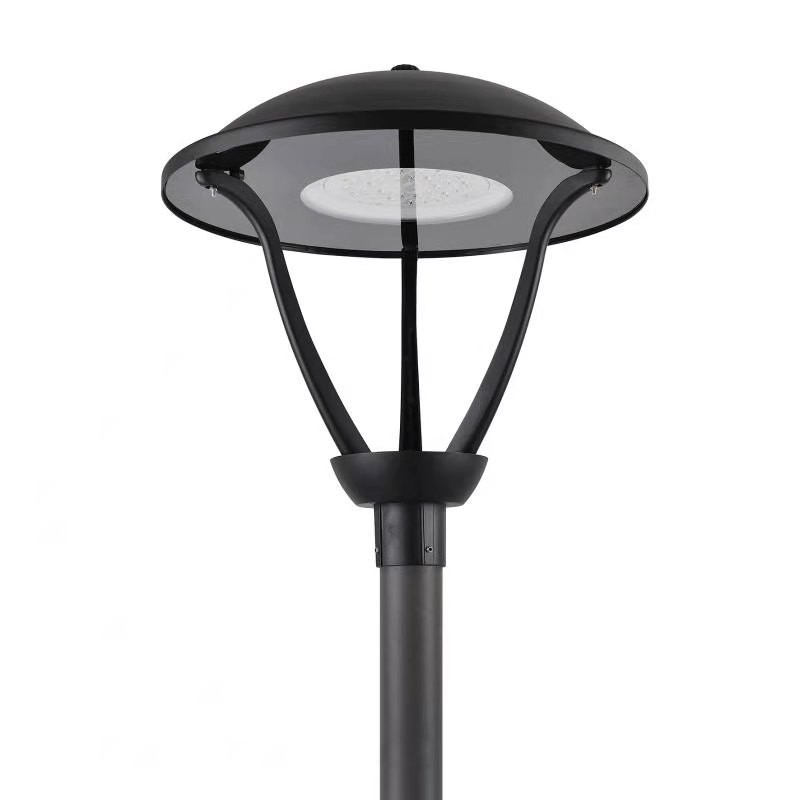

IP65 Outdoor Pole Top Light Waterproof SMD LED Garden Post Light

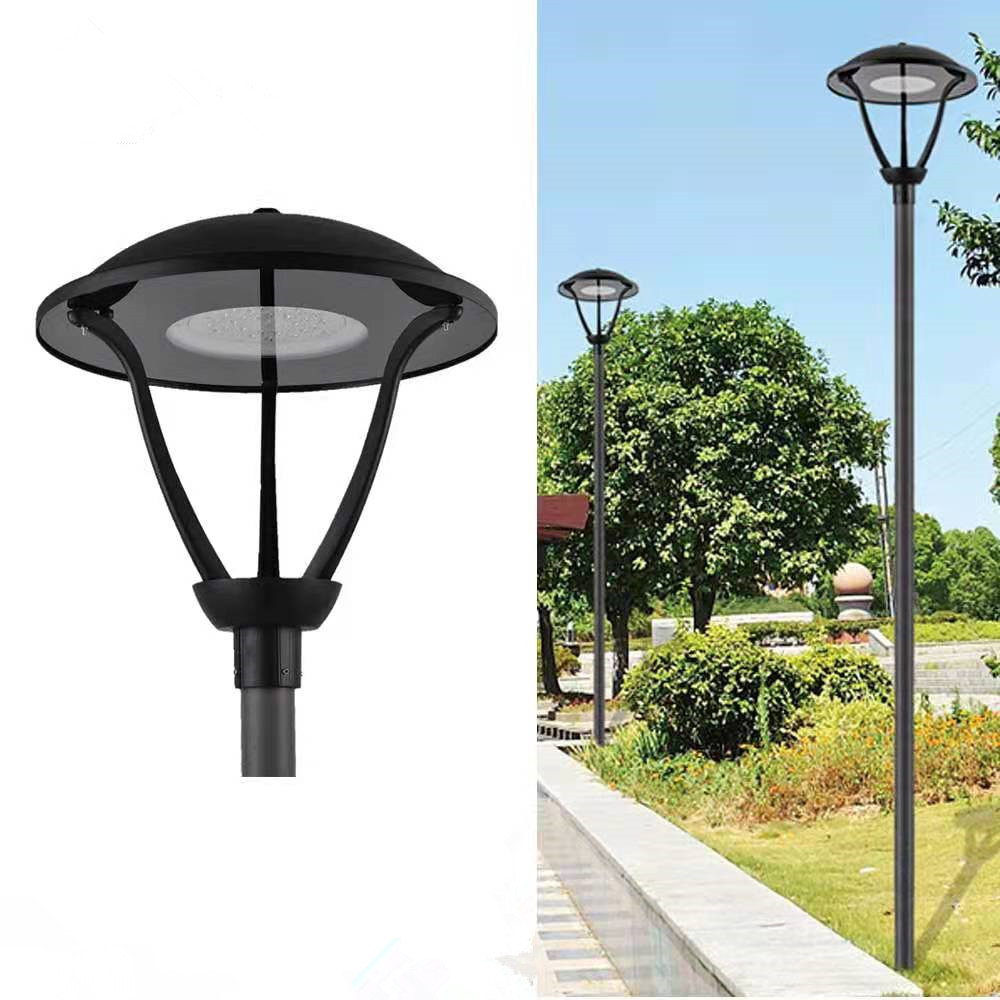

PL-GL017 series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology, complemented by a simply, yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths, parking lots, parks, highways, etc.
LED
CREE
PL-GL-017
35W-60W
Light Data-Sheet | |||
Model No | PL-GL-017 | ||
Size | D650*674mm | ||
Holder | 76mm | ||
Watts | 35W | 50W | 60W |
Luminous | 100lm/W±5% | ||
LED Qty | 16PCS CREE | 24PCS CREE | 28PCS CREE |
Material | Aluminum, Glass | ||
Kelvin | 3000K, 4000K, 5000K, 6000K or Specified Color | ||
CRI | > 70Ra | ||

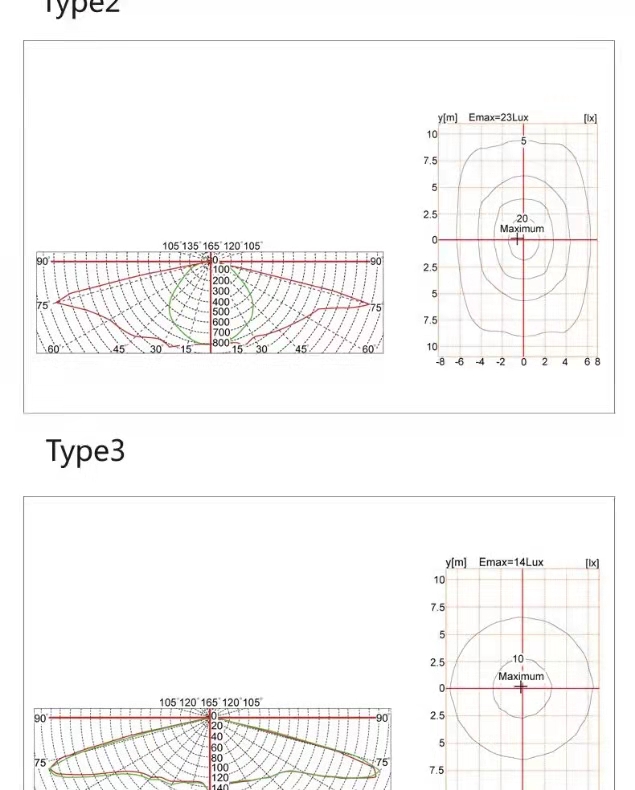

Lens Angle | T1/T2/T3 | ||
Driver option | Inventronics or Specified brand | ||
Input Voltage | 90-305Vac; 50/60Hz; PF>0.95 | ||
Lifetime | >50, 000hours | ||
IP Level | IP65 | ||
Certificate | ENEC, CB, SAA, CE, RoHS, IP65, IK09 etc. | ||
Package | 780*700*230mm | ||
N.W | 12.0kg | ||
G.W | 14.0kg |
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
