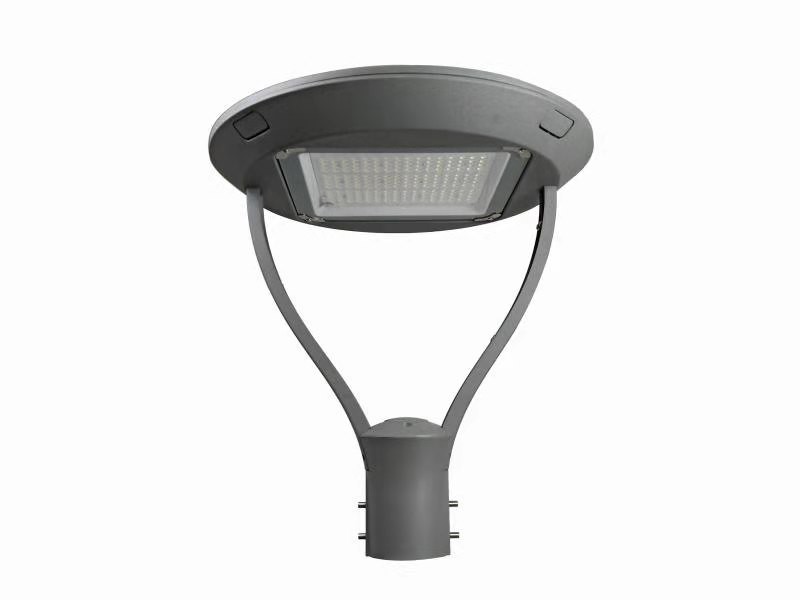

Led garden light (PL-GL-020)

Lumens efficiency:130LM/w
Beam angle:Type II type III
Input voltage:AC100-277V

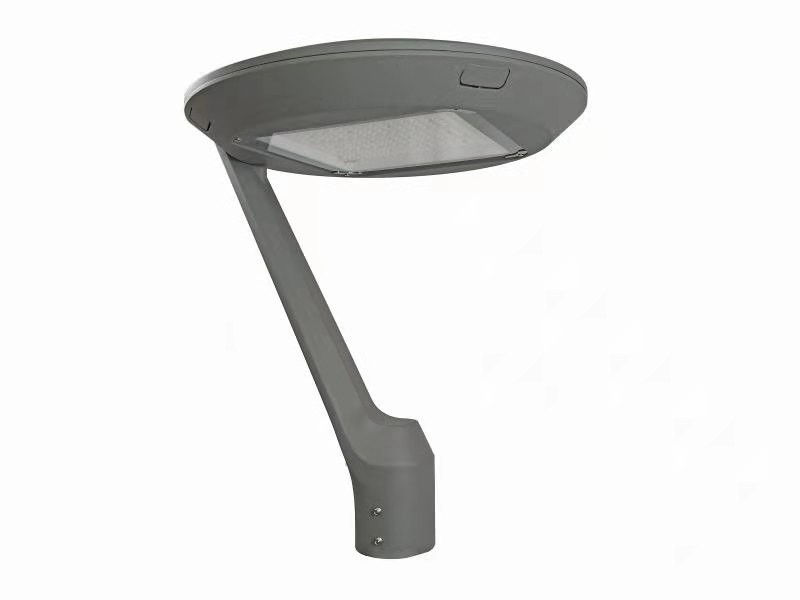

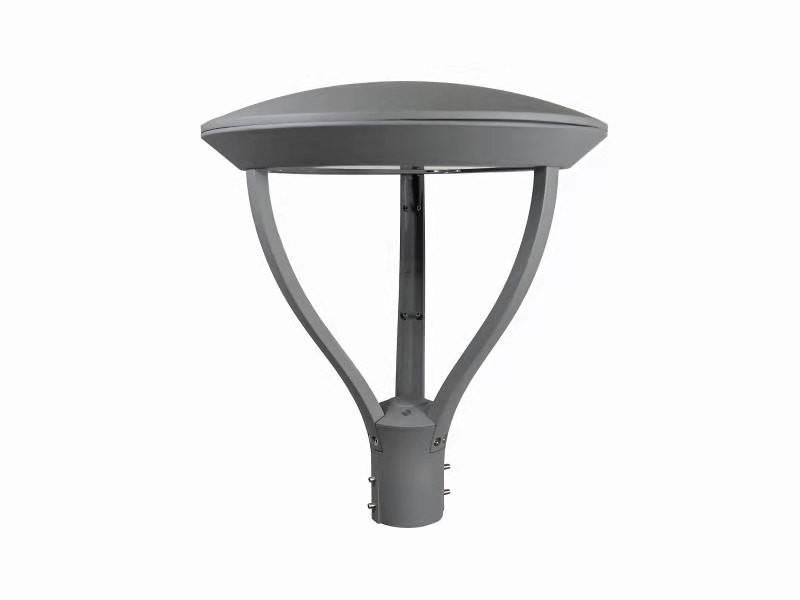

Post Top Lamp Solar Garden Lighting Pole Light

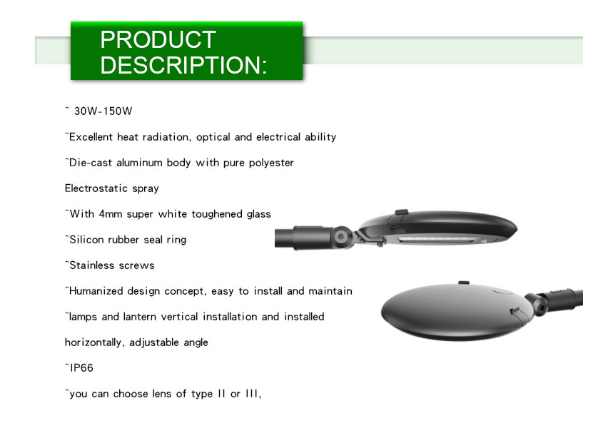

PRODUCT DESCRIPTION:

- PL-GL-020, available from 30W-150W

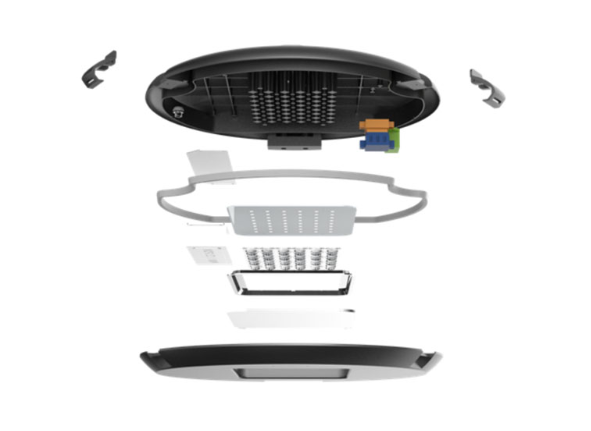

~Excellent heat radiation, optical and electrical ability
~Die-cast aluminum body with pure polyester
Electrostatic spray
~With 4mm super white toughened glass
~Silicon rubber seal ring
~Stainless screws

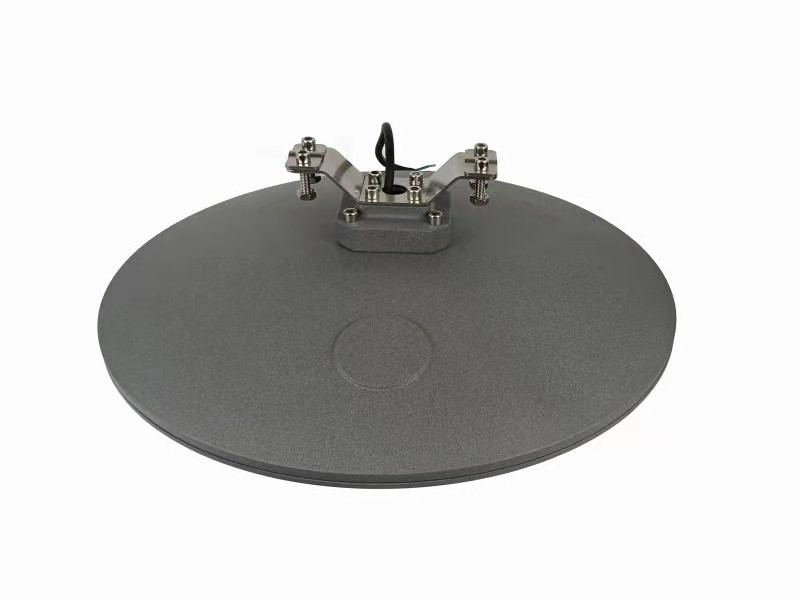

~Humanized design concept, easy to install and maintain

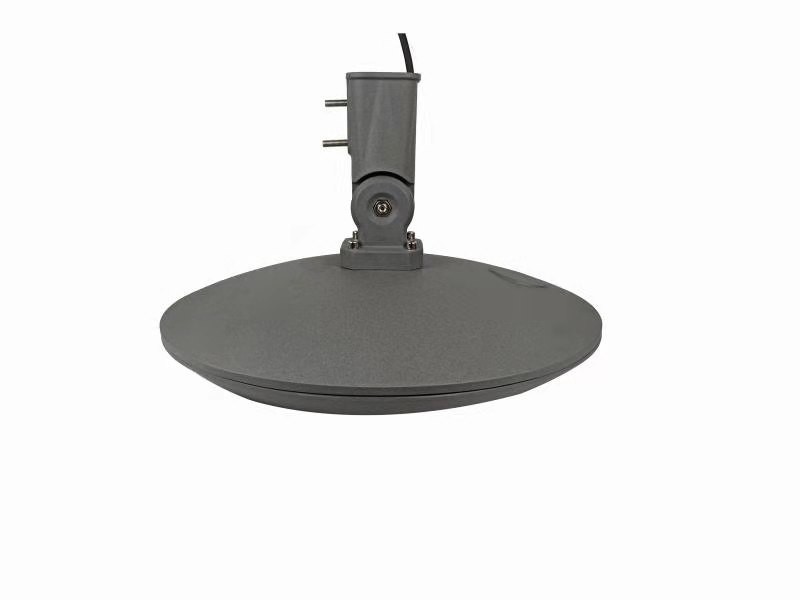

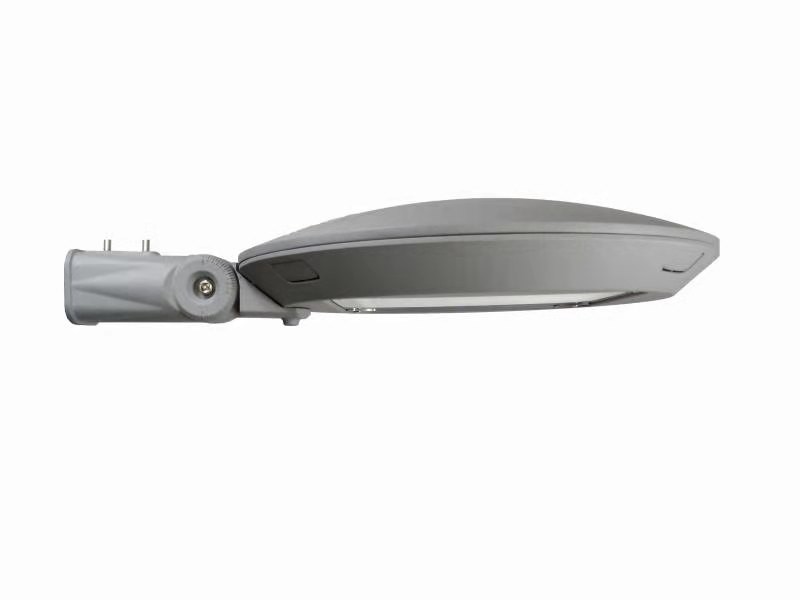

~lamps and lantern vertical installation and installed
horizontally, adjustable angle
~IP66
~you can choose lens of type II or III, more than ten kinds lens.
SPECIFICATIONS:

Model No	PL-GL-020
Power	30W	40W	50W	60W	80W	100W	120W	150W
Len chips Qty (3030)	144pcs					192pcs
LED Chips	Lumileds 3030smd (other brand of led upon request)
Luminaire Efficacy	130LM/W±5%
CCT	1800K Amber ,3000K 4000K 5000K 5700K 6500K
CRI	>70
Lifetime	>50000H (at 25ºC ambient temperature)
Operating Temperature	-30ºC-55ºC
Driver	Meanwell/Inventronics (other brand of driver upon request)
Electrical	Class I or Class II Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ 10KV/20KV SPD Cut-off connector (Power automatically switch off when opening)
Beam angle	T2/T3
Dimming	DALI / 1-10V / PWM / FIVE LEVELS DIMMING /
Options	Surge protection device / External cable (different length upon request)
Color	Grey / Black / White (other color upon request)
Tightless Level	IP66
Impact Resistance	IK08
Standards & Certification	ISO 9001:2015 CE / CB / ENEC / IEC / LM79 / TM21 Pending

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
