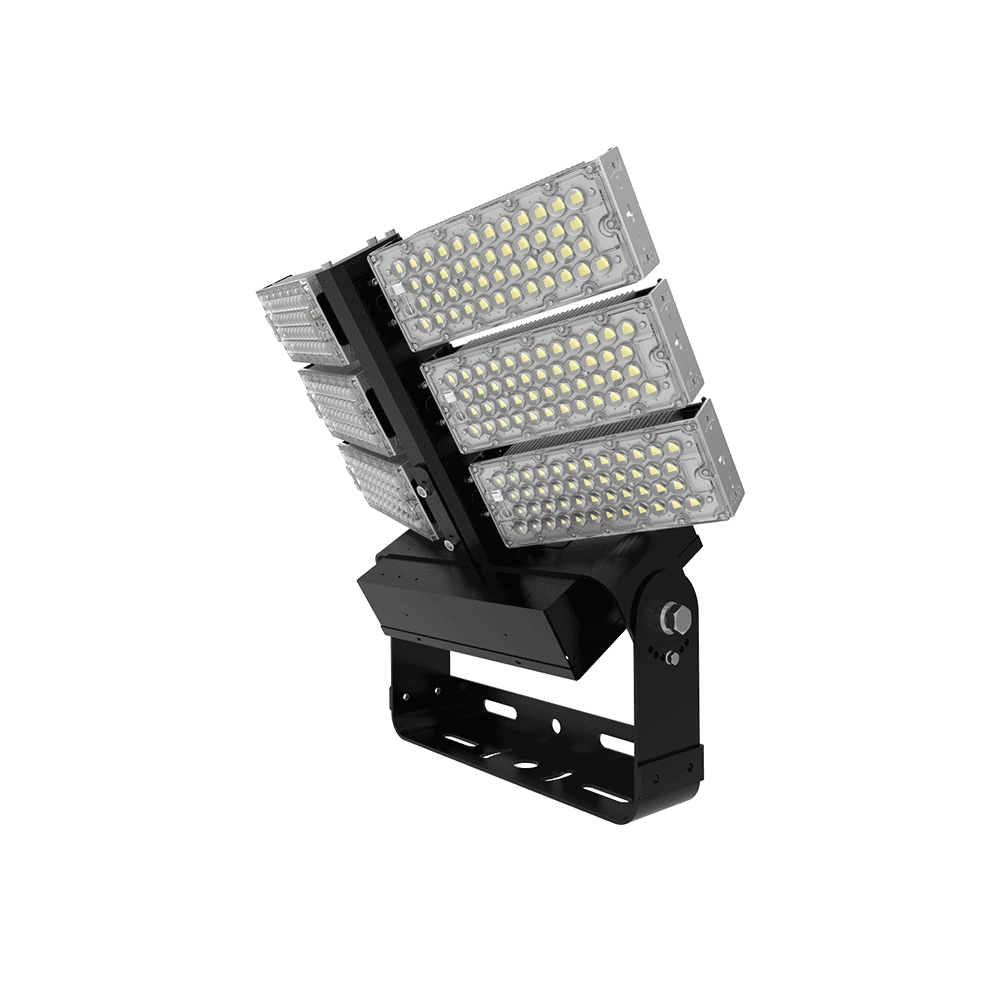

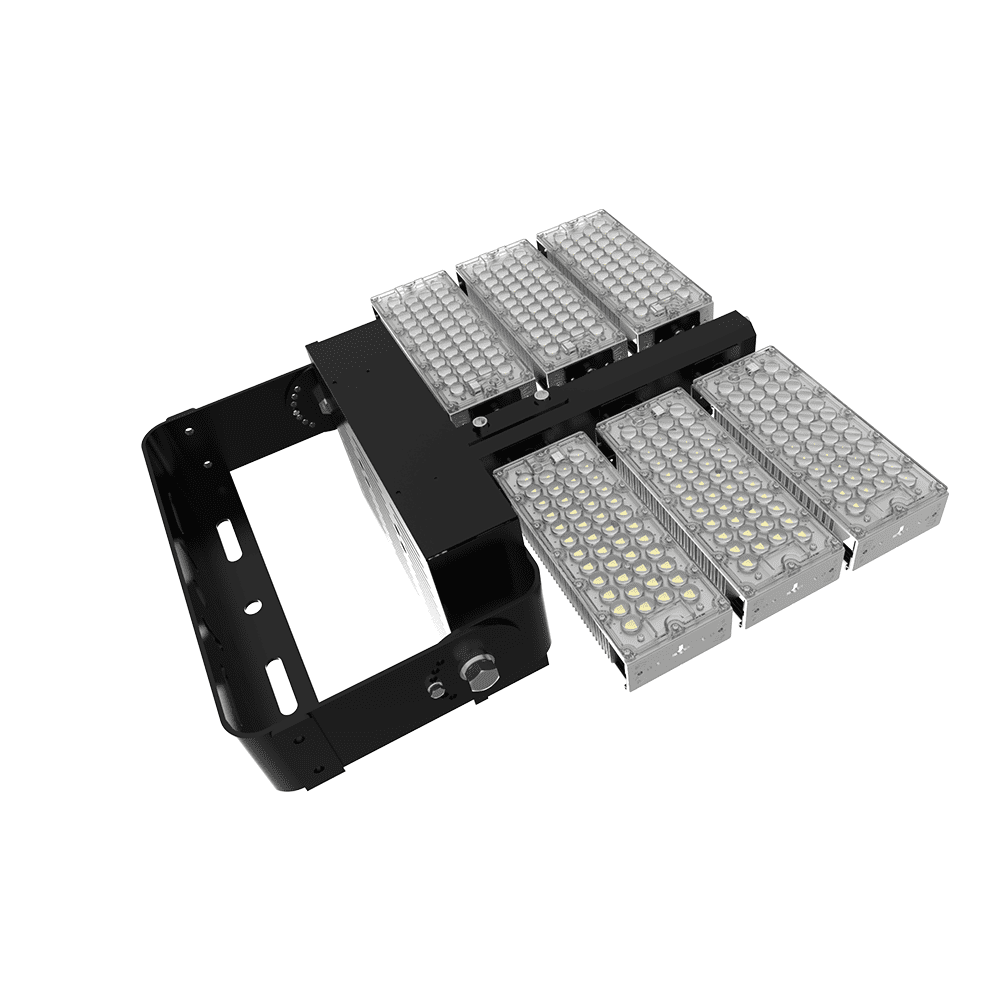

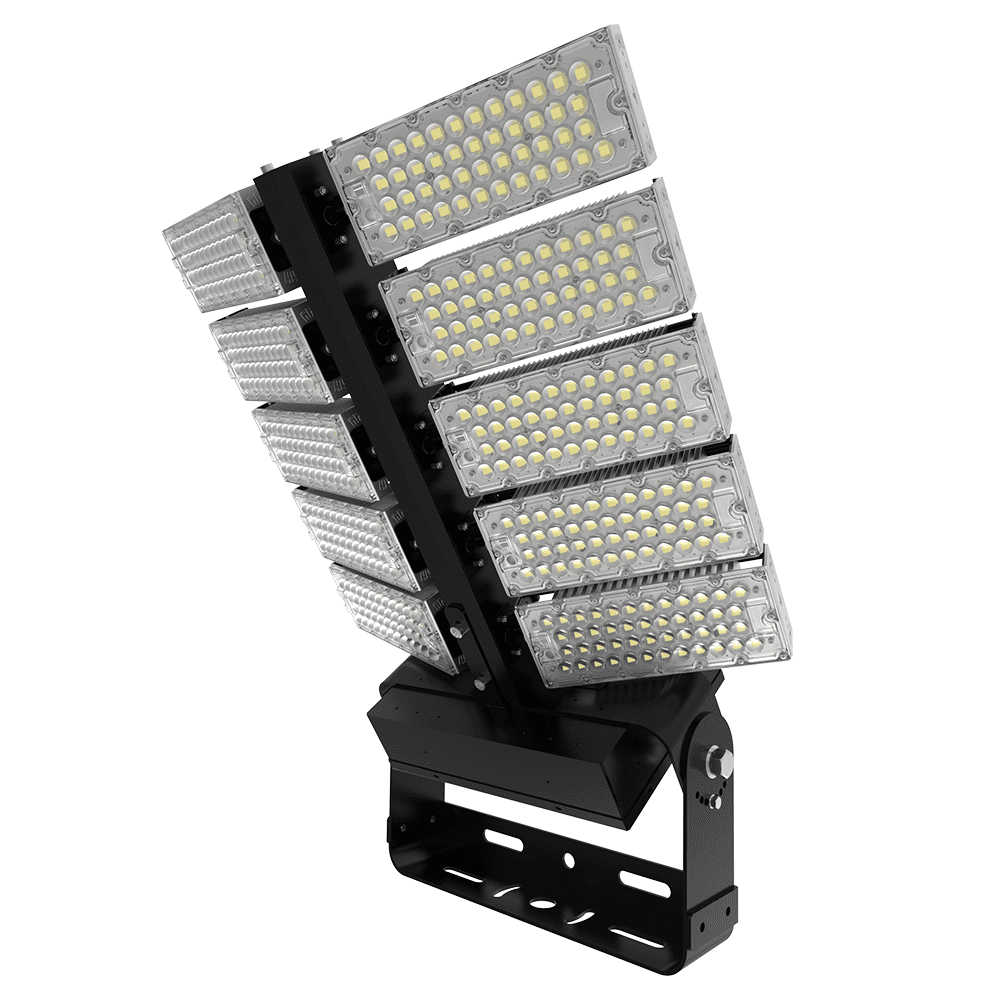

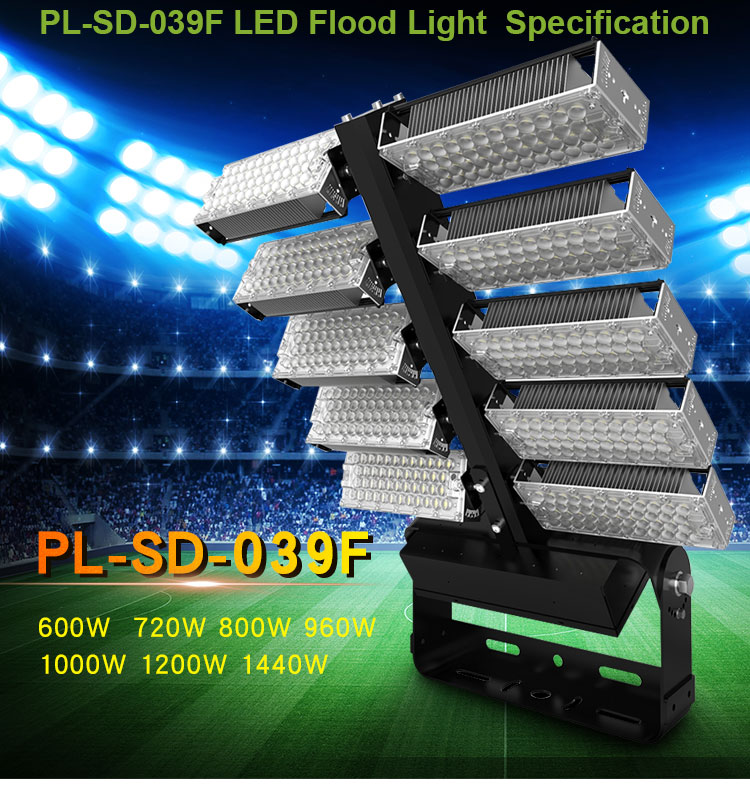

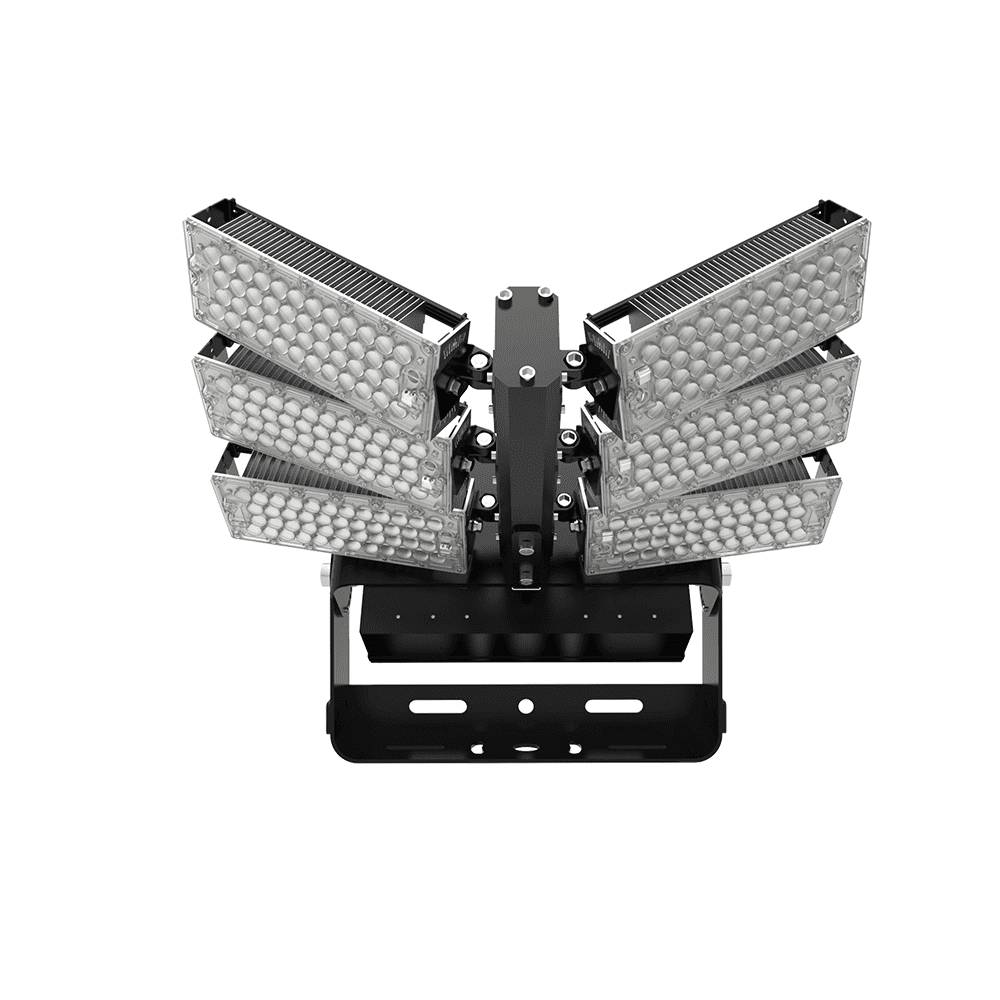

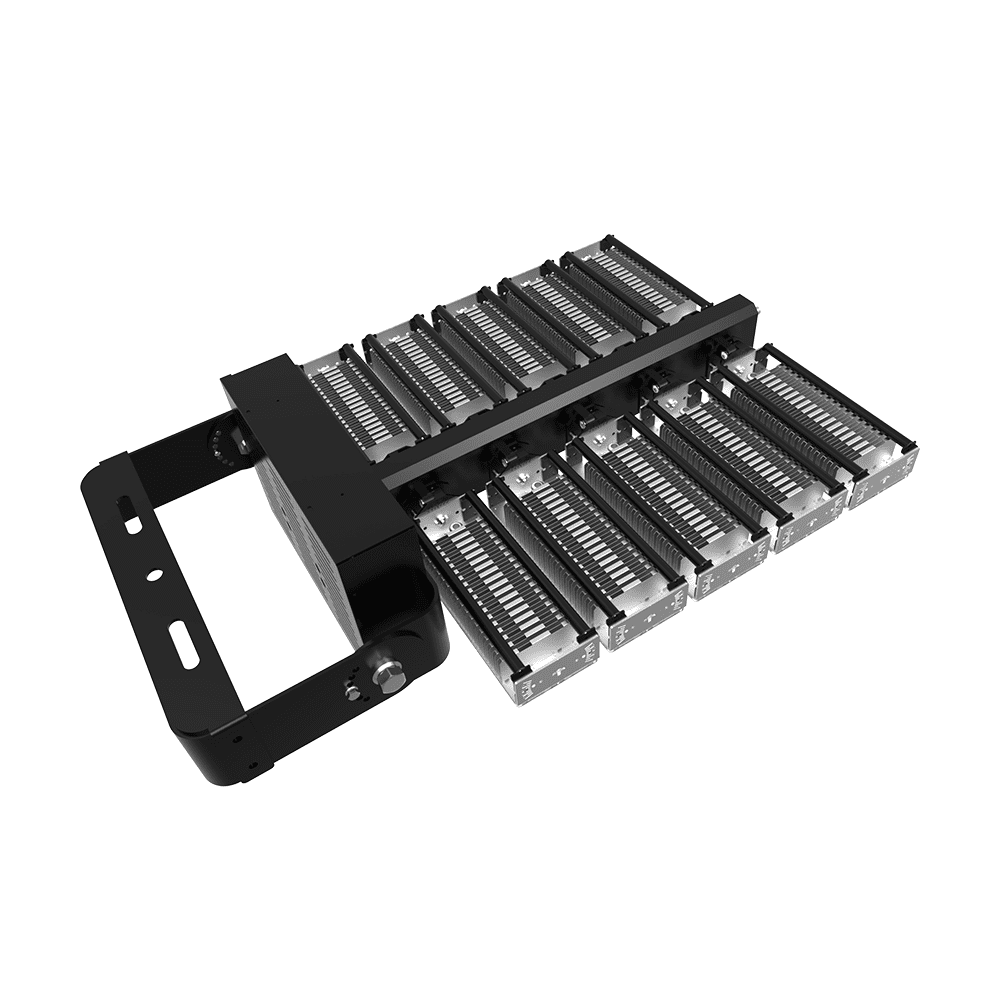

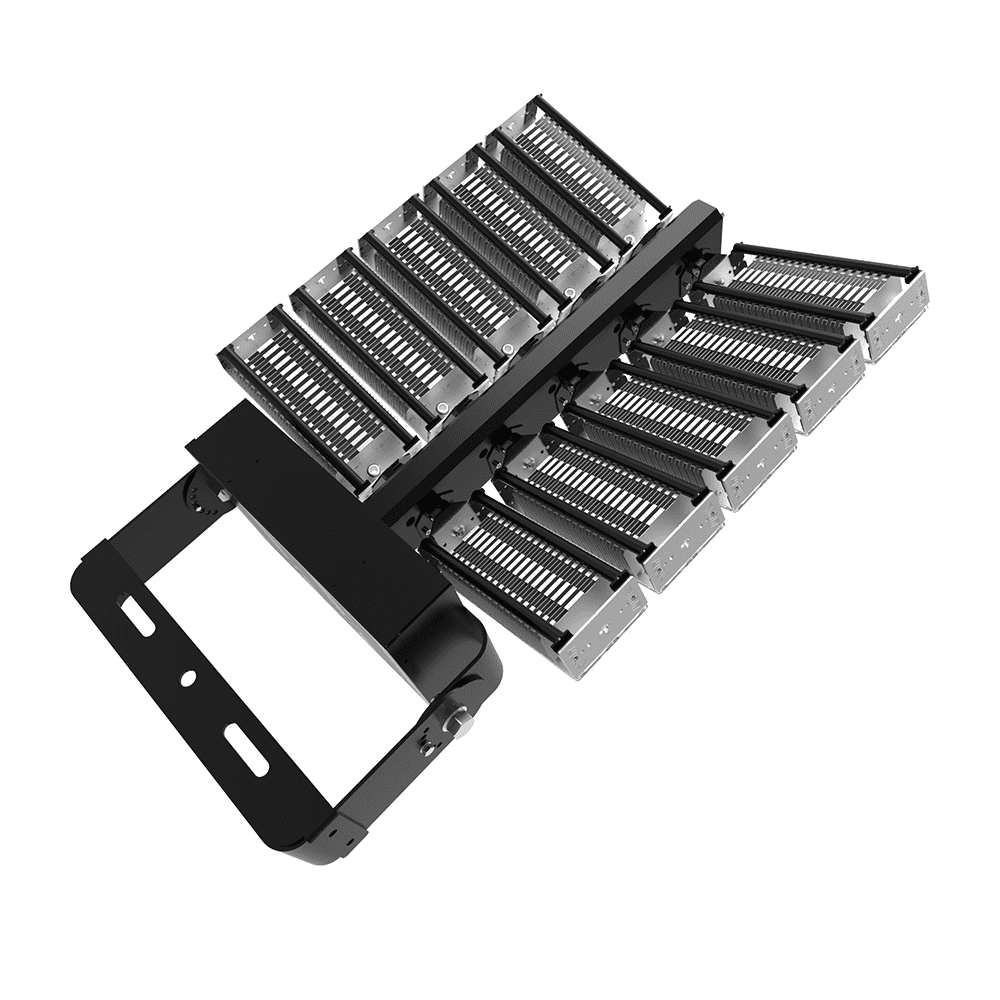

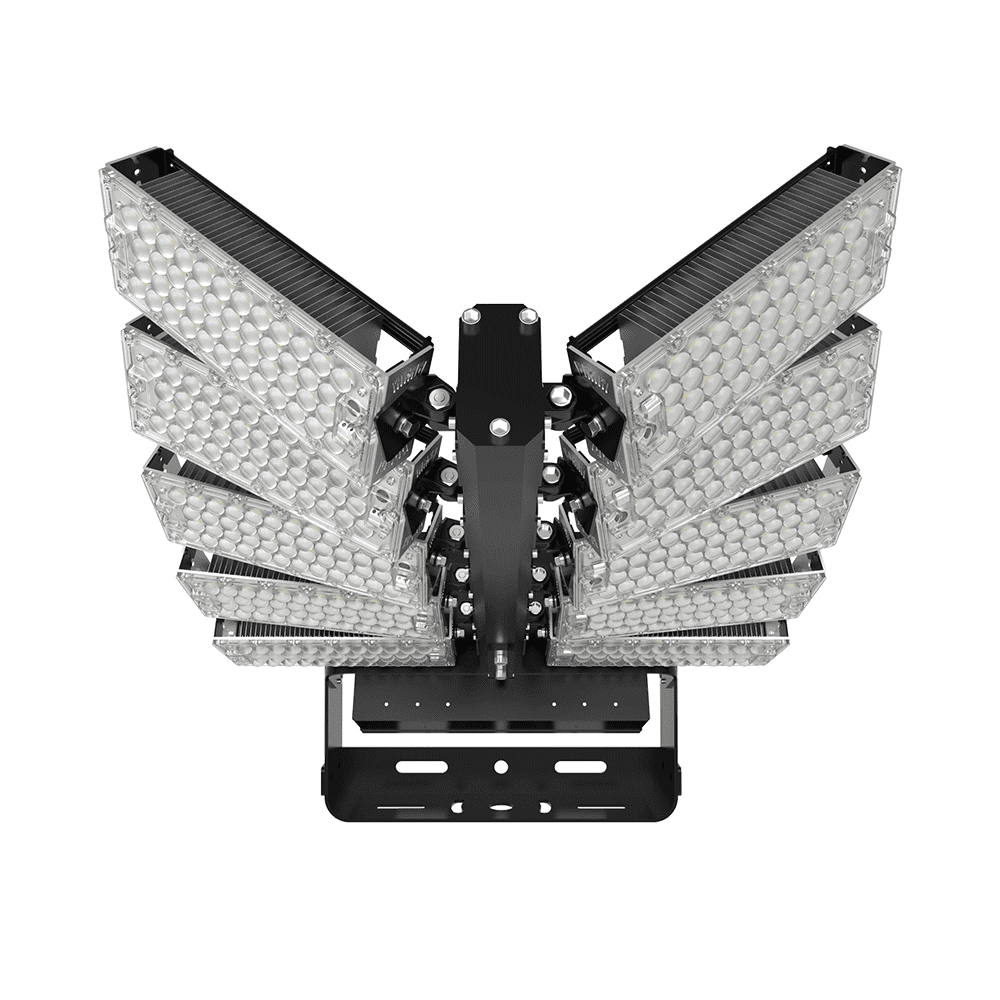

Led sports light (PL-SD-039F)

LEDs & Driver:Lumileds 5050+Meanwell driver
Lumens efficiency:160lm/w±5%

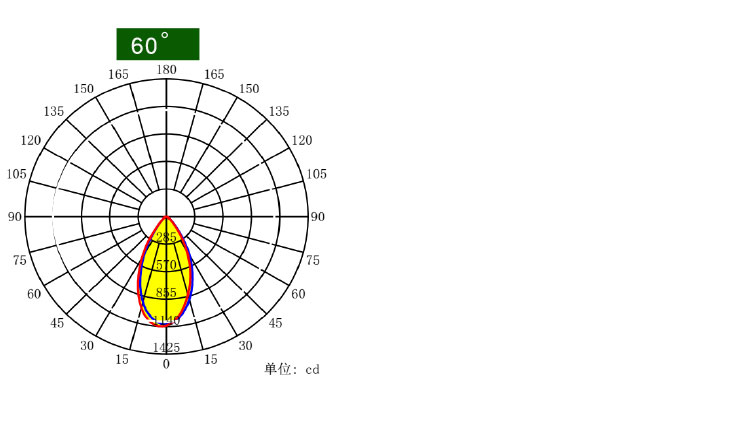

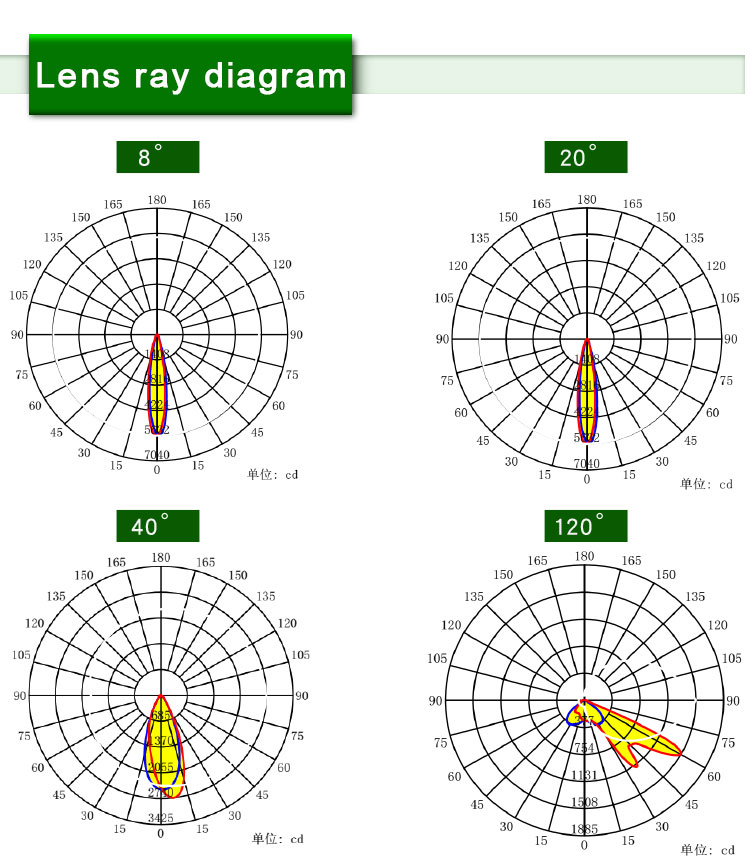

Beam Angle:8° 20° 40° 60°/90°/140x100° /120°
Input Voltage:AC90-305V
CCT:2700-6500K
CRI:>70
Power Factor:>0.9
Operating Temperature:-45°C--50°C
IP &IK:IP66&IK08
Certification:ENEC ,TUV CE, CB, RoHS, SAA
Surge Protection:6-10KV

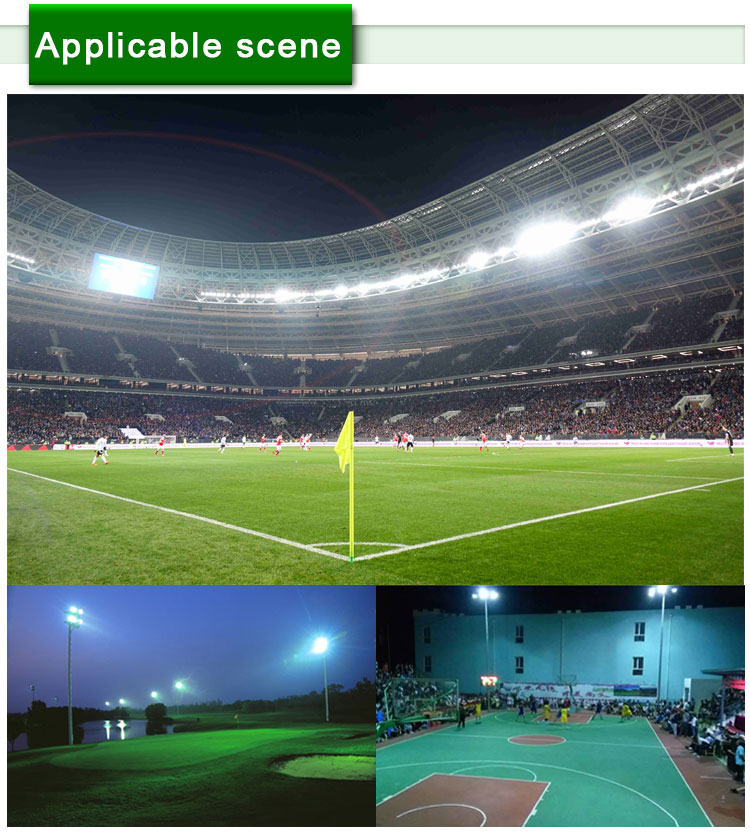

adjustable led stadium sports flood light and wall washing ,stadium light ,8years warranty

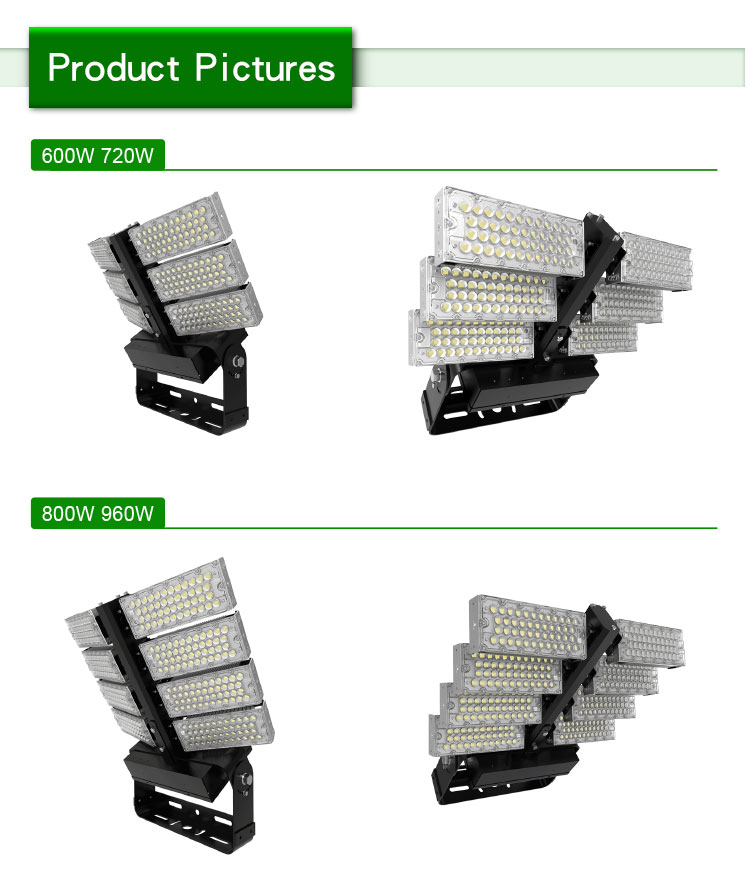

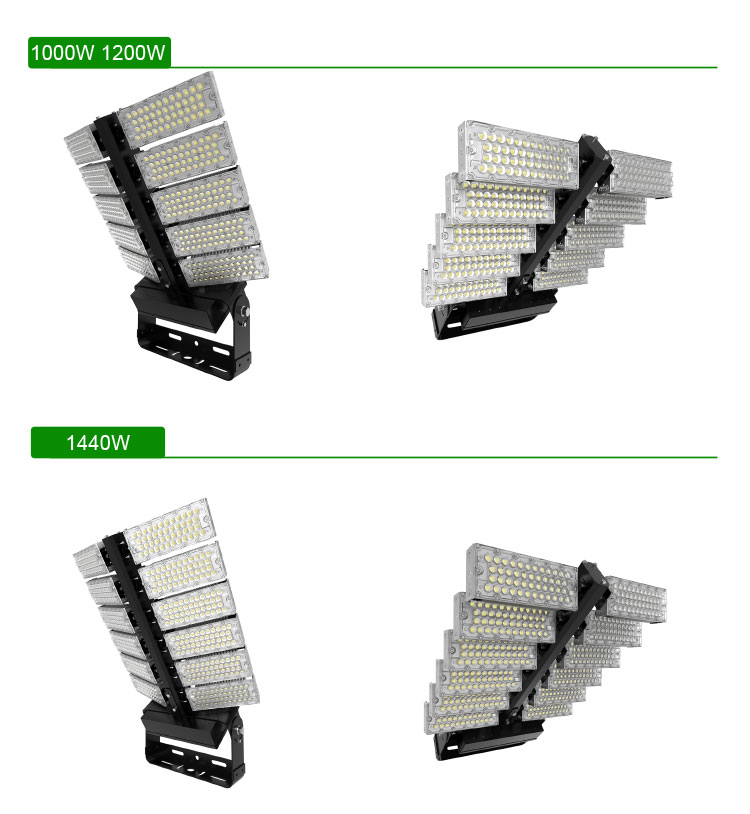

Model No.	PL-SD-039F-600W	PL-SD-039F-720W	PL-SD-039-800W	PL-SD-039F-960W	PL-SD-039F-1000W	PL-SD-039F-1200W	PL-SD-039F-1440W
Watt	600W	720W	800W	960W	1000W	1200W	1440W
Lumen	96000LM	115200LM	96000LM	153600LM	160000LM	192000LM	240000LM

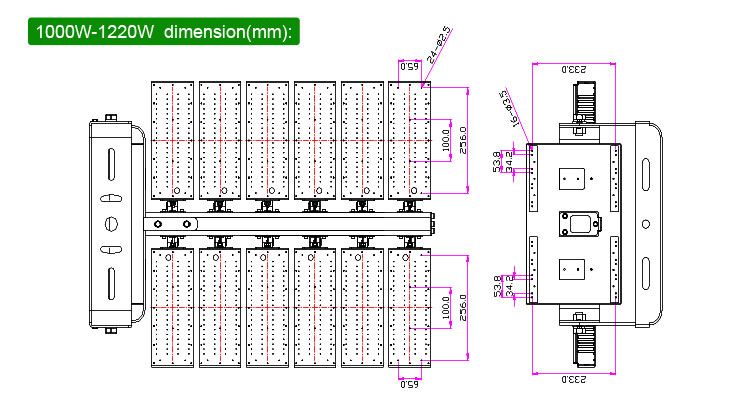

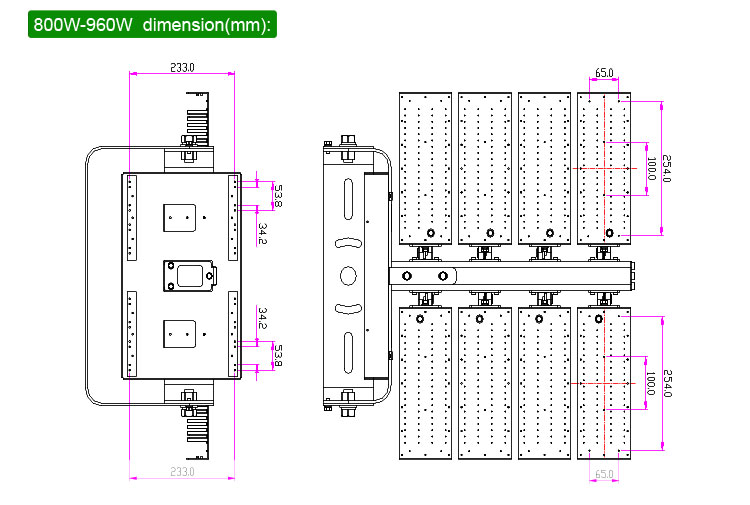

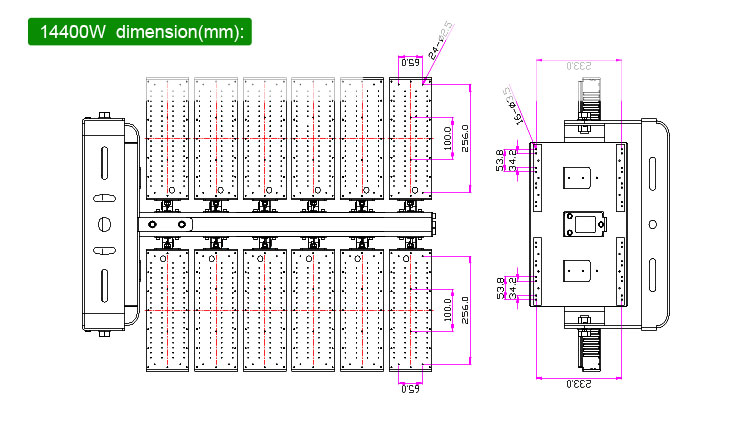

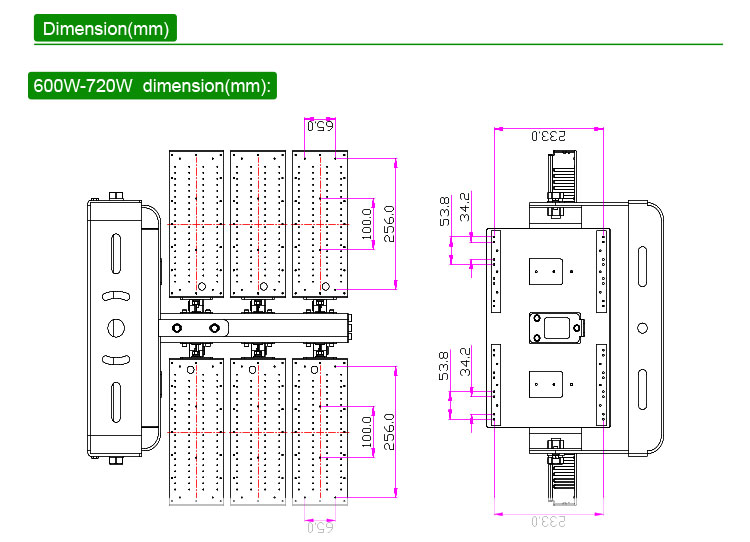

Demension(mm)	694x268x723mm	694x268x723mm	694x268x855mm	694x268x855mm	694x268x987mm	694x268x987mm	694x268x1119mm
Carton size (1pcs/ctn)	77.2x62.8x42.1cm	77.2x62.8x42.1cm	77.2x76x42.1cm	77.2x76x42.1cm	89.2x77.2x42.1cm	89.2x77.2x42.1cm	89.2x77.2x42.1cm
Net.Weight(KG)	21	21	25	25	28.5	28.5	31
Gross.Weight(KG)	22	22	26	25	29.5	29.50	32

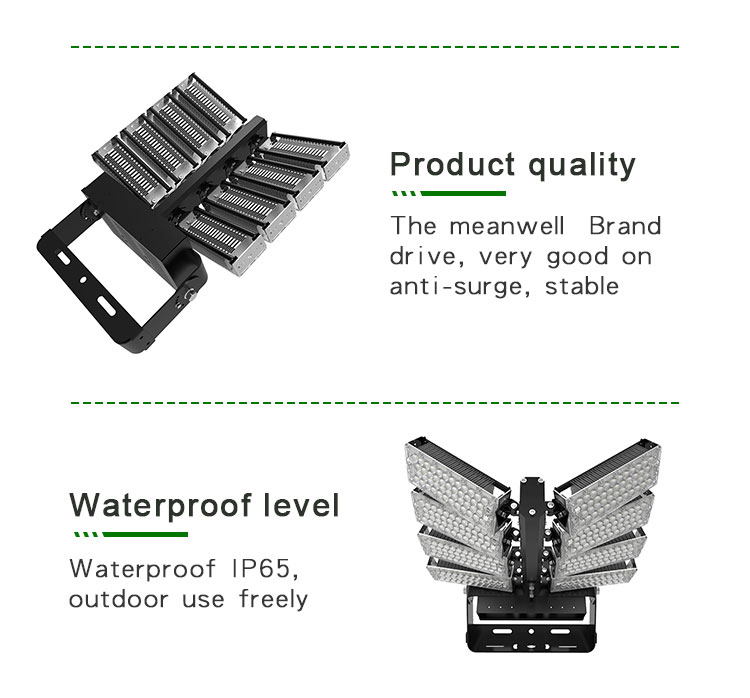

LEDs & Driver	Lumileds 5050+Meanwell driver
Lumens efficiency	160lm/w±5%

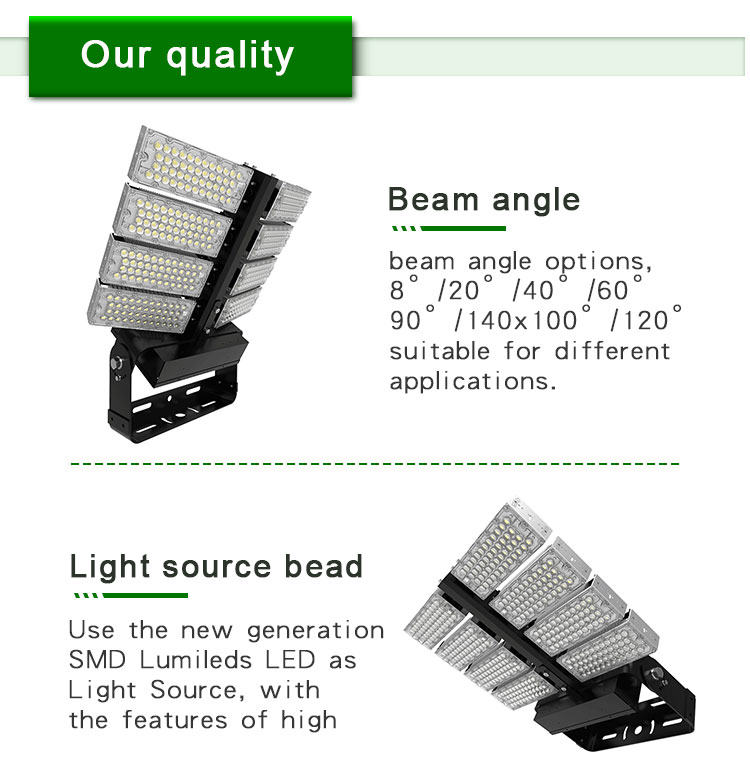

Beam Angle	8° 20° 40° 60°/90°/140x100° /120°
Input Voltage	AC90-305V
CCT	2700-6500K
CRI	>70
Power Factor	>0.9
Operating Temperature	-45°C--50°C
IP &IK	IP66&IK08
Certification	ENEC ,TUV CE, CB, RoHS, SAA
Surge Protection	6-10KV

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
