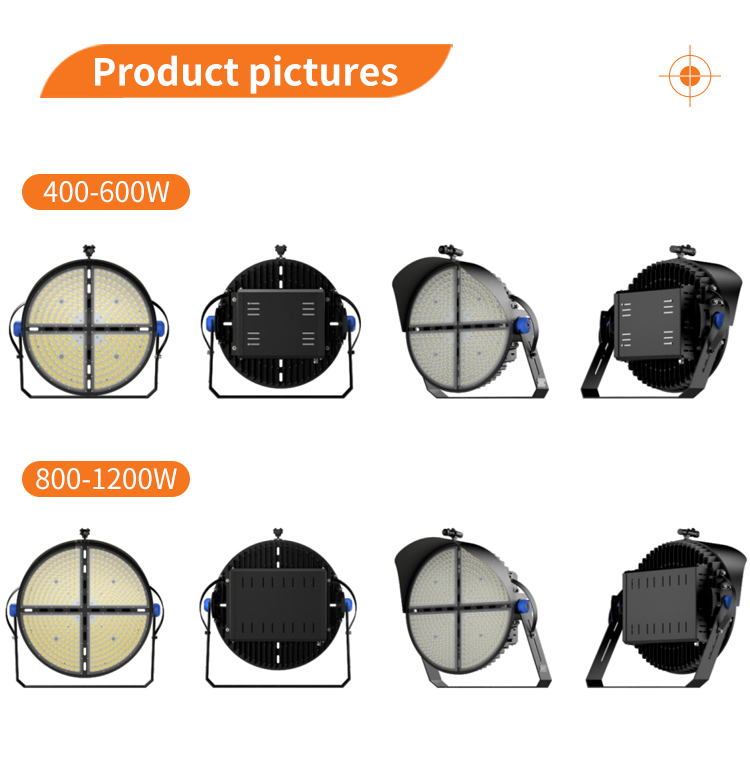

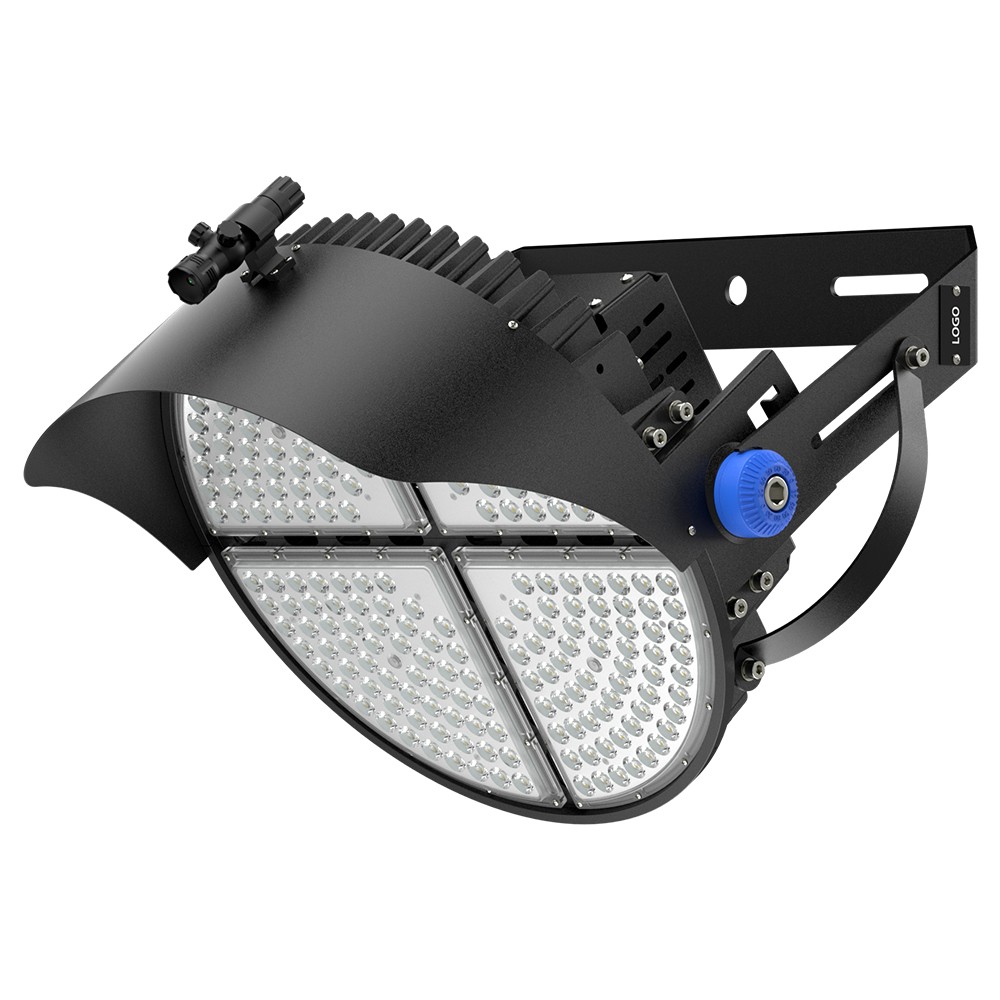

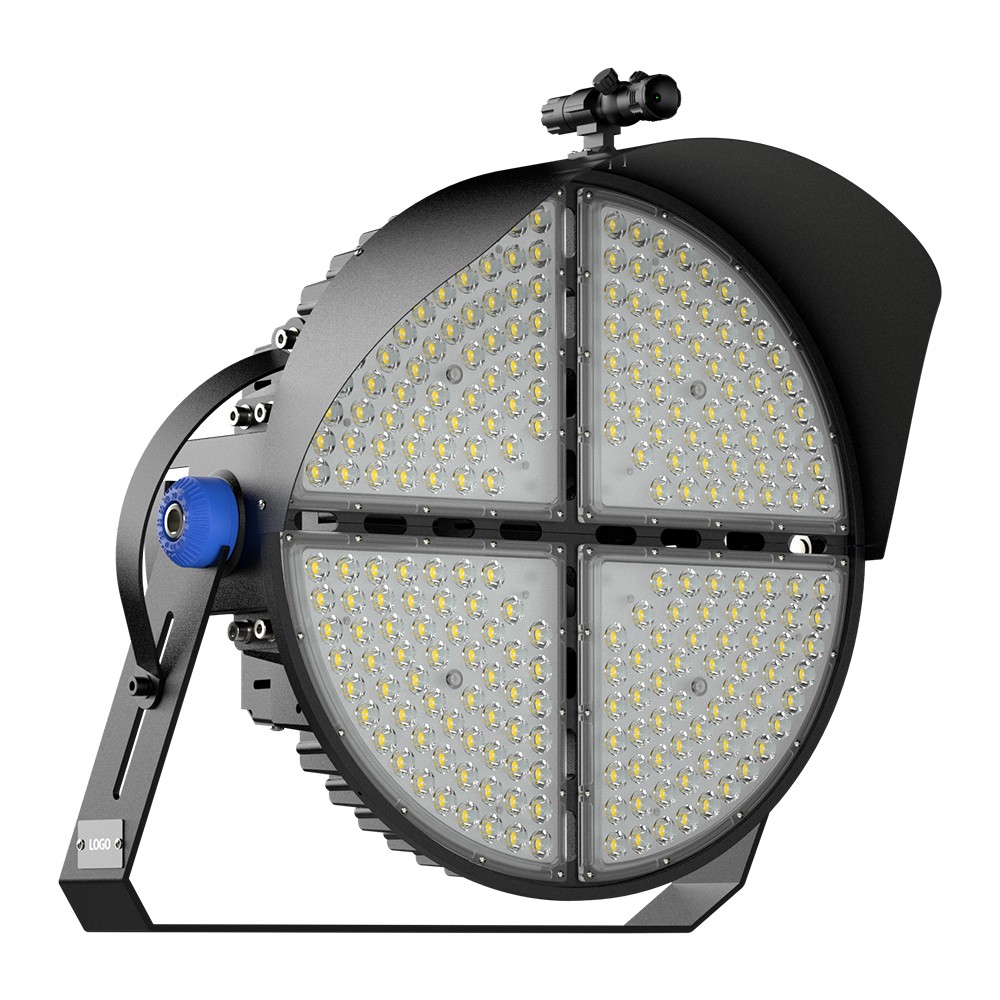

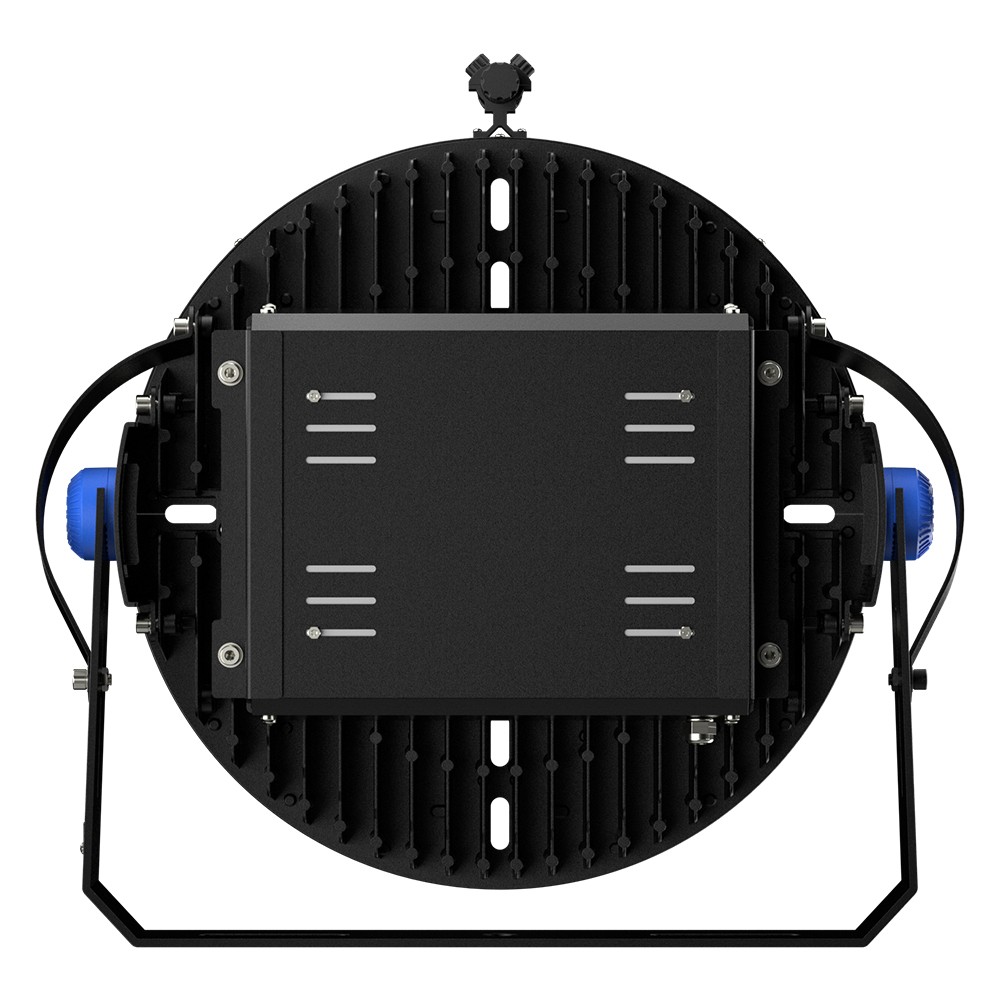

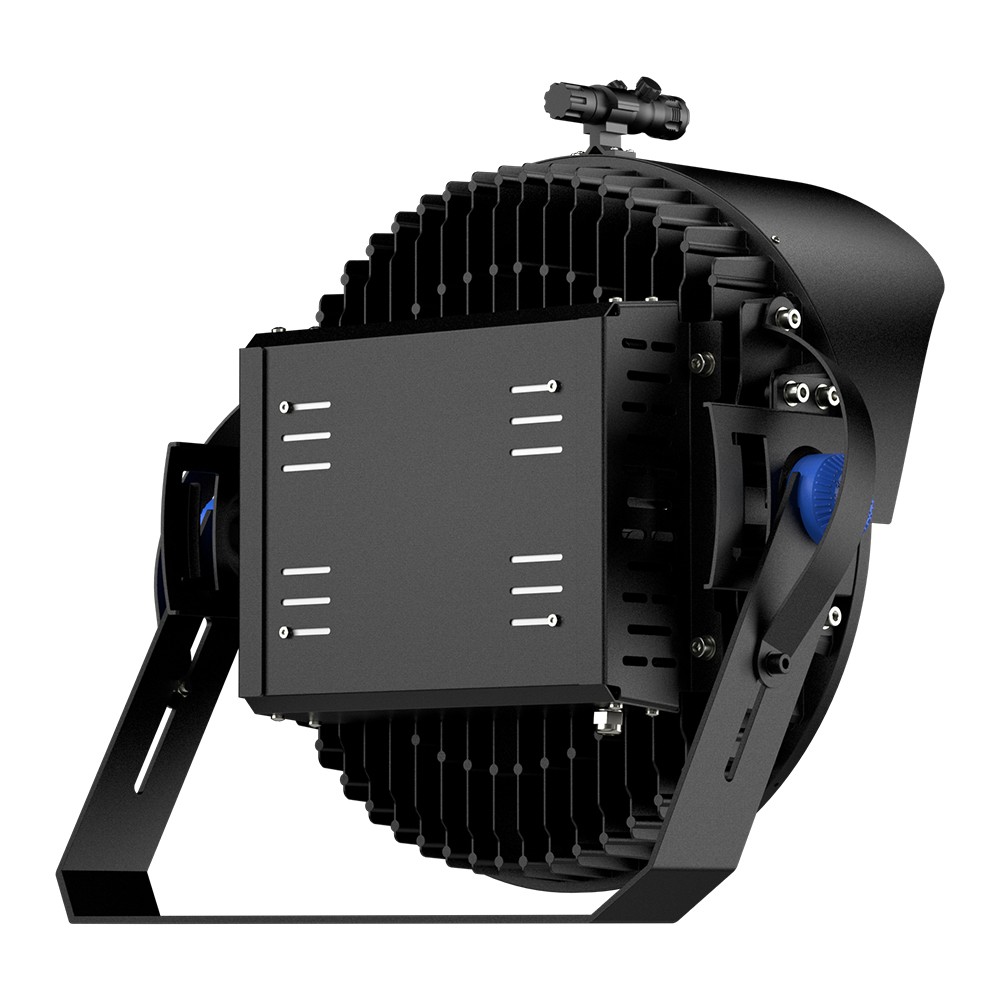

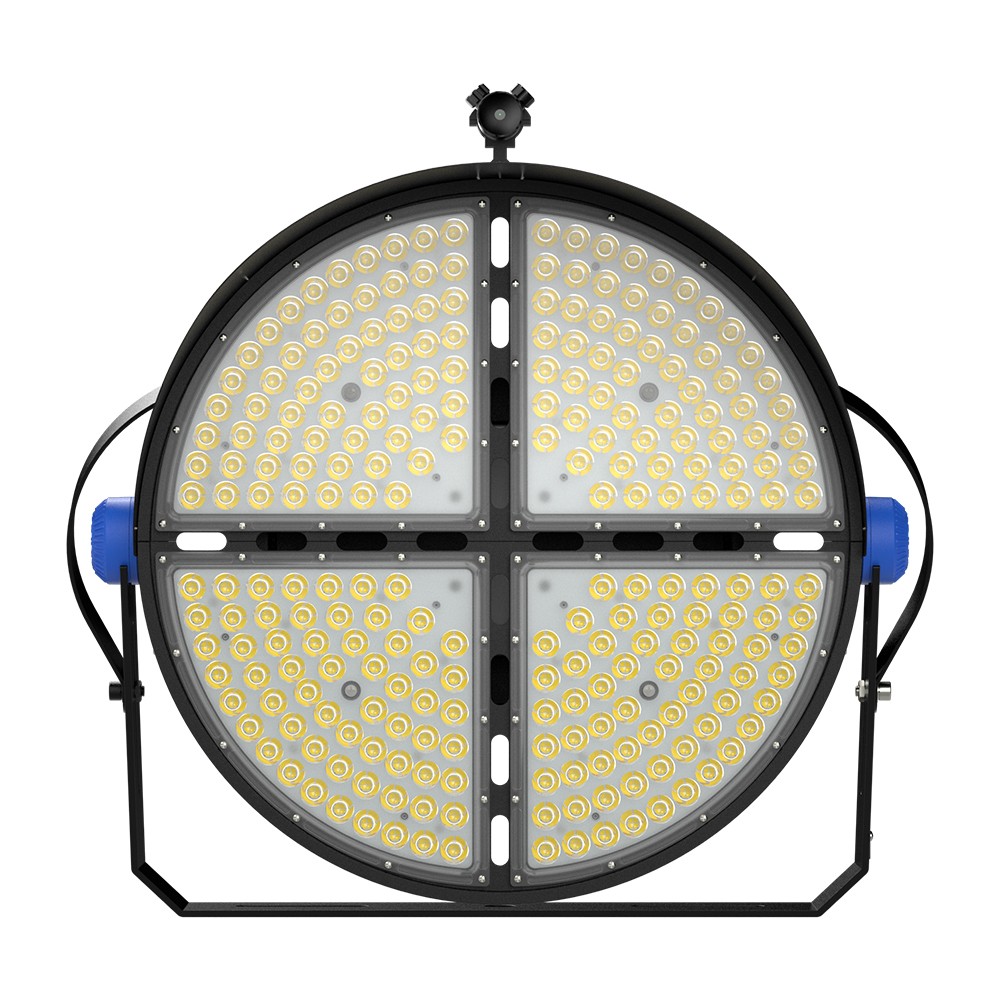

Led sports light (PL-SD-039T)

LEDs & Driver:lumileds +meanwell/inventronics
Input Voltage:AC90-305V
CCT 2200K,3000K,4000K,5000K,5700K,6500K
CRI >70/80
Power Factor:>0.9
Operating Temperature:-30°C--50°C
IP&IK Degree:IP65/IP67/IK08
Certification:TUV-CE(EMC.LVD, RoHS)/SAA/CB
Surge Protection:6-10/20KV

Five-Year Warranty New Design 140lm/W IP66 ETL Waterproof LED Sports Light

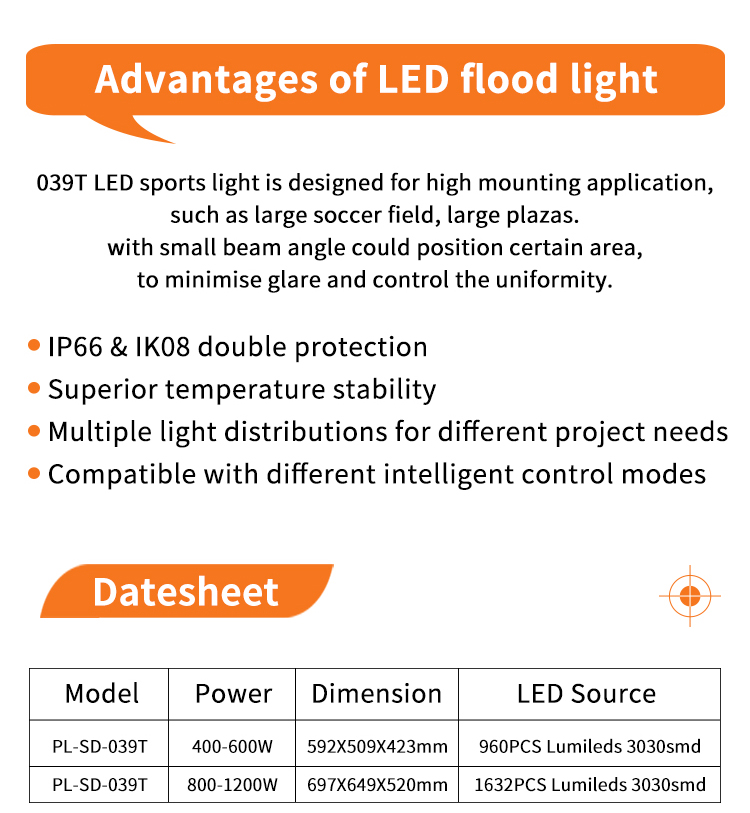

Datesheet:

Model	PL-SD-039T
Power	400-600W	800-1200W

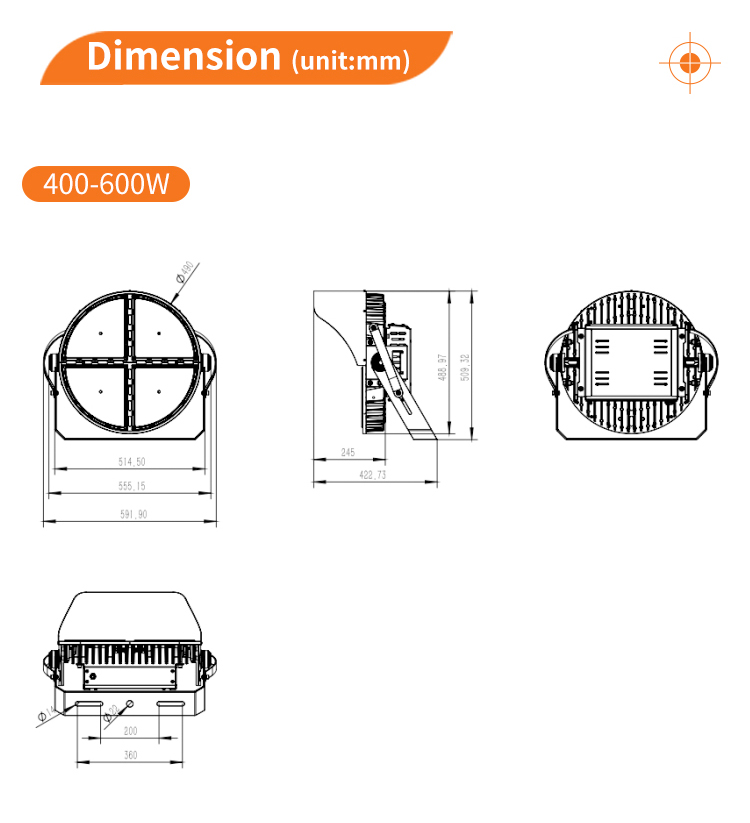

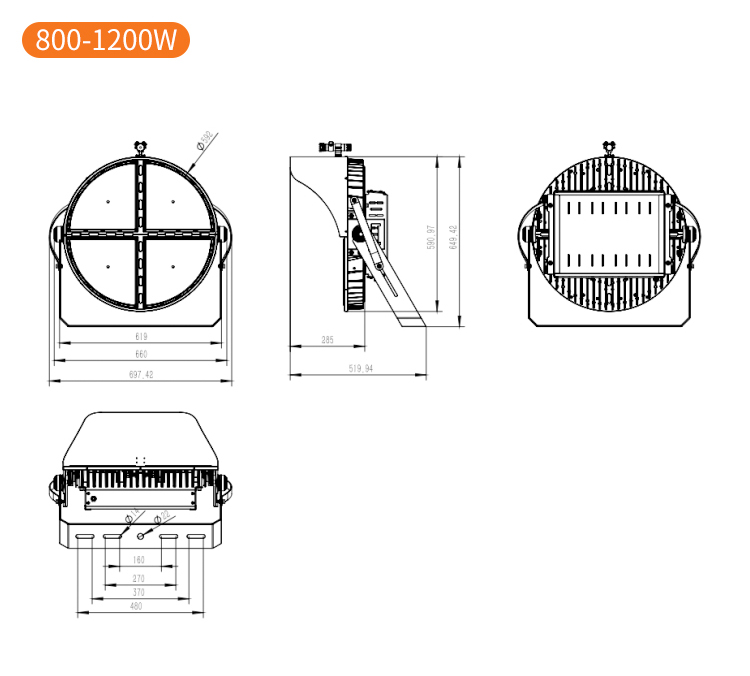

Dimension	592X509X423mm	697X649X520mm

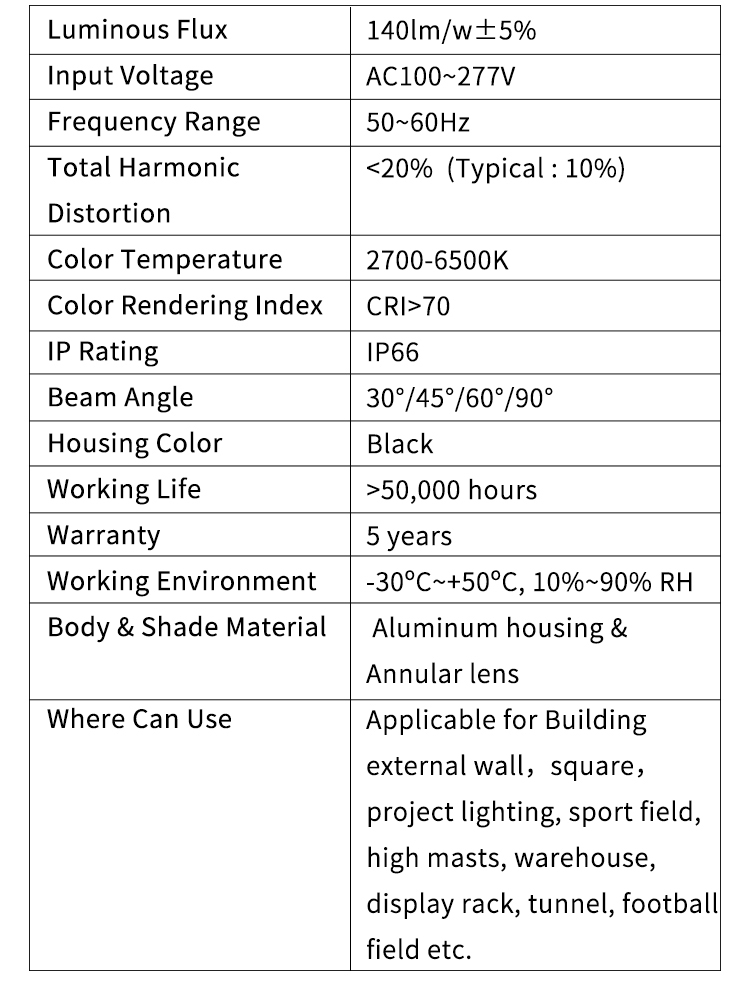

Luminous Flux	140lm/w±5%
LED Source	960PCS Lumileds 3030	1632PCS Lumileds 3030
Input Voltage	AC100~277V
Frequency Range	50~60Hz
Total Harmonic Distortion	<20% (Typical : 10%)
Color Temperature	2700-6500K
Color Rendering Index	CRI>70
IP Rating	IP66
Beam Angle	30°/45°/60°/90°
Housing Color	Black
Working Life	>50,000 hours

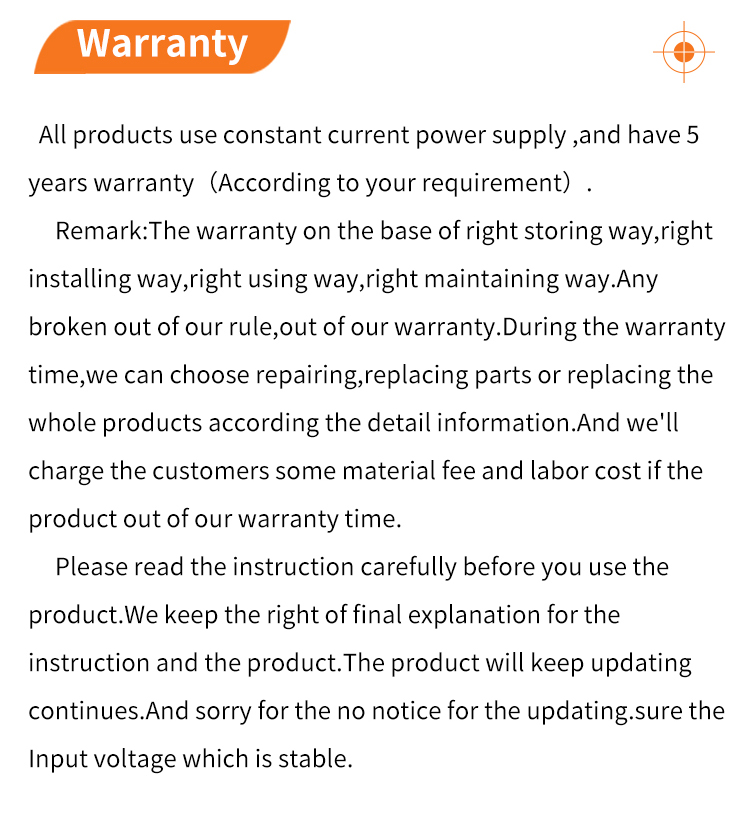

Warranty	5 years
Working Environment	-30ºC~+50ºC, 10%~90% RH

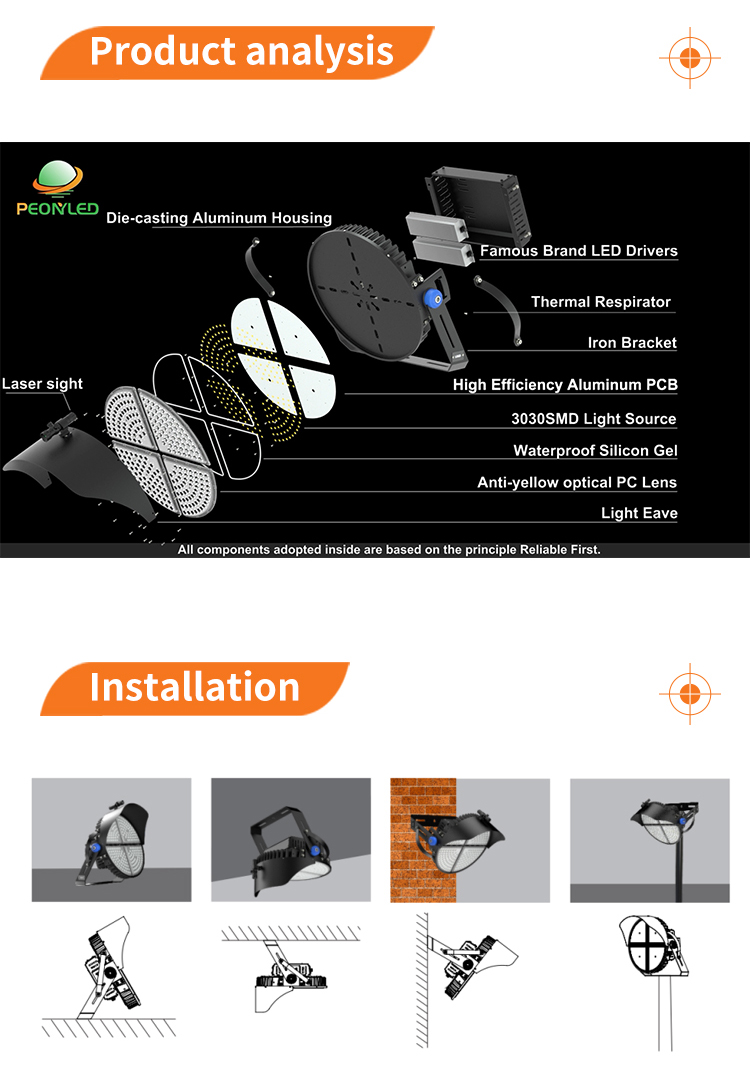

Body & Shade Material	Aluminum housing & Annular lens

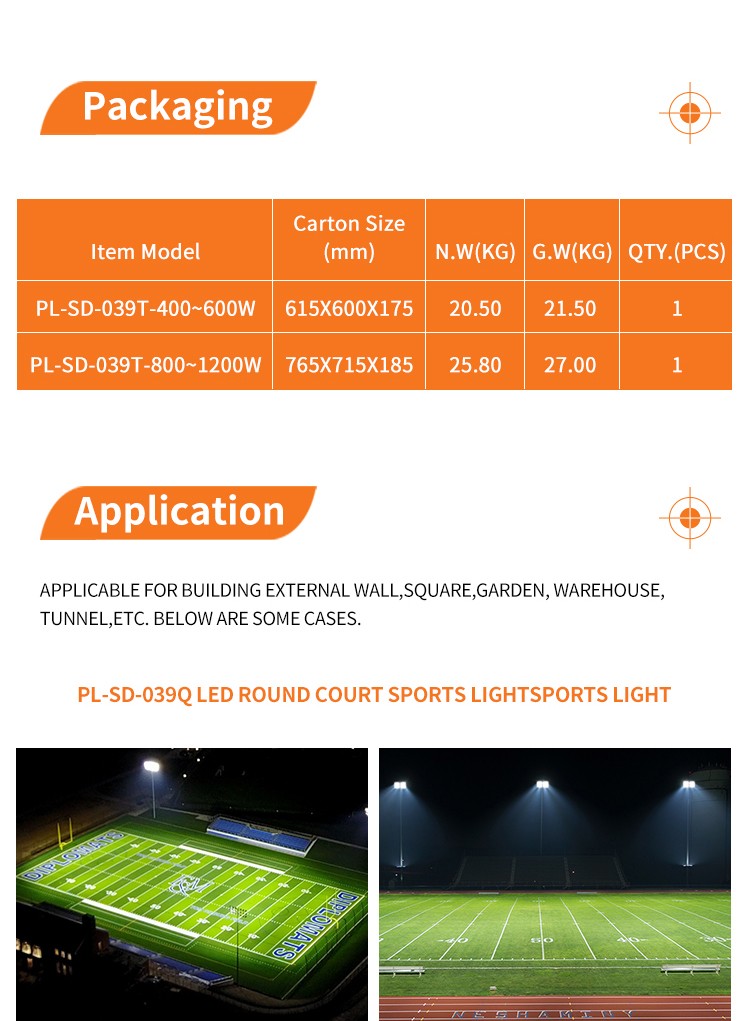

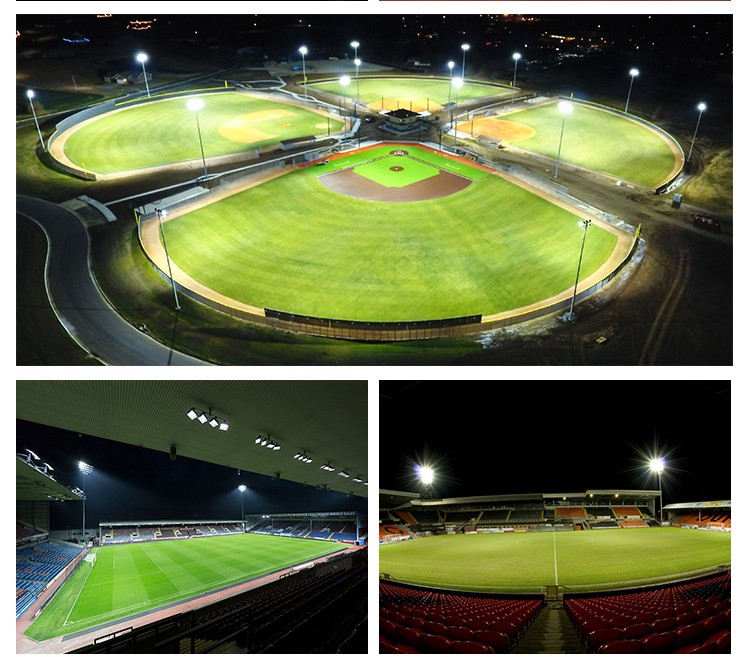

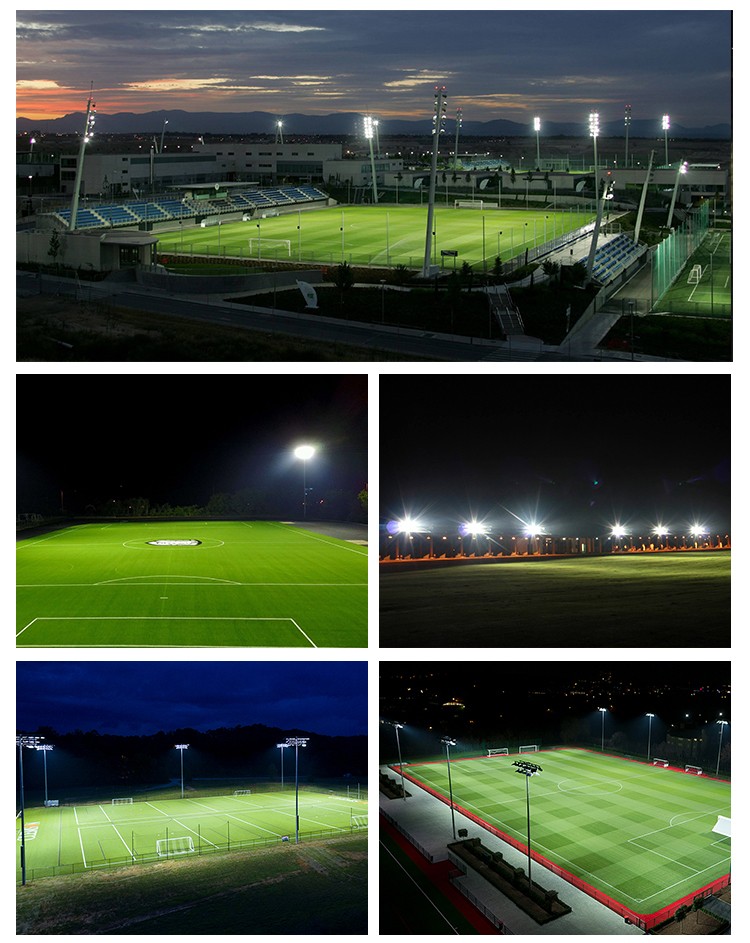

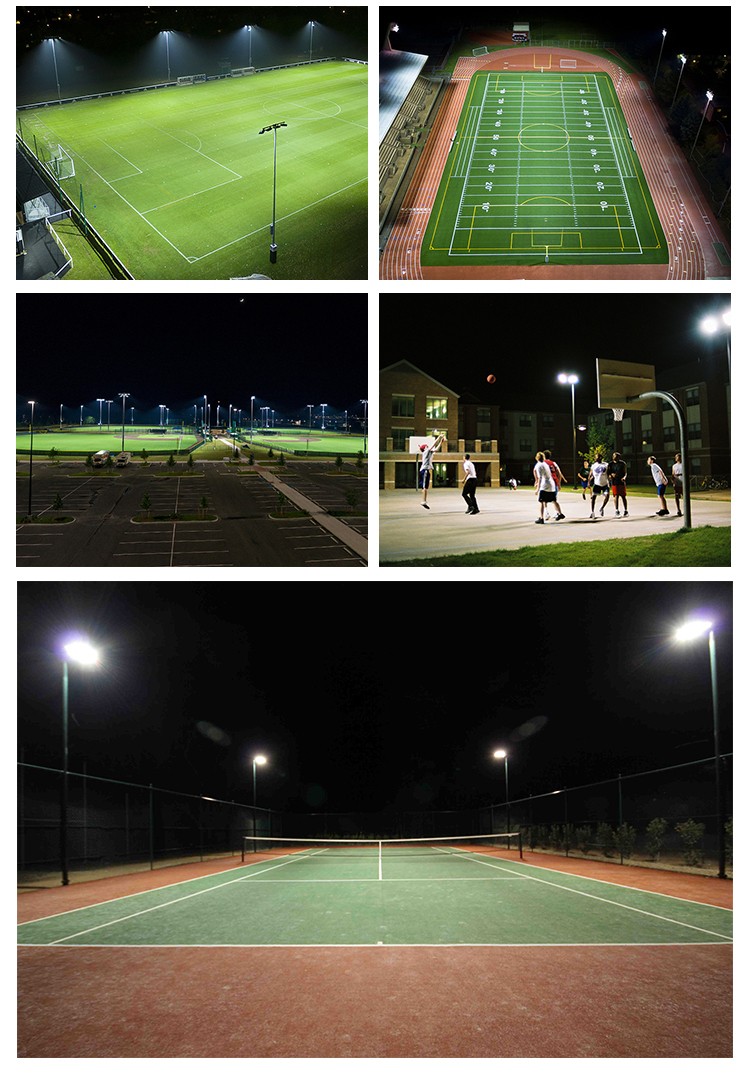

Where Can Use	Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
