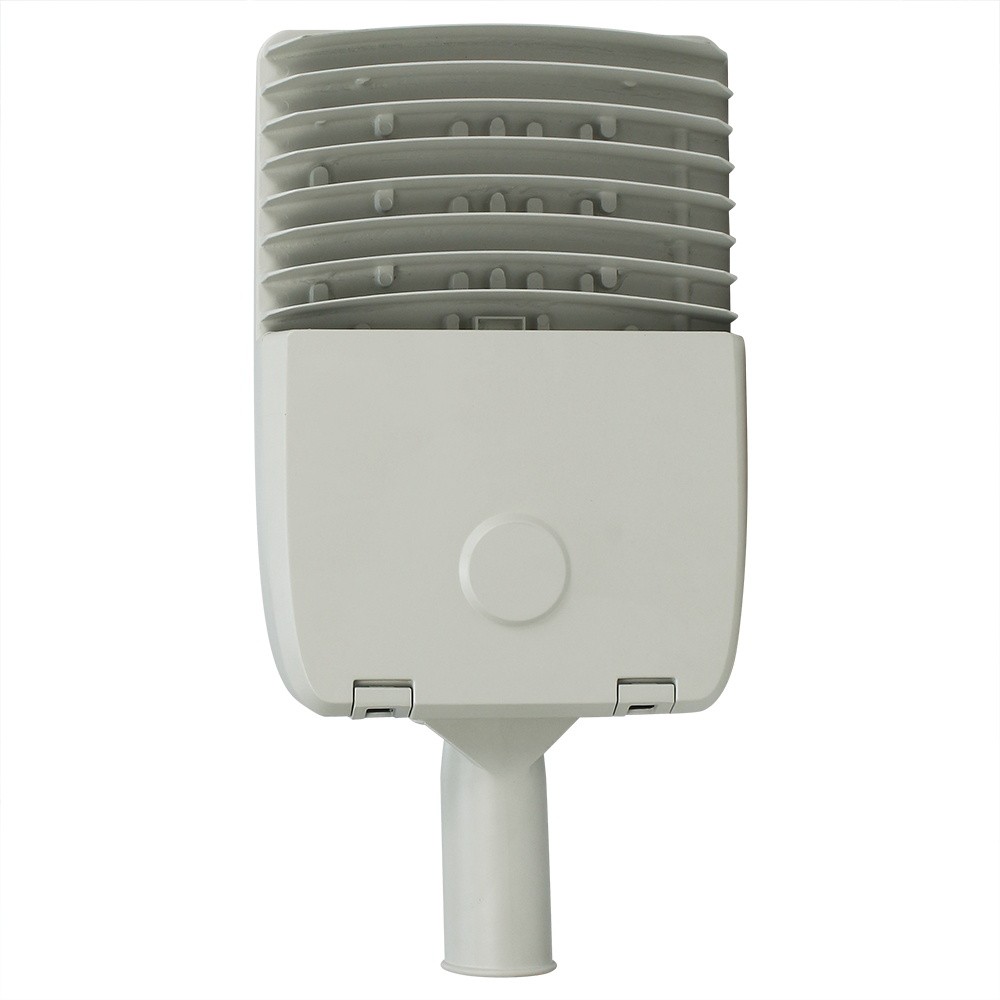

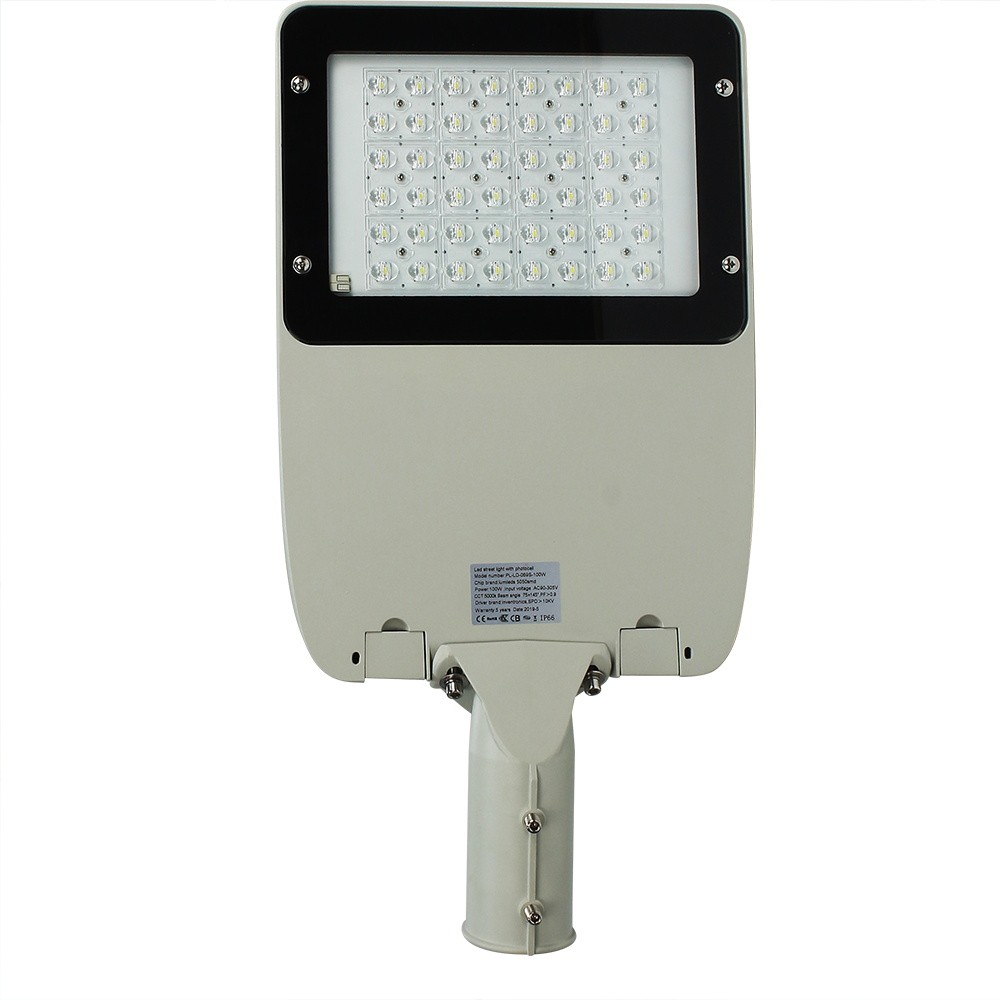

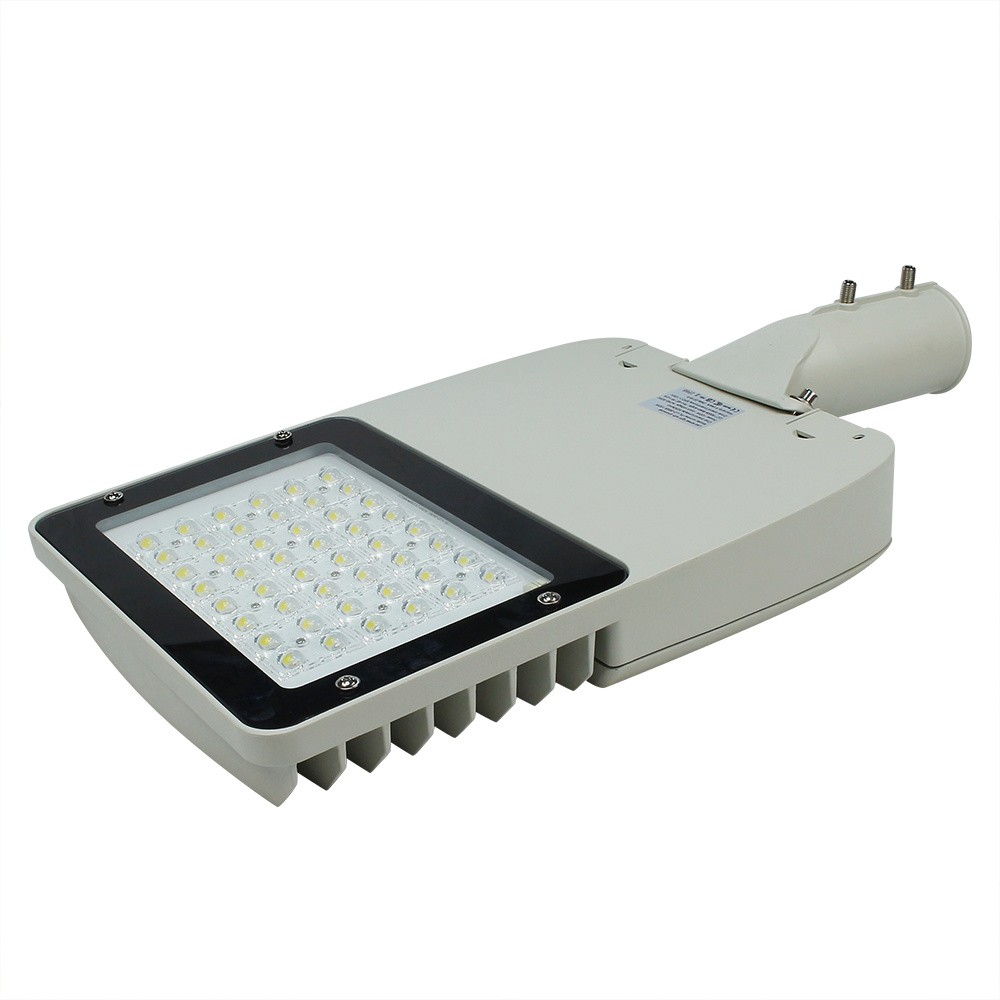

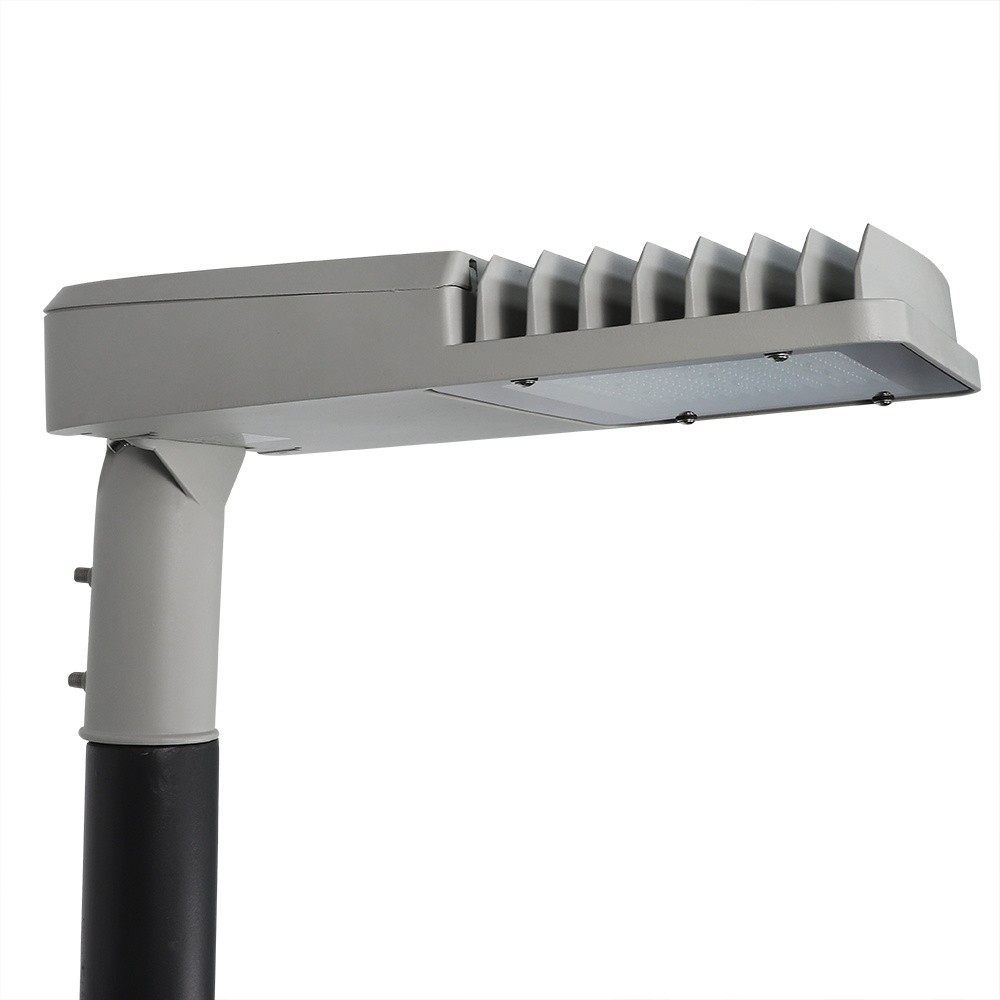

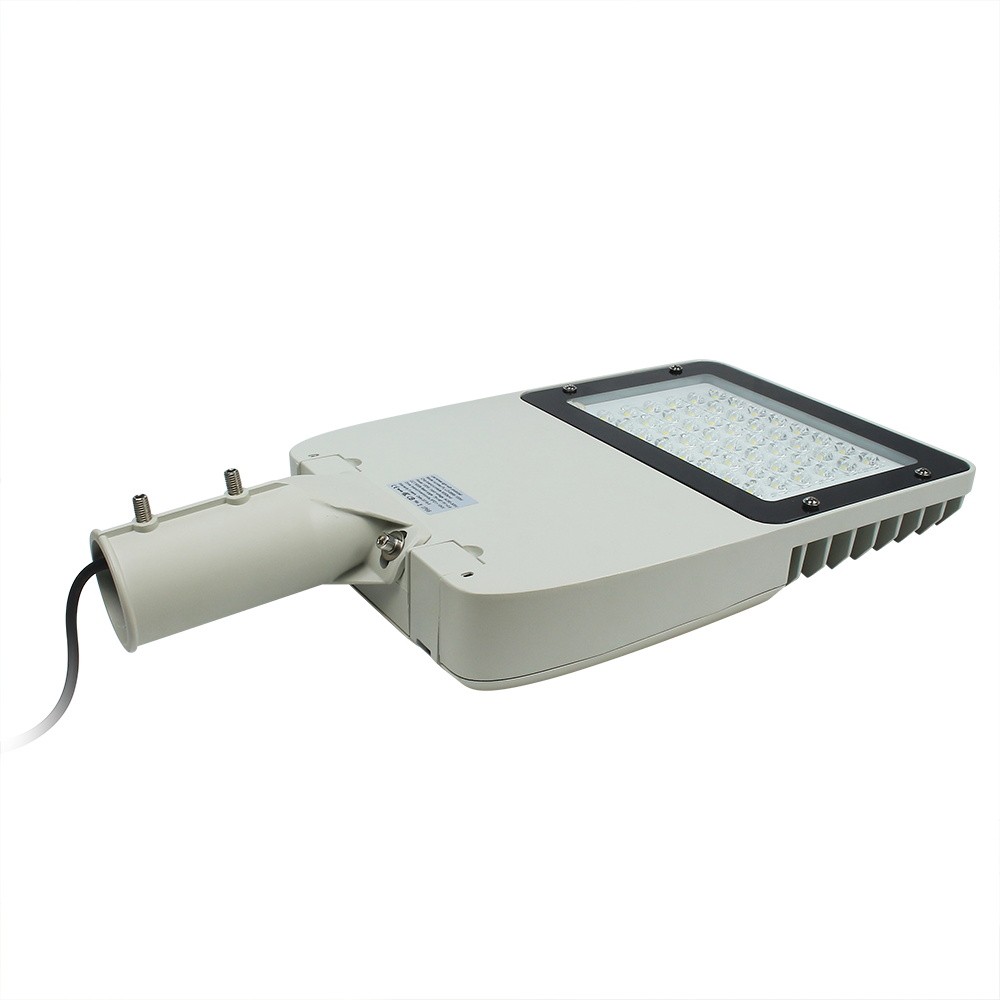

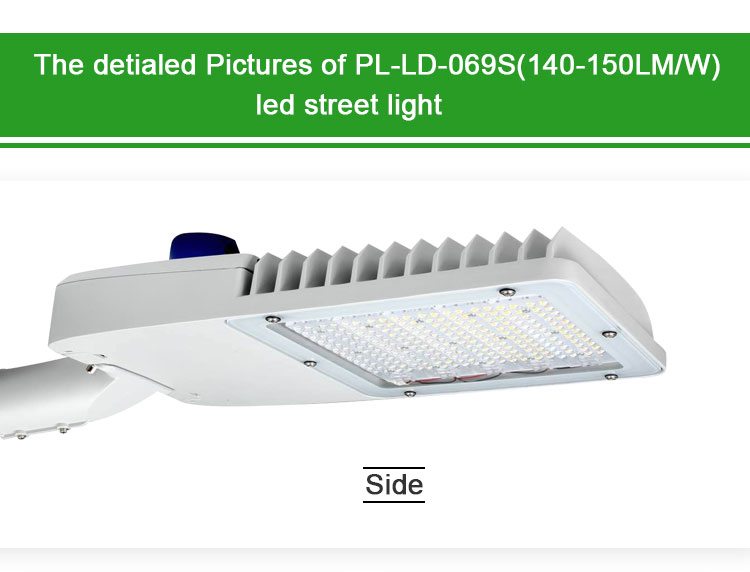

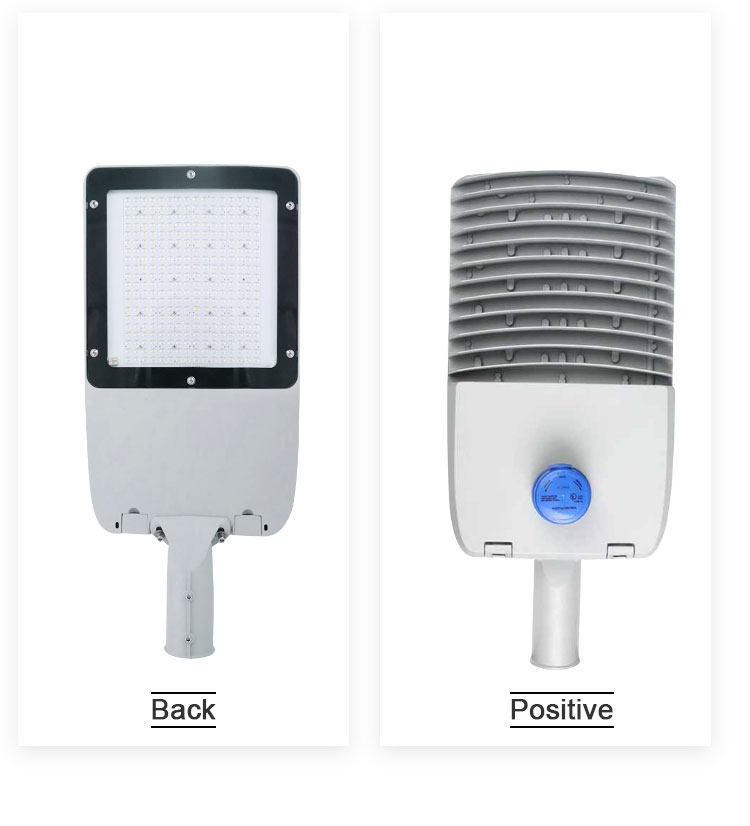

Led Street Light (PL-LD-069S)

LED chip:Lumileds 5050SMD
CRI:Ra>70/80
Power Factor:>0.95
Light efficiency:150LM/W±5%

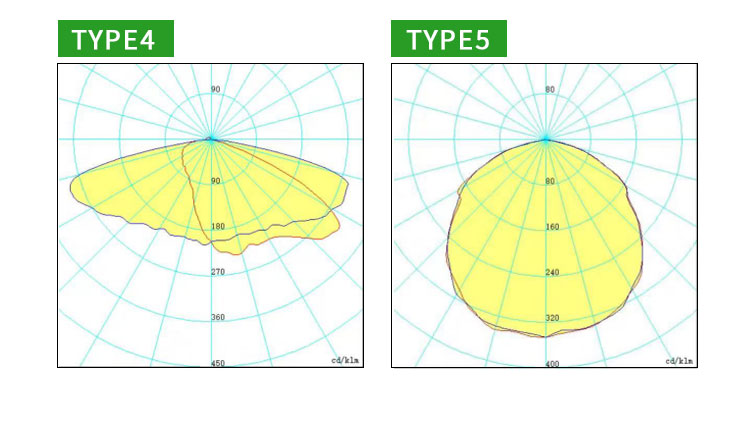

Beam angle :T2 T3 T4 T5
LED driver brand: Inventronics, Meanwell driver ELG/HLG series
Surge protection:6KV/10KV/20KV as customers' rerquirement
Waterproof and IK:IP66 IK10
Housing material:Die-cast Aluminum +Steel glass
Storage temperature: -40℃~85℃ 10%~90% H.R
Work temperature:-40℃~50℃ 20%~90% H.R
Lifespan:100000 hours

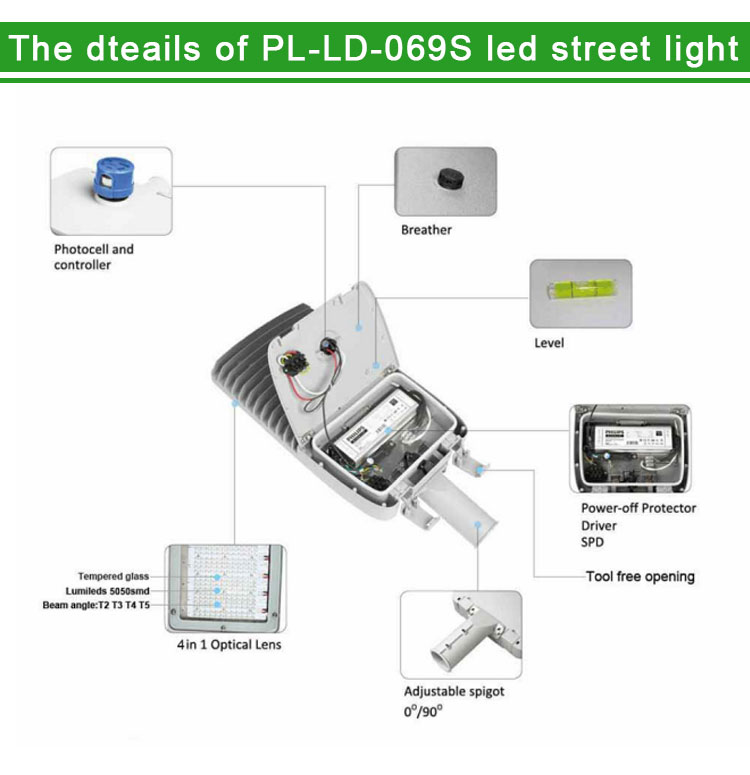

Options:Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7 Pin socket
Certificates:CE ROHS SAA CB ENEC IK10 IP66 LM80 LM79 TM21
warranty:5 -8years

Led street light manufacturers road lighting Peony Led street light

LED Street light Specifications
Model	PL-LD-069S	PL-LD-069S	PL-LD-069S
Input Voltage	100-305 V AC
Power	30W 40W 50W 60W 70W 80W 90W 100w 120W	150W 180W 200W	240W 300W

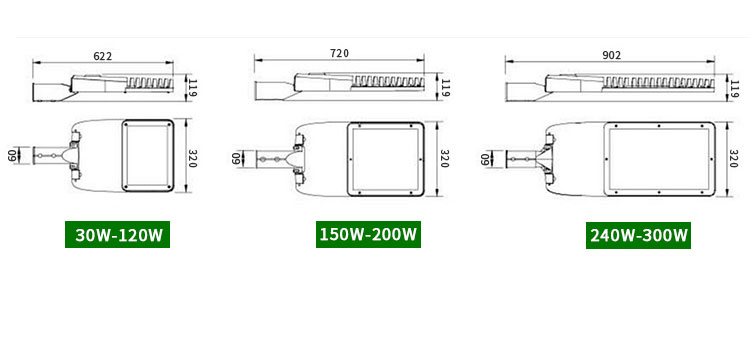

Size(mm)	622320119mm	720320119mm	902320119mm
LED chip	Lumileds 5050SMD
CRI	Ra>70/80
Power Factor	>0.95
Light efficiency	150LM/W±5%

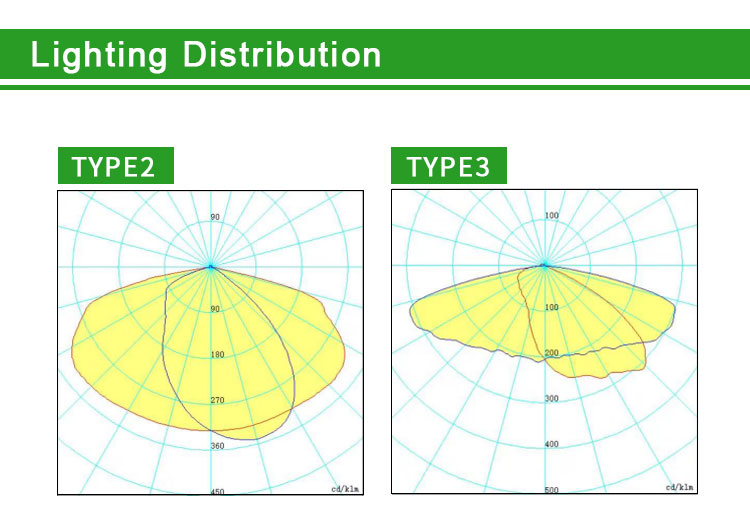

Beam angle	T2 T3 T4 T5
LED driver brand	Inventronics, Meanwell driver ELG/HLG series
Surge protection	6KV/10KV/20KV as customers' rerquirement

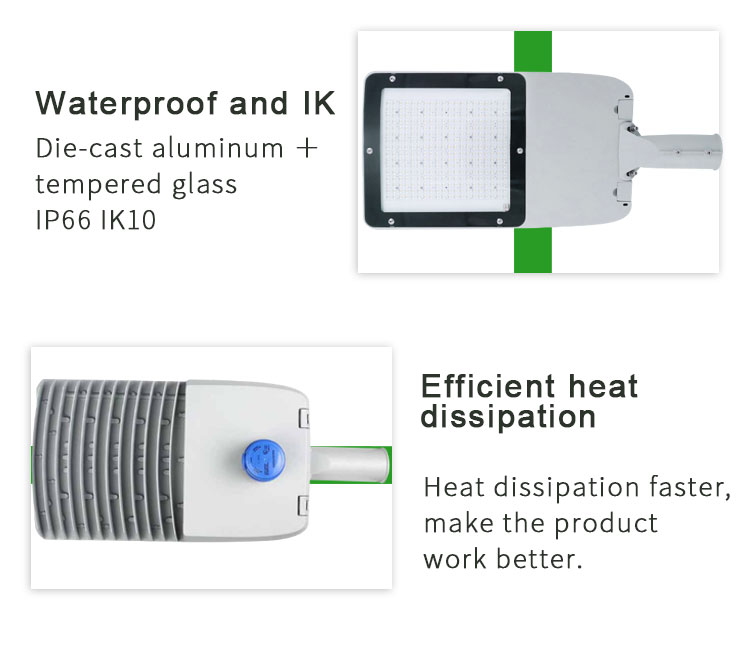

Waterproof and IK	IP66 IK10
Housing material	Die-cast Aluminum +Steel glass
Storage temperature	-40℃~85℃ 10%~90% H.R
Work temperature	-40℃~50℃ 20%~90% H.R
Lifespan	100000 hours
Options	Photocell ,PWM /DALI/1-10V/Timing/Daylight sensor/Nema 7 Pin socket
Certificates	CE ROHS SAA CB ENEC IK10 IP66 LM80 LM79 TM21
warranty	5 -8years

FAQ

Q: Whether the LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
