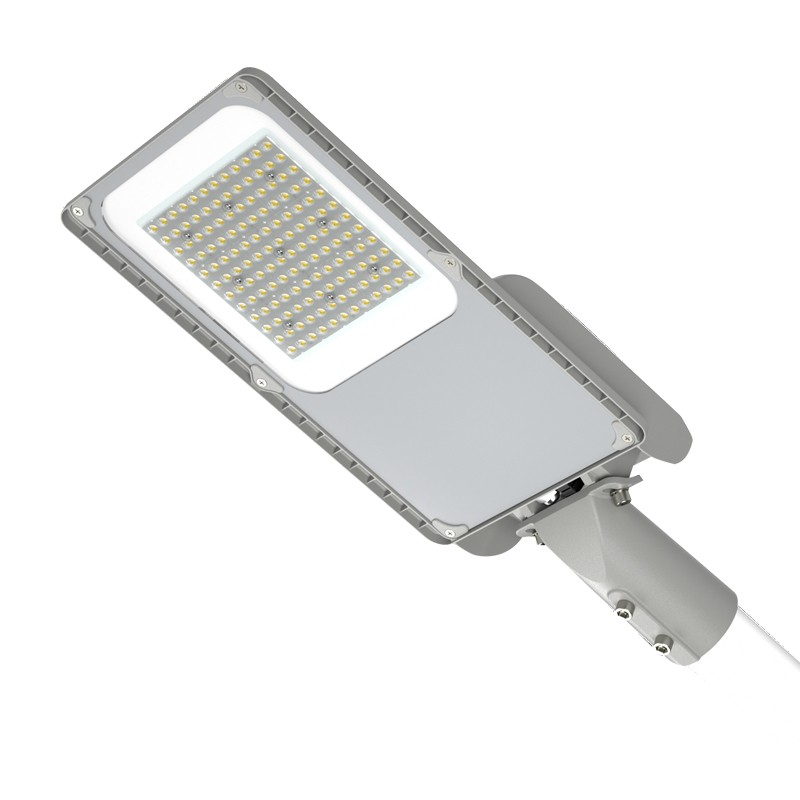

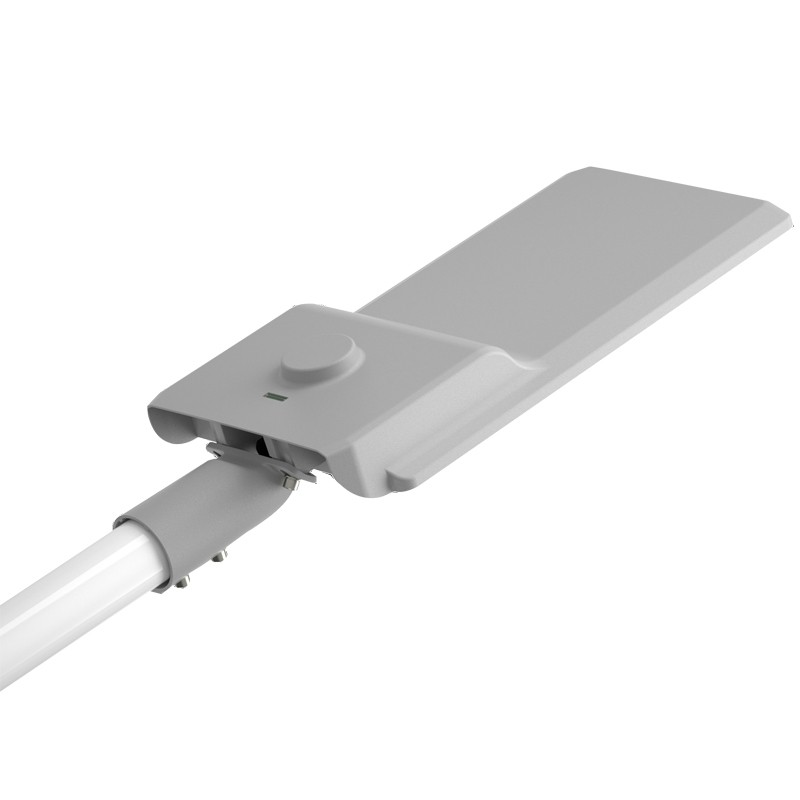

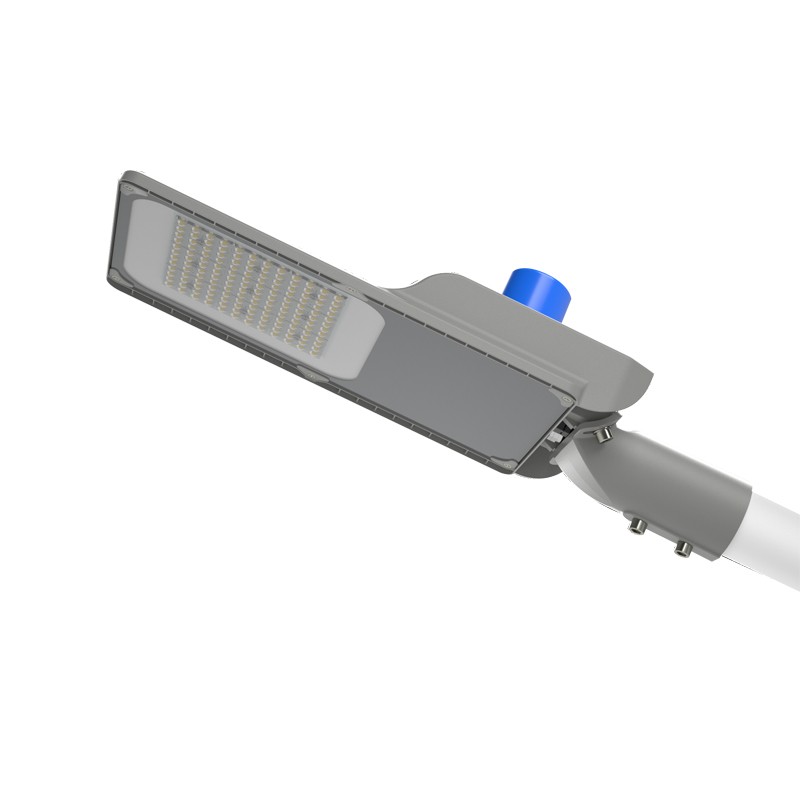

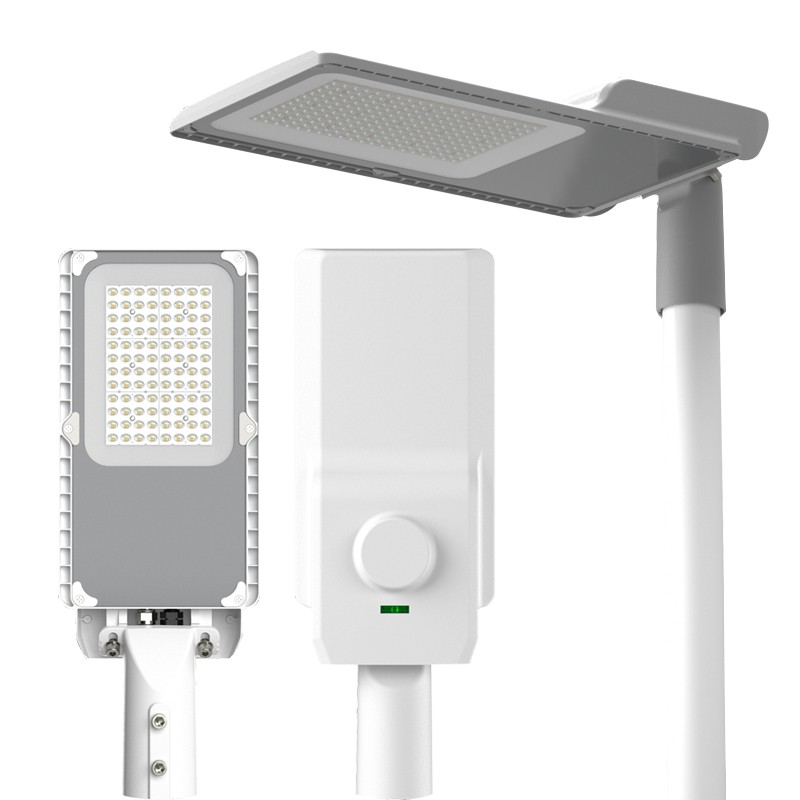

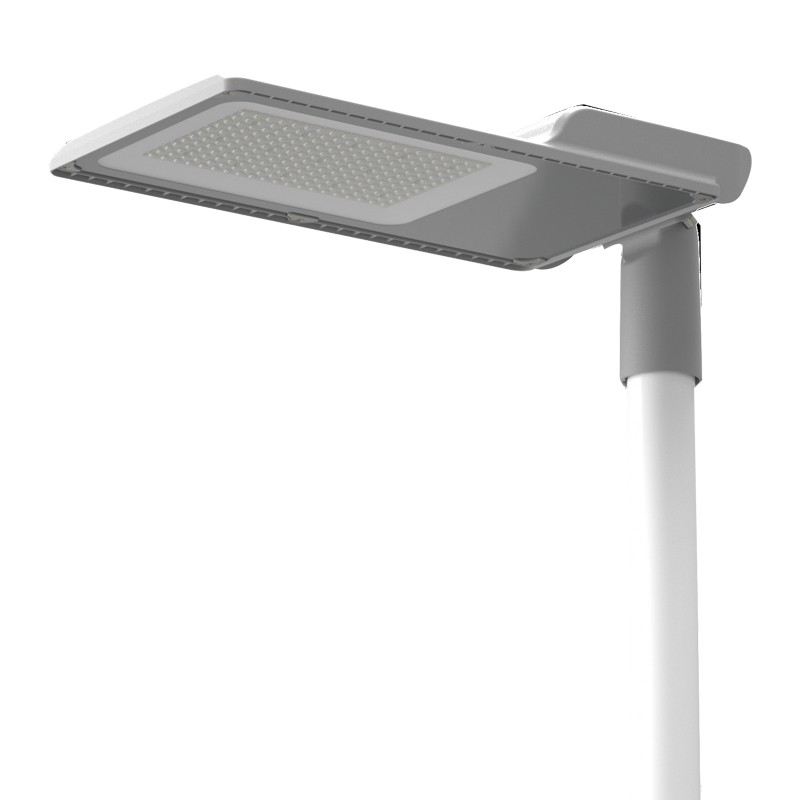

CB ENEC SAA CE High Lumen Dali Intelligent Lighting SMD IP66 80W 100W 200W LED Street Light Fixture Light

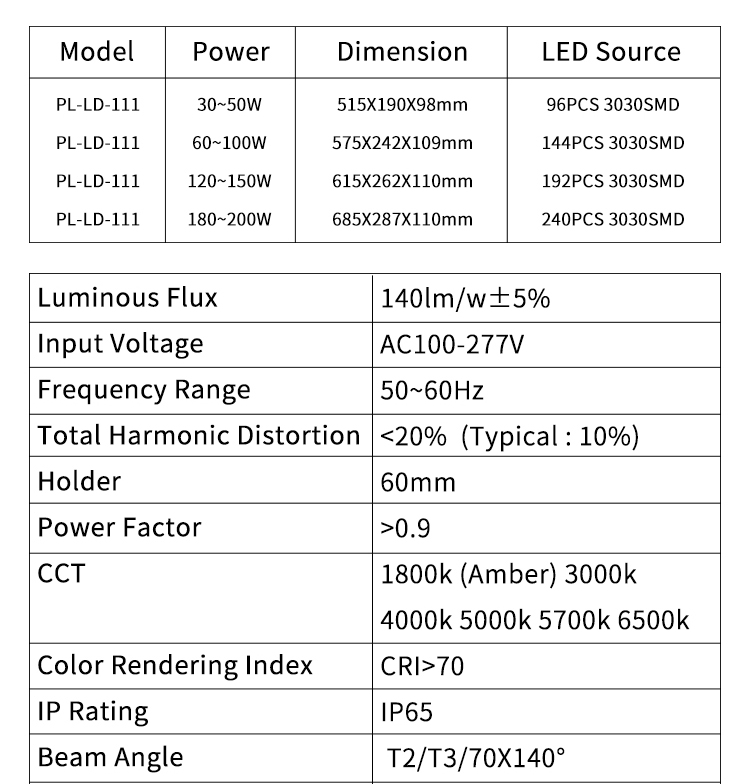

1.  Data sheet:

2. Model	PL-LD-111

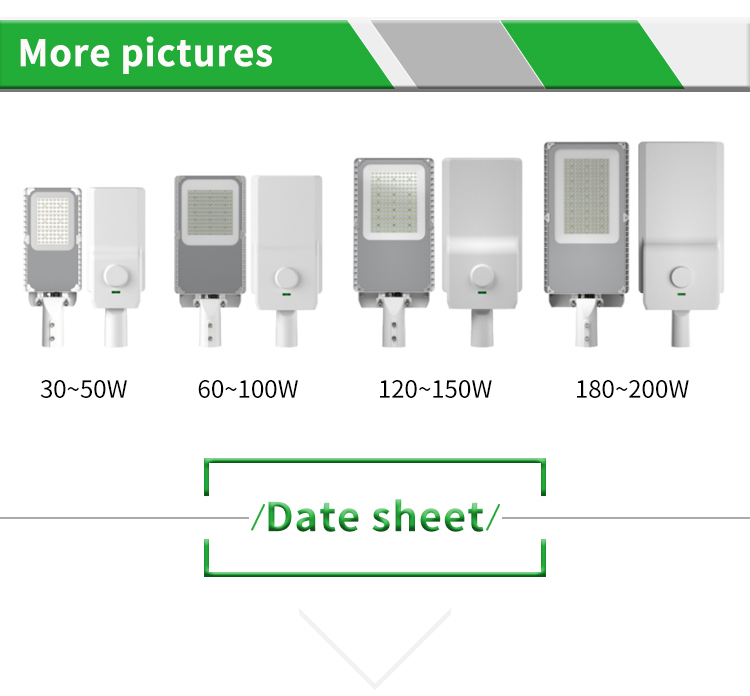

   Power	30~50W	60~100W	120~150W	180~200W

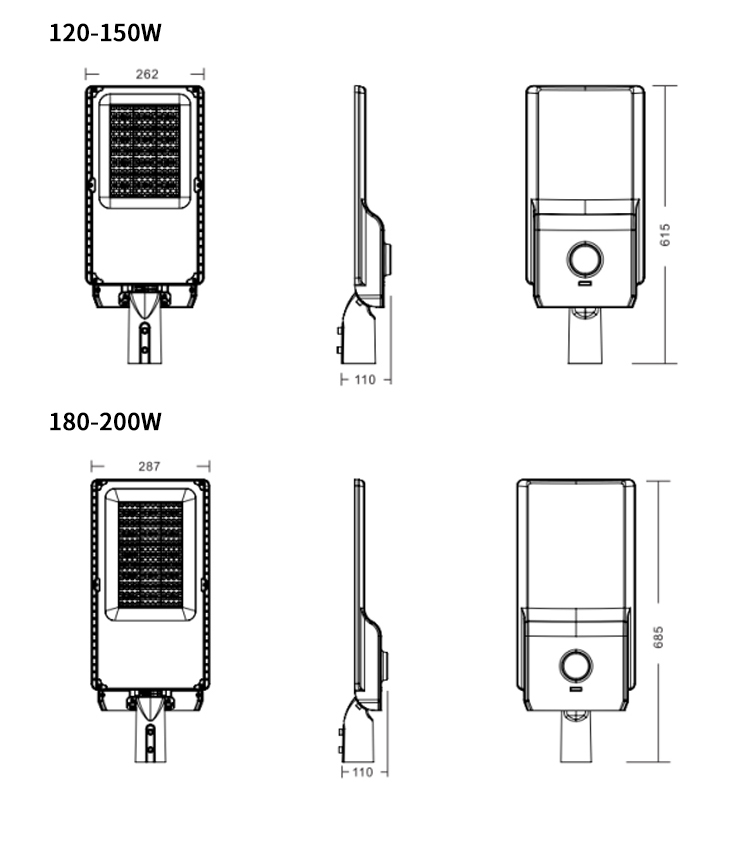

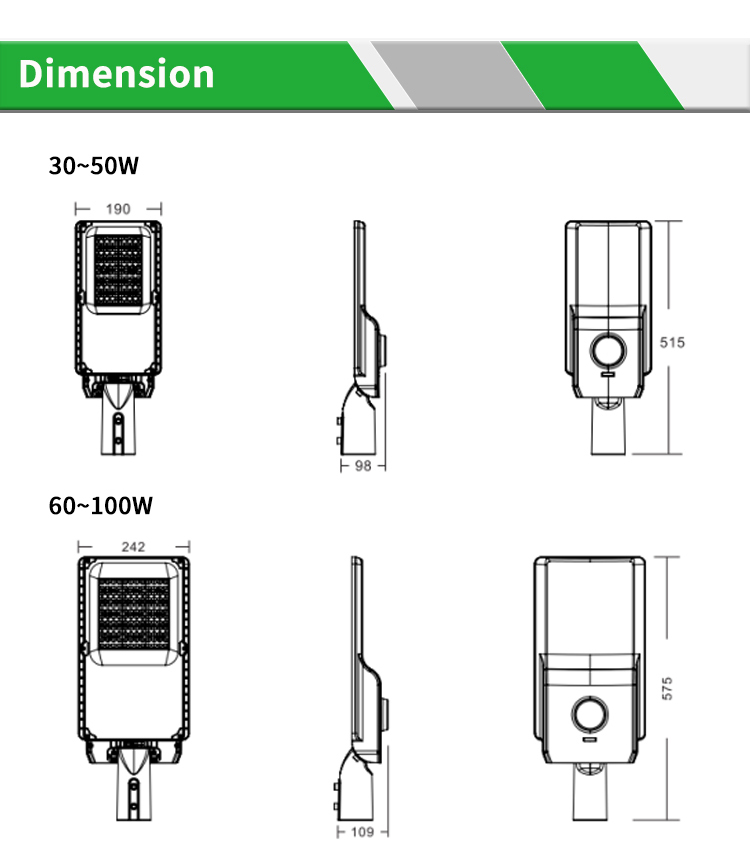

   Dimension	515X190X98mm	575X242X109mm	615X262X110mm	685X287X110mm
   Luminous Flux	140lm/w±5%
   LED Source	96PCS Lumileds 3030SMD	144PCS Lumileds 3030SMD	192PCS Lumileds 3030SMD	240PCS Lumileds 3030SMD
   Input Voltage	AC100-277V
   Frequency Range	50~60Hz
   Total Harmonic Distortion	<20%  (Typical : 10%)
   Holder	60mm
   Color Temperature	2700K-6500K
   Color Rendering Index	CRI>70
   IP Rating	IP65

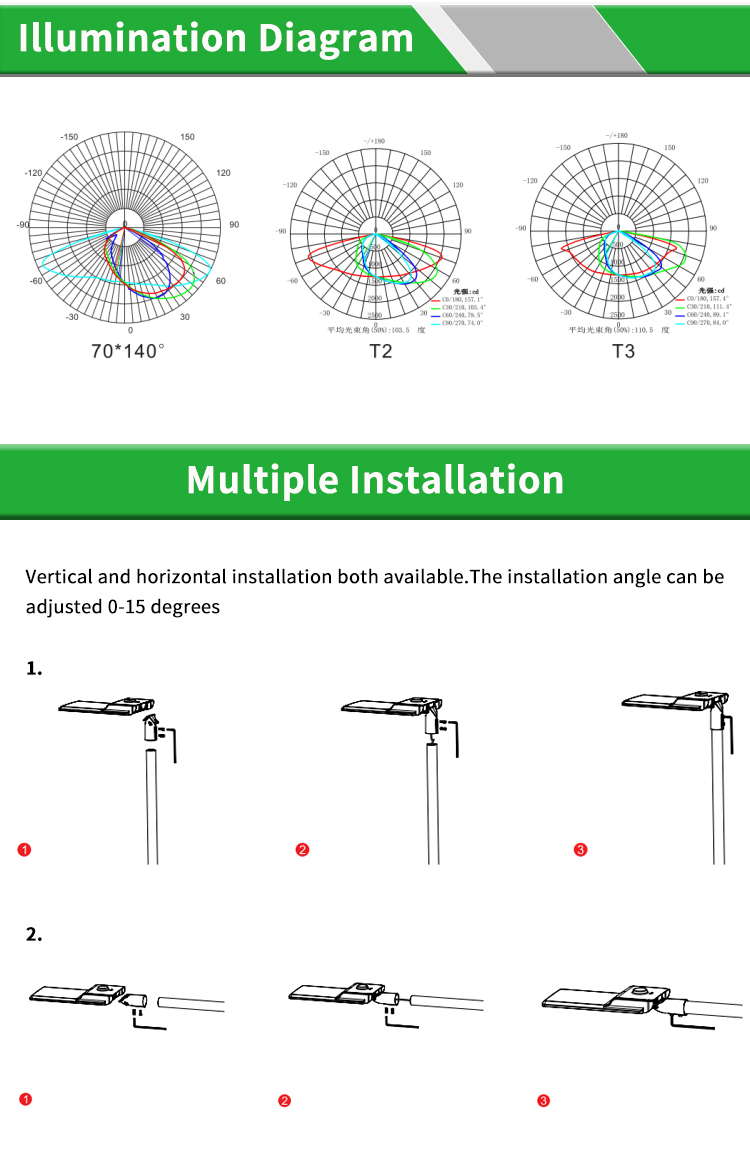

   Beam Angle	T2/T3/70X140°

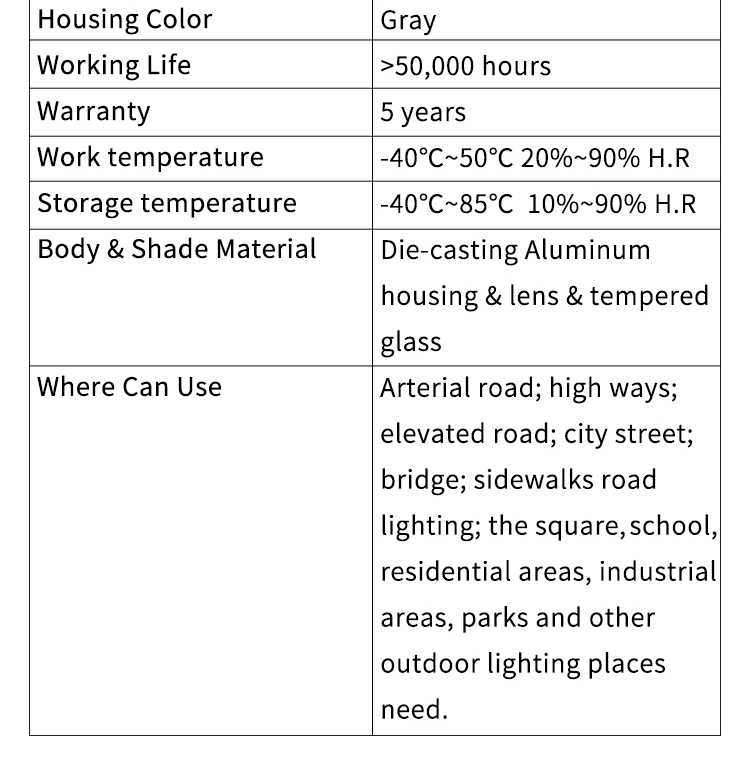

   Housing Color	Gray
   Working Life	>50,000 hours
   Warranty	5 years
   Working Environment	-30ºC~+50ºC, 10%~90% RH

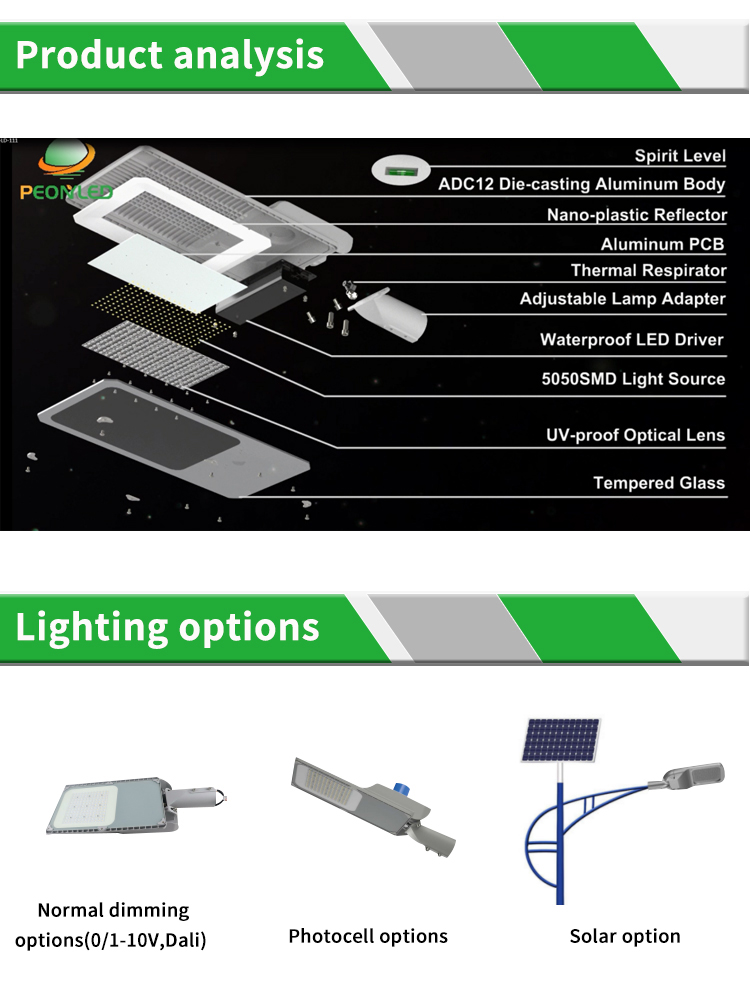

   Body & Shade Material	Die-casting Aluminum housing & lens & tempered glass

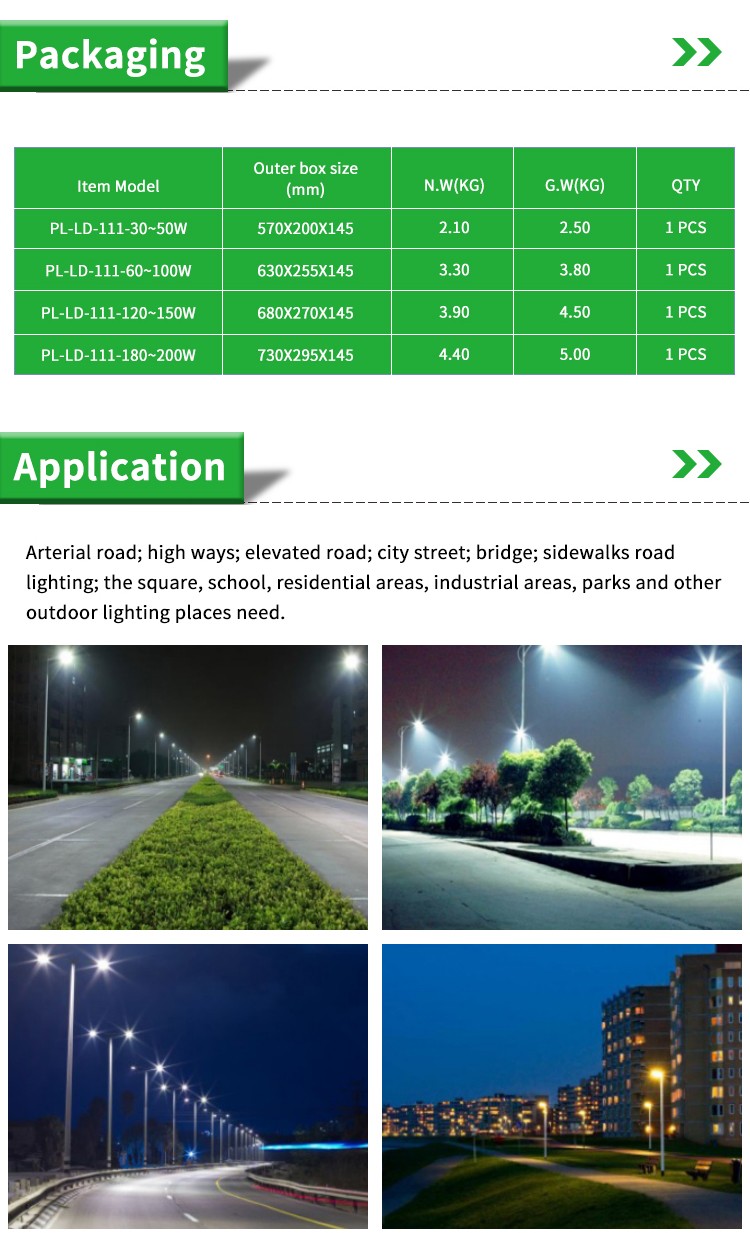

   Where Can Use	Arterial road; high ways; elevated road; city street; bridge; sidewalks road lighting; the square, school, residential areas, industrial areas, parks and other outdoor lighting places need.

FAQ



Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
