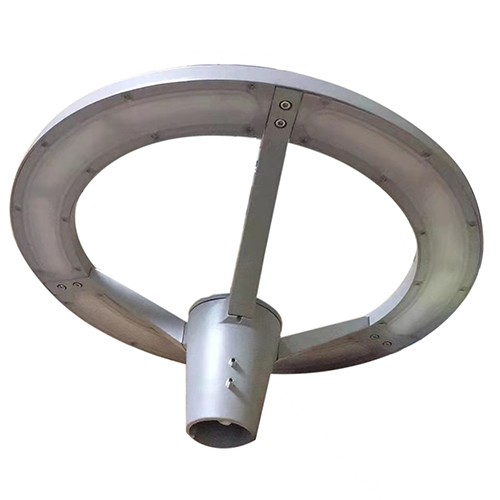

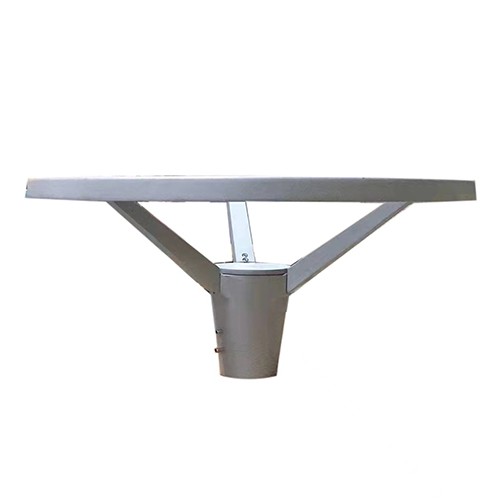

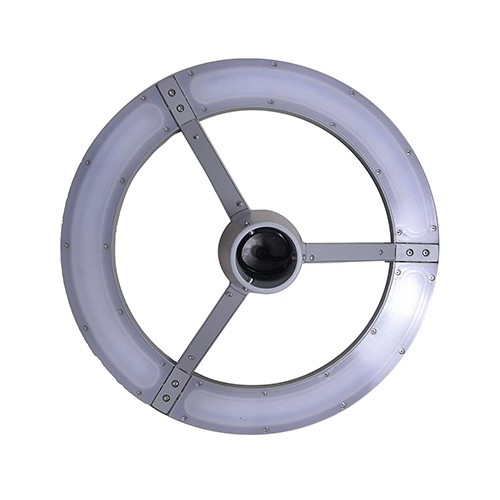

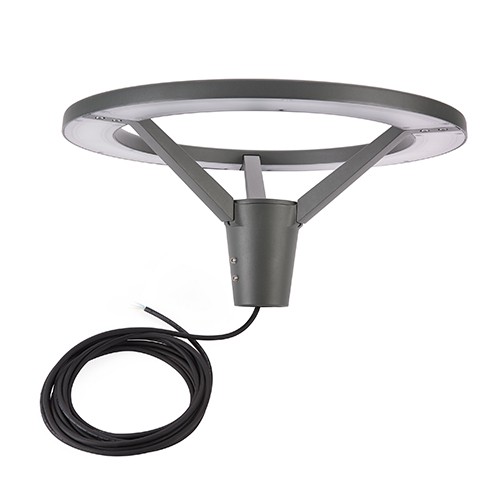

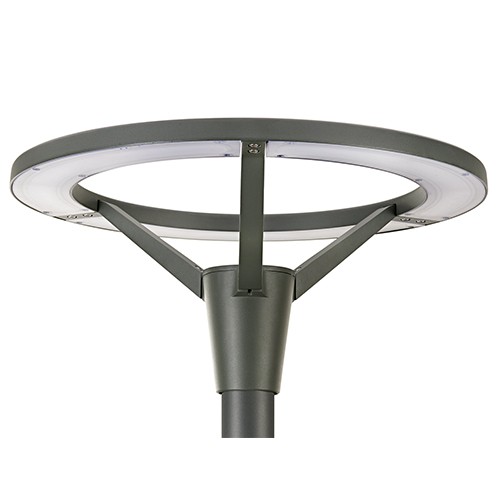

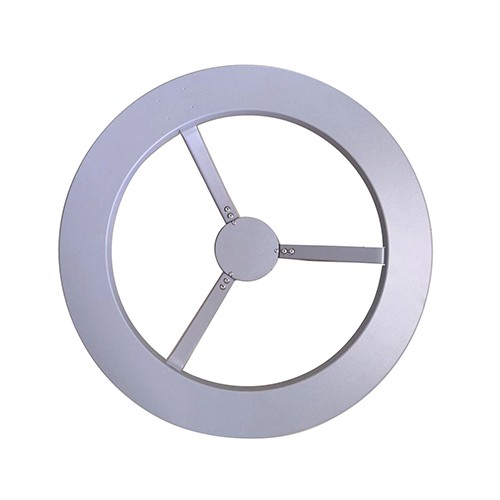

Led garden light (PL-GL-029)

Input Votage:AC90V-305V
Material: die-cast aluminium
IP grade:IP66 Led chip:Lumileds 3030smd
Working temperature:-40-50°C
Beam angle:120°
luminous efficiency:100LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

EMAIL

Catenary LED Aluminium Street Lamp Post 30W 40W 50W 60W Post Top LED Garden Lights

PL-GL-029 海报 (1).jpg


PL-GL029  series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology,

complemented by a simply,

yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths,

parking lots, parks, highways, etc.

Light Data-Sheet
Model NoPL-GL-029

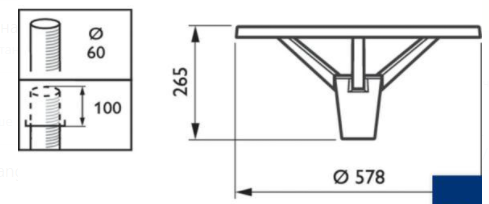

SizeD578X265mm
HolderΦ60/76mm
Watts30-60W
Luminous100lm/W±5%
LED Qty60PCS 3030
MaterialAluminum, PC
Kelvin2700-6500K
CRI>70Ra
Lens Angle120°
Driver optionInventronics, Meanwell or Peony brand
Input Voltage100-277Vac; 50/60Hz; PF>0.95
Lifetime>50, 000hours
IP LevelIP65
Package595X595X275mm
N.W5.00KG
G.W6.00KG

More information, please contact our sales directly.

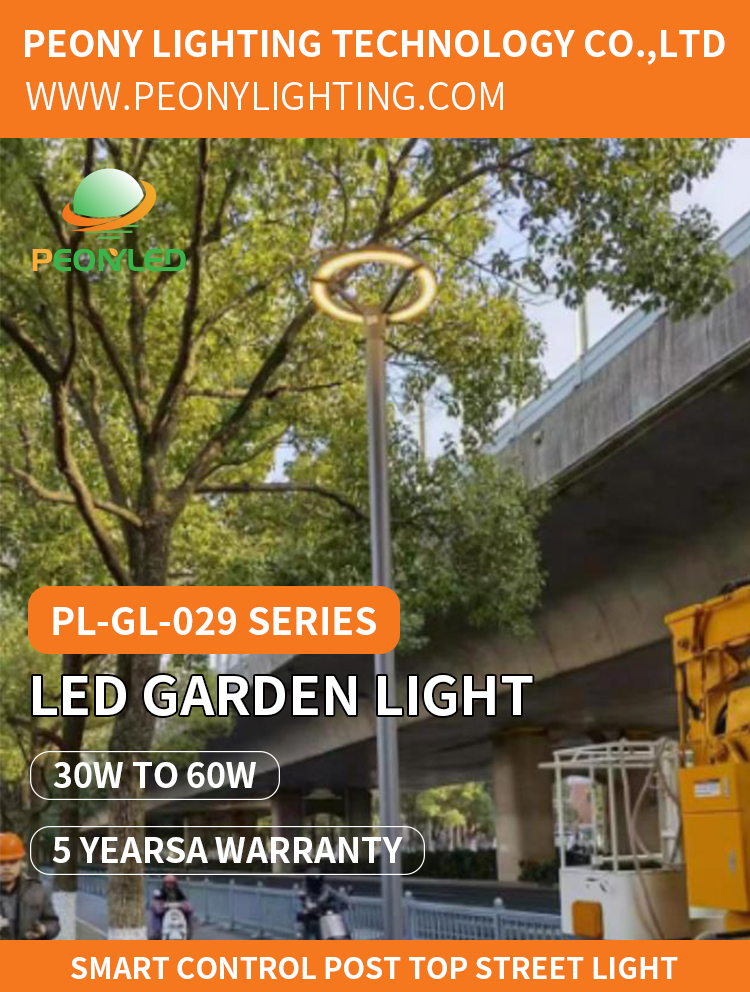

PL-GL-029 海报 (2).jpg

FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
