Input Votage:AC90V-305V
Material: die-cast aluminium
IP grade:IP66 Led chip:Lumileds 3030smd
Working temperature:-40-50°C
Beam angle:120°/113X97°/TI/TII/TIII/TIV/TV
luminous efficiency:130LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

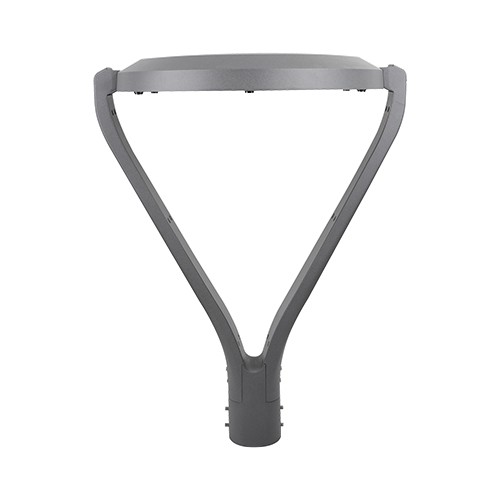

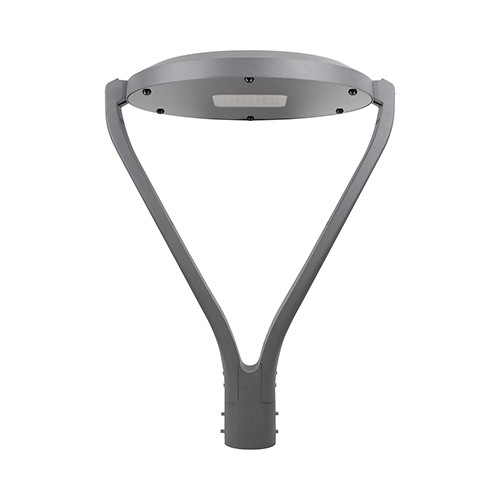

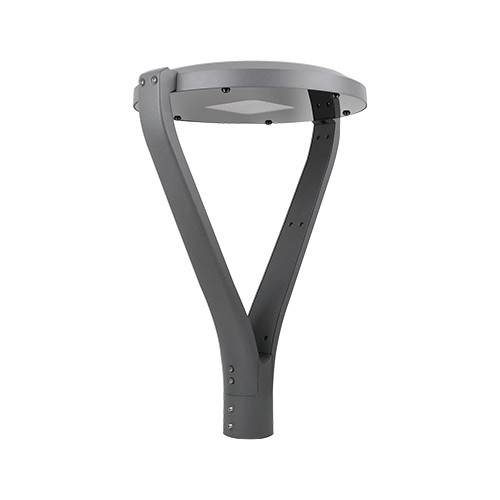

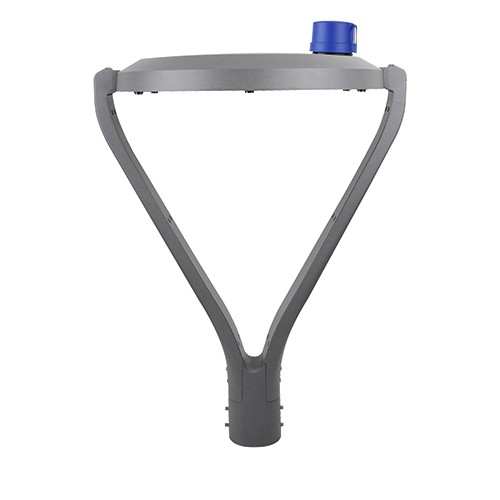

PL-GL028B series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology,
complemented by a simply,
yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths,
parking lots, parks, highways, etc.
Light Data-Sheet | |||||
Model No | PL-GL-028B | ||||

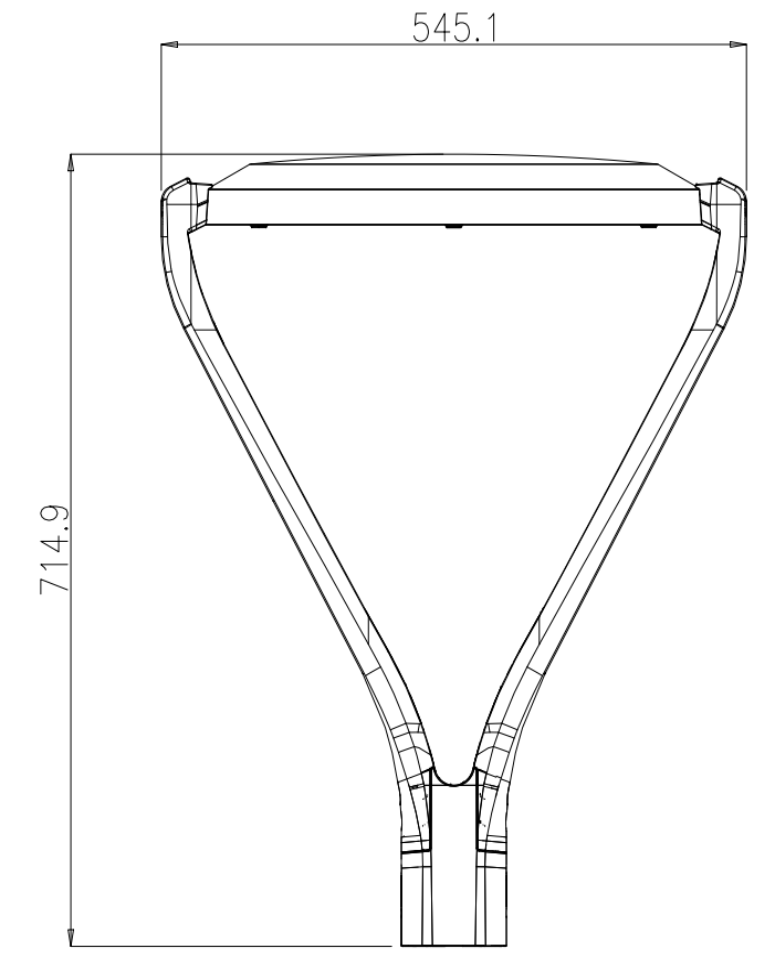

Size | D545X715mm | ||||
Holder | Φ76mm | ||||
Watts | 30-40W | 50-60W | 70-80W | 100-120W | 150W |
Luminous | 120-130lm/W | ||||
LED Qty | 64PCS 3030SMD | 96PCS 3030SMD | 108PCS 3030SMD | 144PCS 3030SMD | 216PCS 3030SMD |
Material | Aluminum & PC & Tempered glass | ||||
Kelvin | 2700-6500K | ||||
CRI | >70Ra | ||||
Lens Angle | 120°/113X97°/TI/TII/TIII/TIV/TV | ||||
Driver option | Inventronics, Meanwell or Specified brand | ||||
Input Voltage | 90-305Vac; 50/60Hz; PF>0.95 | ||||
Lifetime | >50, 000hours | ||||
IP/IK Level | IP66/IK09 | ||||
Package | 550*520*245mm | ||||
N.W | 6.20KG | 6.40KG | 6.70KG | 7.00KG | 7.00KG |
G.W | 7.00KG | 7.20KG | 7.50KG | 7.80KG | 7.80KG |
More information, please contact our sales directly.
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
