Led garden light (PL-GL-028A)

Input Votage:AC90V-305V
Material: die-cast aluminium
IP grade:IP66 Led chip:Lumileds 3030smd
Working temperature:-40-50°C
Beam angle:120°/113X97°/TI/TII/TIII/TIV/TV
luminous efficiency:130LM/W±5% PF:> 0.95
CRI: Ra>70/80
CCT:2700-6500K
Life:50000H

EMAIL

Home Outdoor LED Luminaria Fixture Aluminum Housing Outdoor IP66 Waterproof 30W Top Post Light for Hotel


PL-GL028A series led garden light is a state-of-the-art luminaries that includes the latest advances of led technology,

complemented by a simply,

yet elegant ergonomic design. Perfect for installing on 3-8m poles both wide and narrow bicycle paths,

parking lots, parks, highways, etc.

Light Data-Sheet
Model NoPL-GL-028A

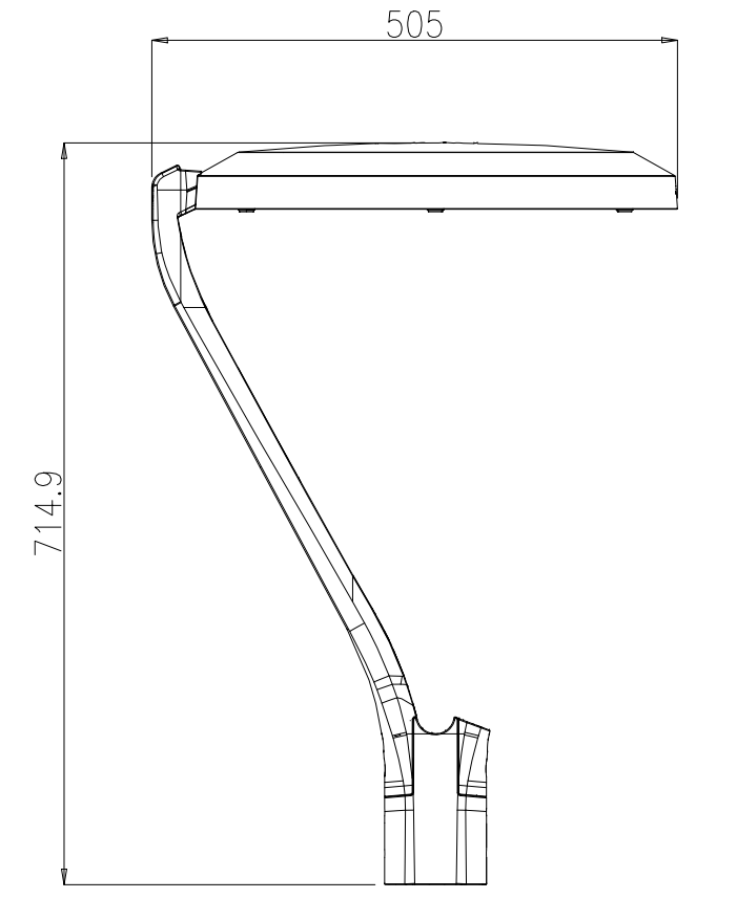

SizeD545X715mm
HolderΦ76mm
Watts30-40W50-60W70-80W100-120W150W
Luminous120-130lm/W
LED Qty64PCS 3030SMD96PCS 3030SMD108PCS 3030SMD144PCS 3030SMD216PCS 3030SMD
MaterialAluminum & PC & Tempered glass
Kelvin2700-6500K
CRI>70Ra
Lens Angle120°/113X97°/TI/TII/TIII/TIV/TV
Driver optionInventronics, Meanwell or Specified brand
Input Voltage90-305Vac; 50/60Hz; PF>0.95
Lifetime>50, 000hours
IP/IK LevelIP66/IK09
Package550*520*245mm
N.W6.20KG6.40KG6.70KG7.00KG7.00KG
G.W7.00KG7.20KG7.50KG7.80KG7.80KG
More information, please contact our sales directly.

PL-GL-028A (1).png

FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
