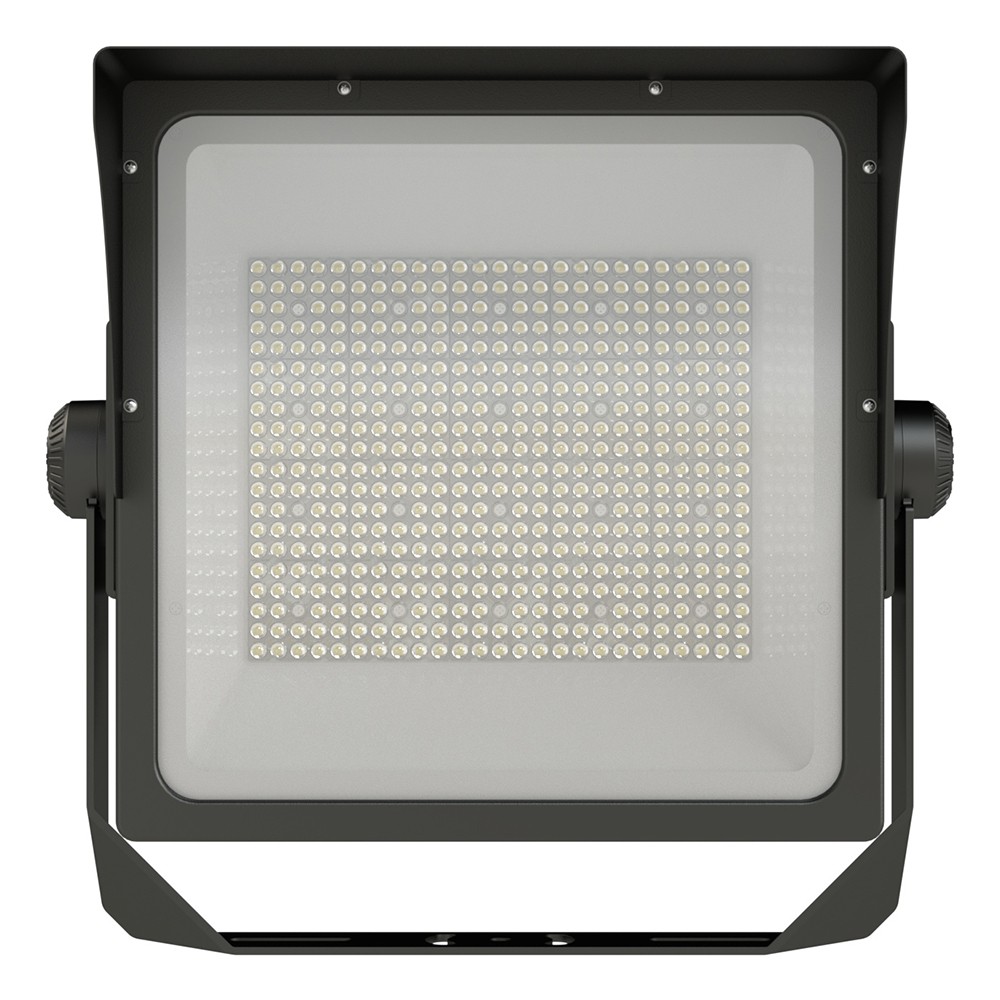

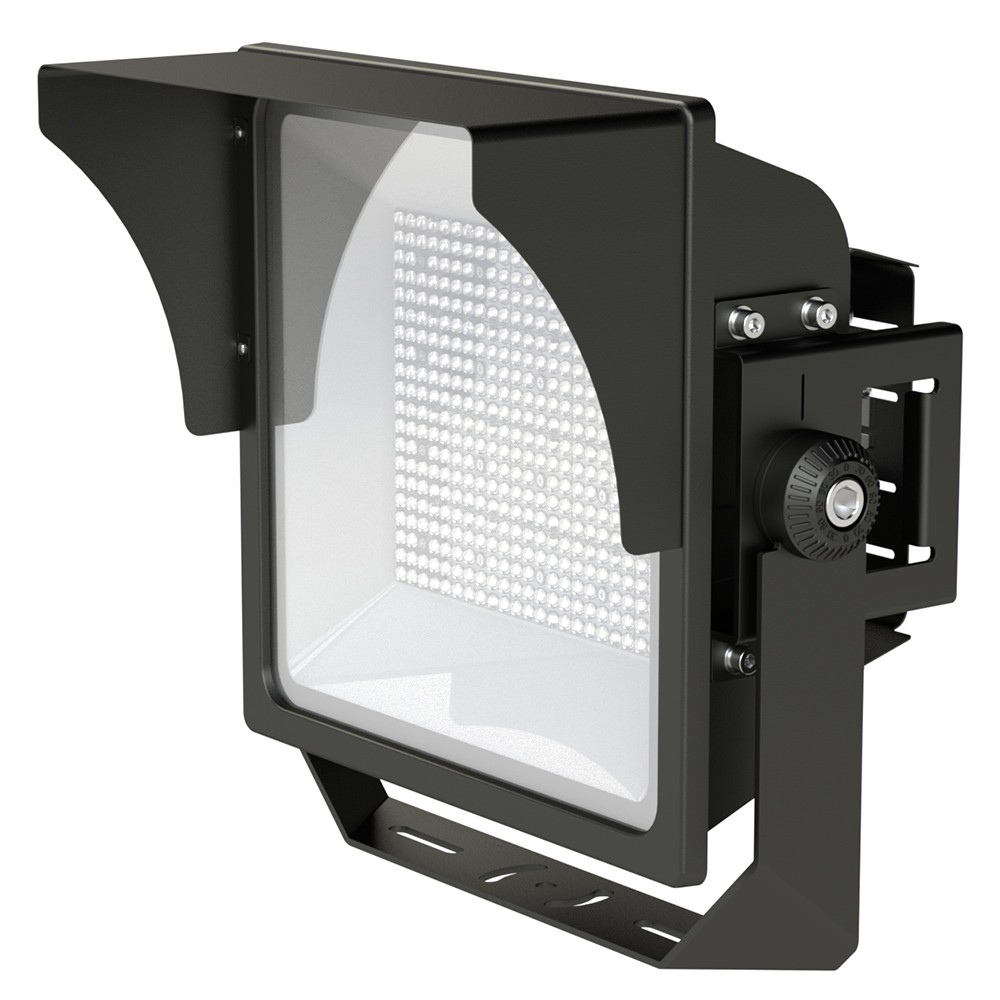

Led sports light (PL-SD-039U)

LEDs & Driver:lumileds +meanwell/inventronics
Input Voltage:AC90-305V
CCT 2200K,3000K,4000K,5000K,5700K,6500K
CRI >70/80
Power Factor:>0.9
Operating Temperature:-30°C--50°C
IP&IK Degree:IP65/IP67/IK08
Certification:TUV-CE(EMC.LVD, RoHS)/SAA/CB
Surge Protection:6-10/20KV

EMAIL

up to 150lm/W LED High Mast Flood Light 5 Year Warranty IP66 240W to 800W Max LED Flood Light


Advantages of LED stadium sports light

  • The best adjustable flood light for project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.

  • The constant current driver, very good on anti-surge, stable performance, 5 years warranty.

  • Use the new generation lumileds smd as Light Source, with the features of high brightness, low light decay, long lifespan.

  • Provide a variety of beam angle options for different application scenarios.

  • All sets of IES files support, Dialux program support.

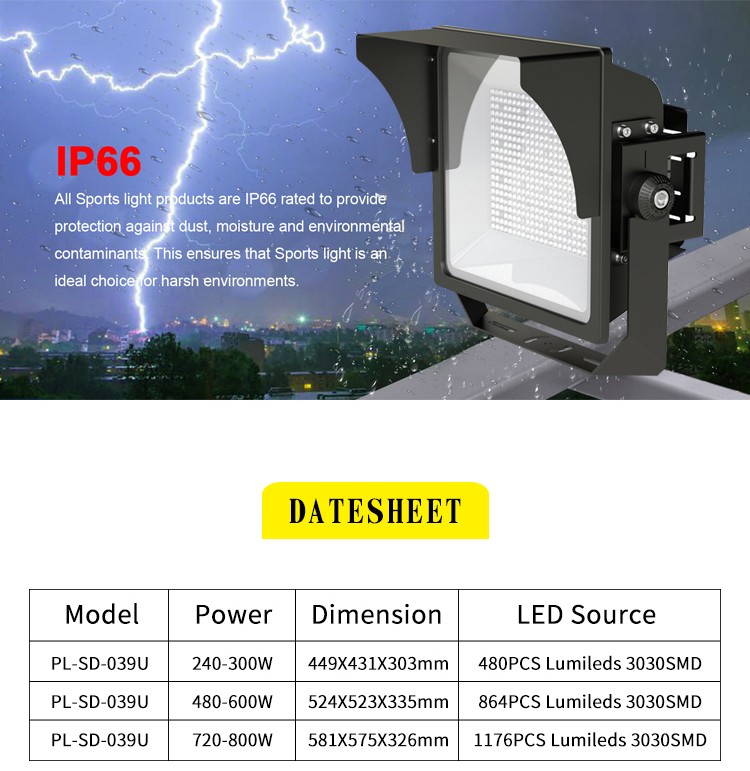

  • Waterproof IP66, outdoor use freely.

  • Anti-glare cover and explosion-proof net can be added.

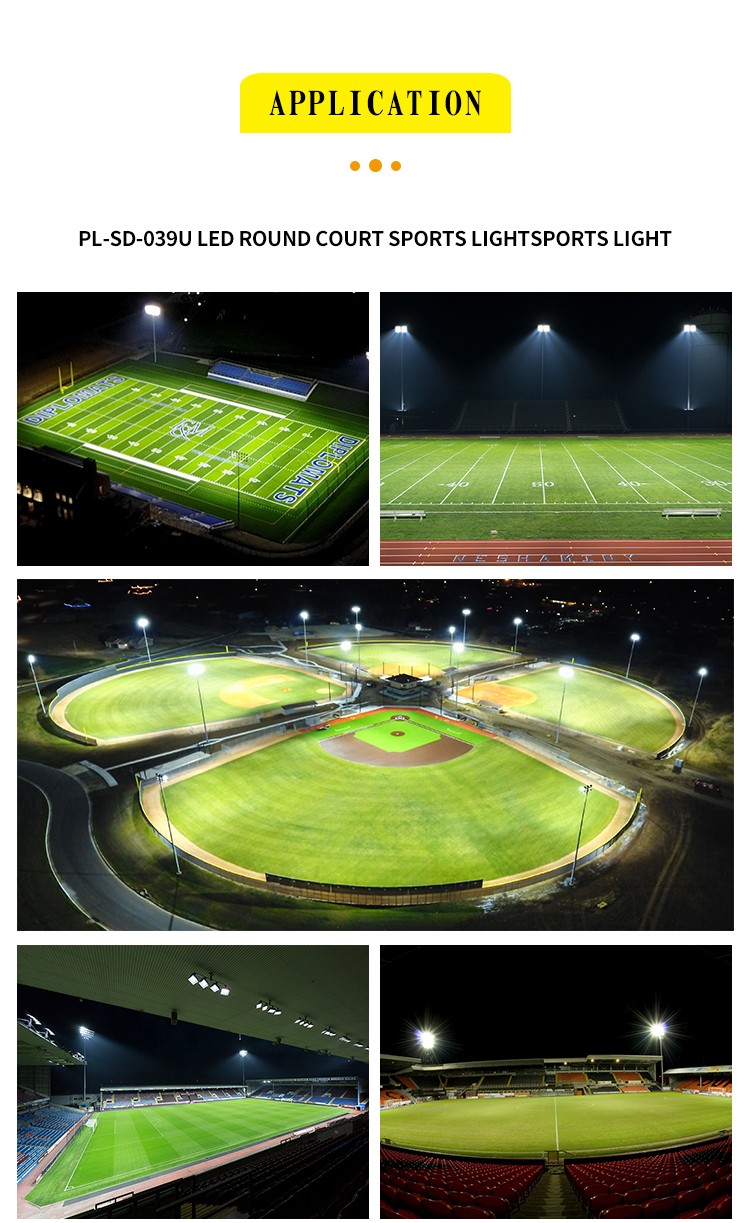

Application

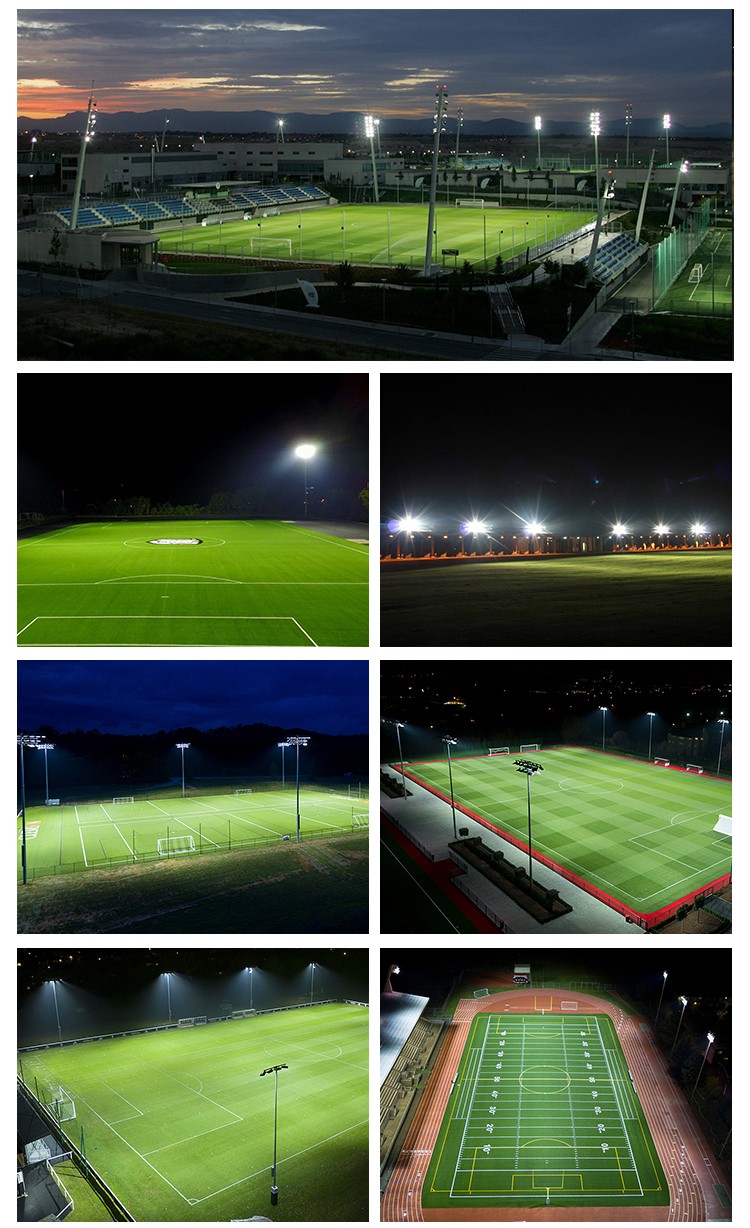

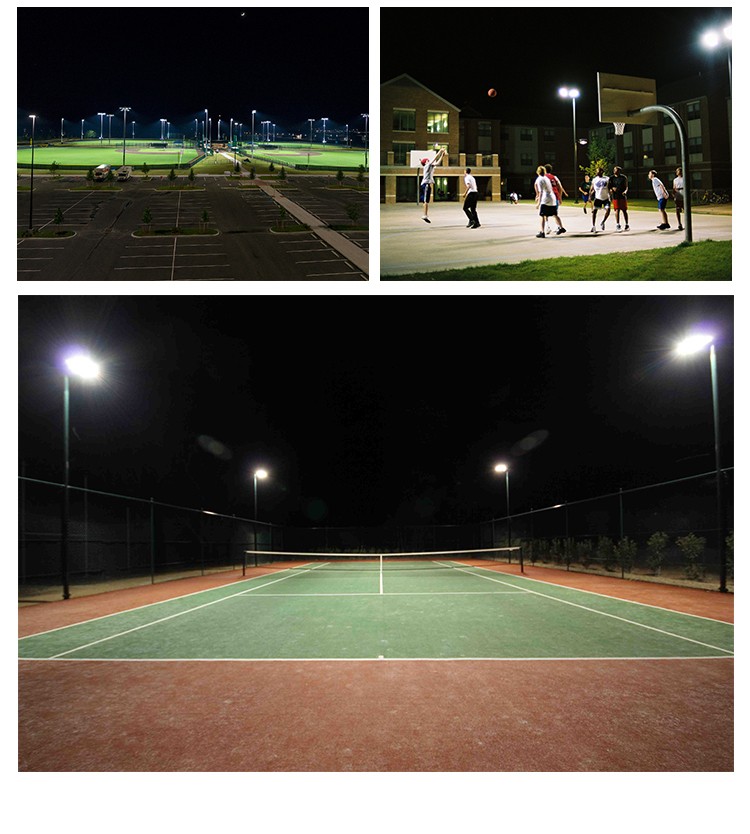

Applicable for Building external wall,square,garden,warehouse,tunnel,etc. Below are some cases.

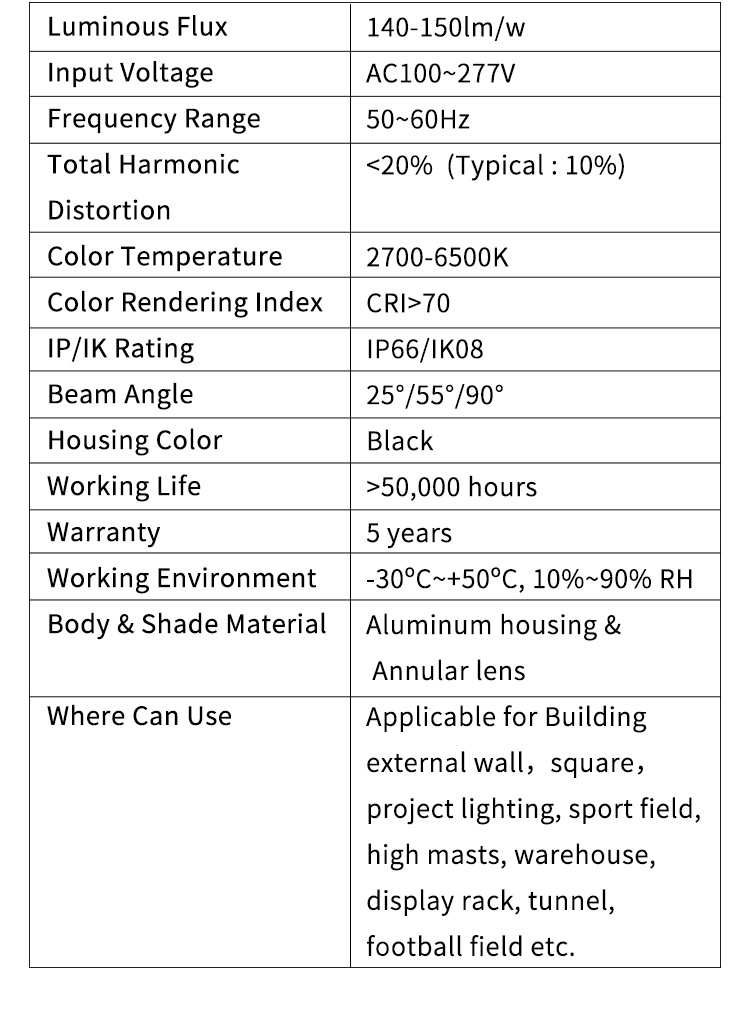

Datesheet

ModelPL-SD-039U
Power240-300W480-600W720-800W

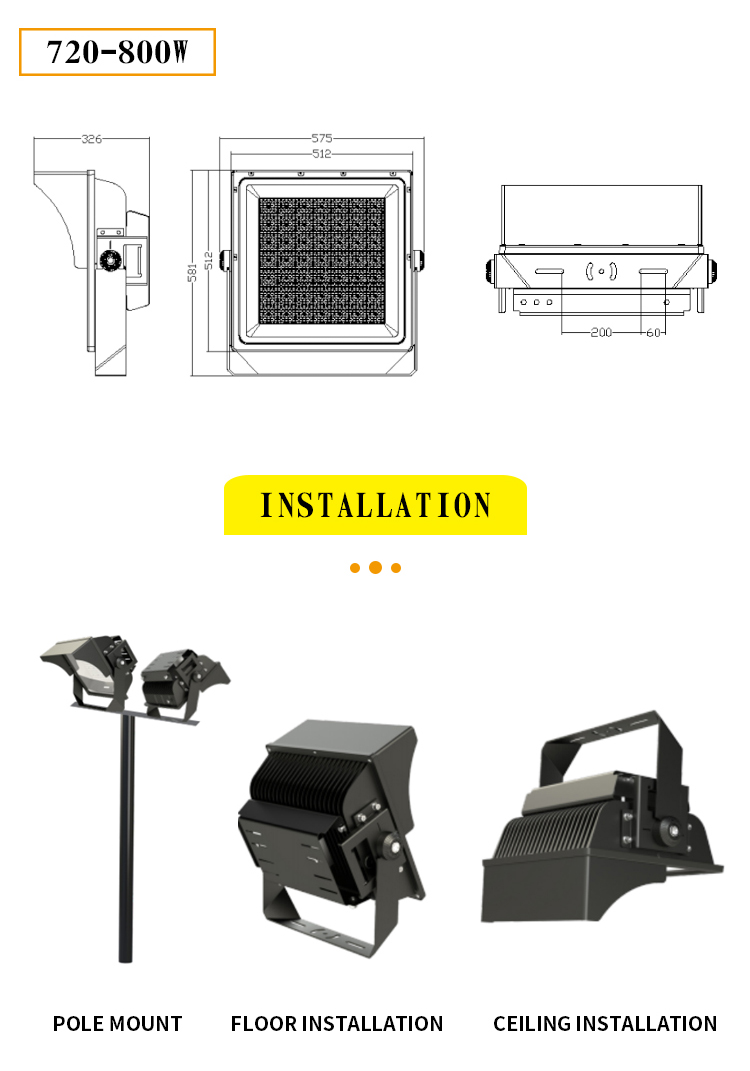

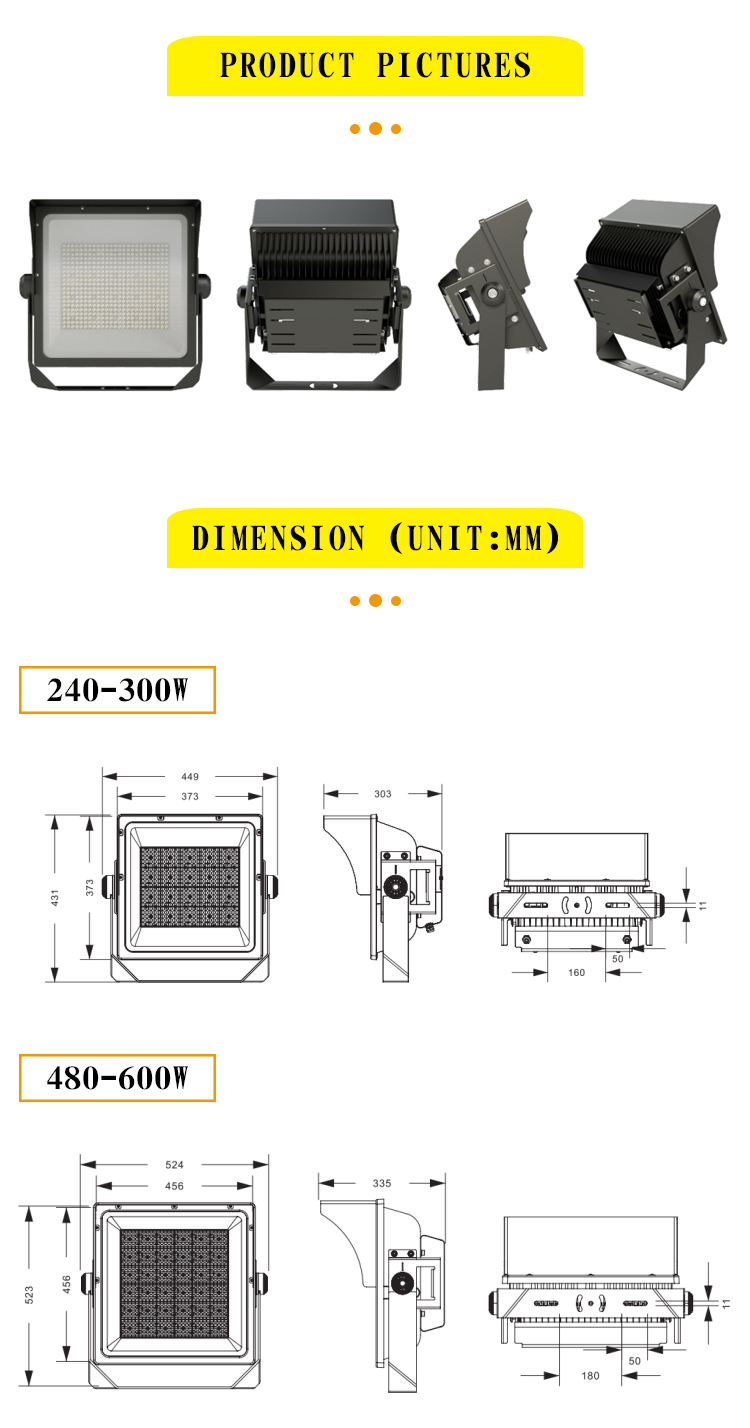

Dimension449X431X303mm  524X523X335mm 581X575X326mm
Luminous Flux140-150lm/w
LED Source480PCS Lumileds 3030864PCS Lumileds 30301176PCS Lumileds 3030
Input VoltageAC100~277V
Frequency Range50~60Hz
Total Harmonic Distortion<20%  (Typical : 10%)
Color Temperature2700-6500K
Color Rendering IndexCRI>70
IP/IK RatingIP66/IK08

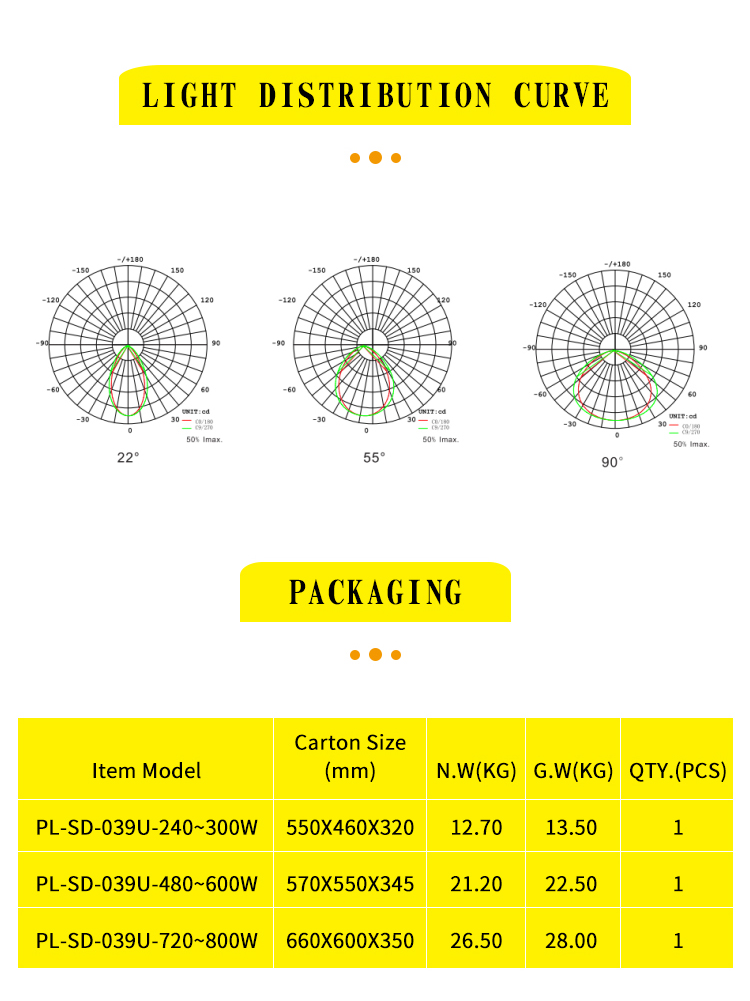

Beam Angle25°/55°/9
Housing ColorBlack
Working Life>50,000 hours

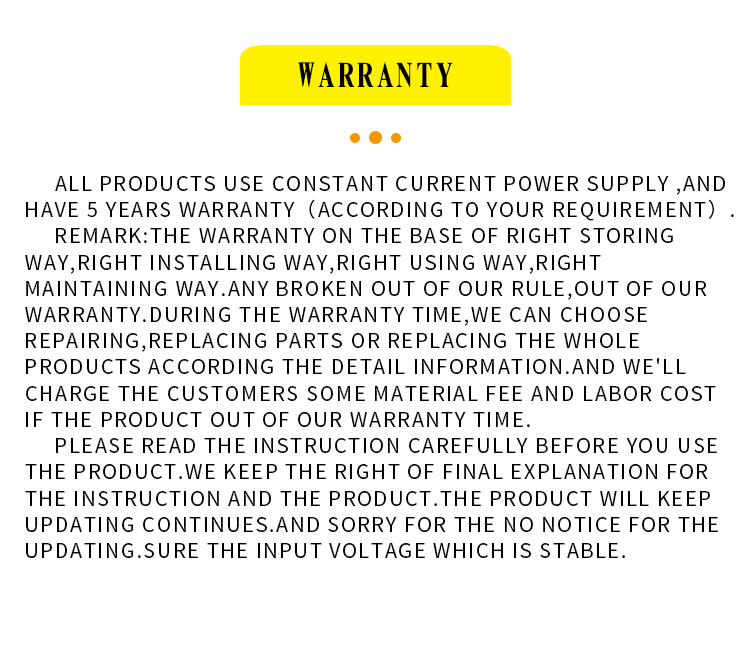

Warranty5 years
Working Environment-30ºC~+50ºC, 10%~90% RH

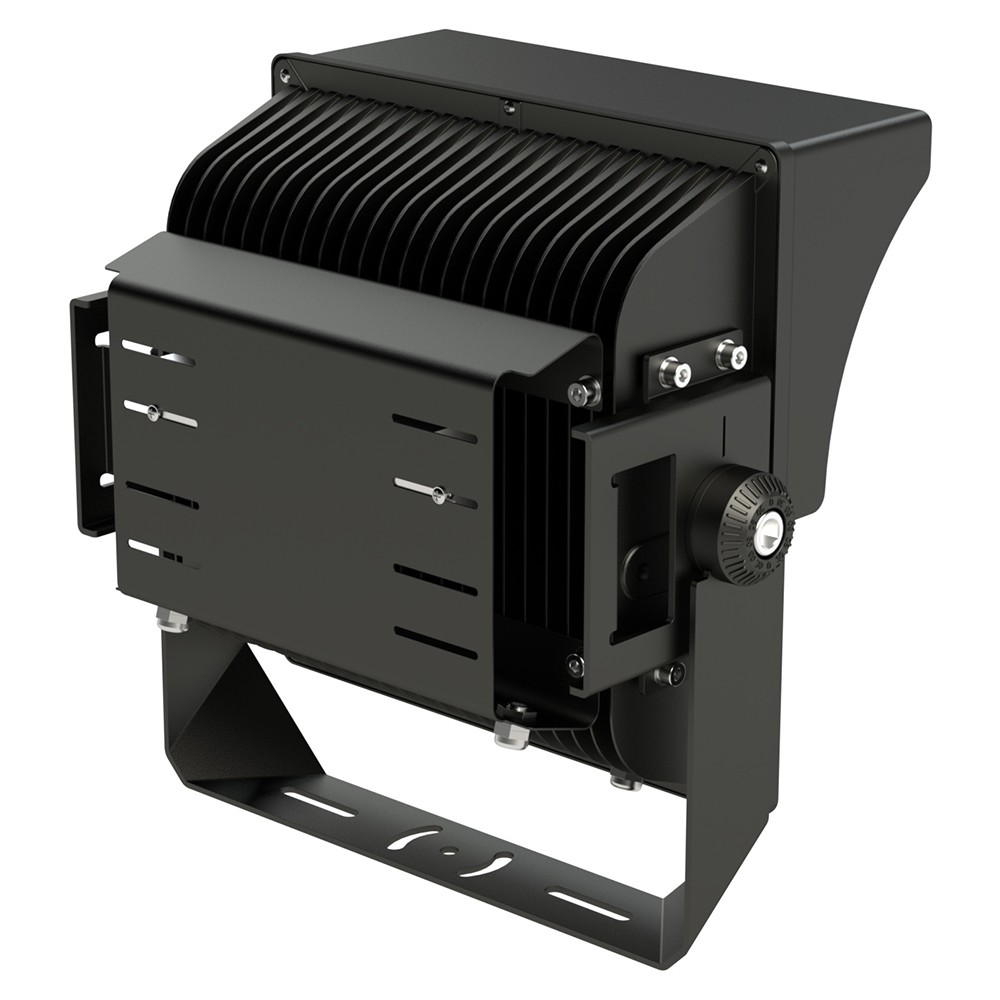

Body & Shade Material Aluminum housing & Annular lens
Where Can UseApplicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc.




FAQ




Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=50,000hours. Meanwhile it can also be 80,000 hours lifespan if it adopt very good material.



Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.



Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.



Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.



Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
